Dual Schmitt Trigger Buffer, 74LVC2G17XN6G/TR Replace SN74LVC2G17.
74LVC2G17
74LVC2G17.pdf
74LVC2G17.pdfFEATURES
• Wide Operating Voltage Range: 1.65V to 5.5V
• Inputs Accept Voltages up to 5.5V
• +24mA/-24mA Output Current at VCC = 3.0V
• Low Power Dissipation: ICC = 2µA (MAX)
• Propagation Delay: tPD = 7.5ns (TYP) at VCC = 3.3V
• Support Partial Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-6, SOT-23-6,
XTDFN-1×1-6L and UTDFN-1.45×1-6AL Packages

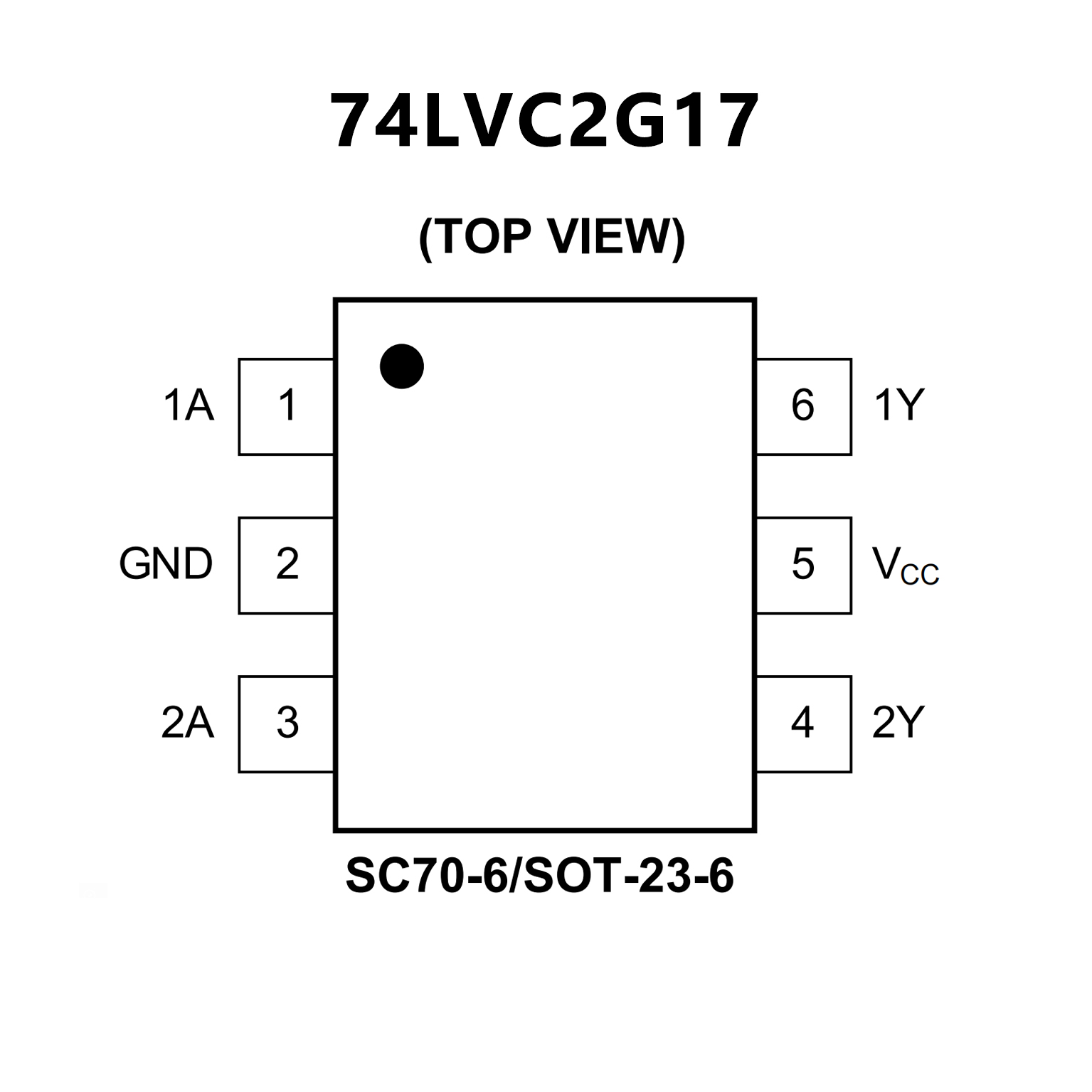

PIN CONFIGUTION
优势替代
FEATURES
• Schmitt-Trigger inputs provide hysteresis
• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.4 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
2 V at VCC = 3.3 V, TA = 25°C
• off Supports Live Insertion, Partial-
Power-Down Mode Operation and
Back-Drive Protection
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model

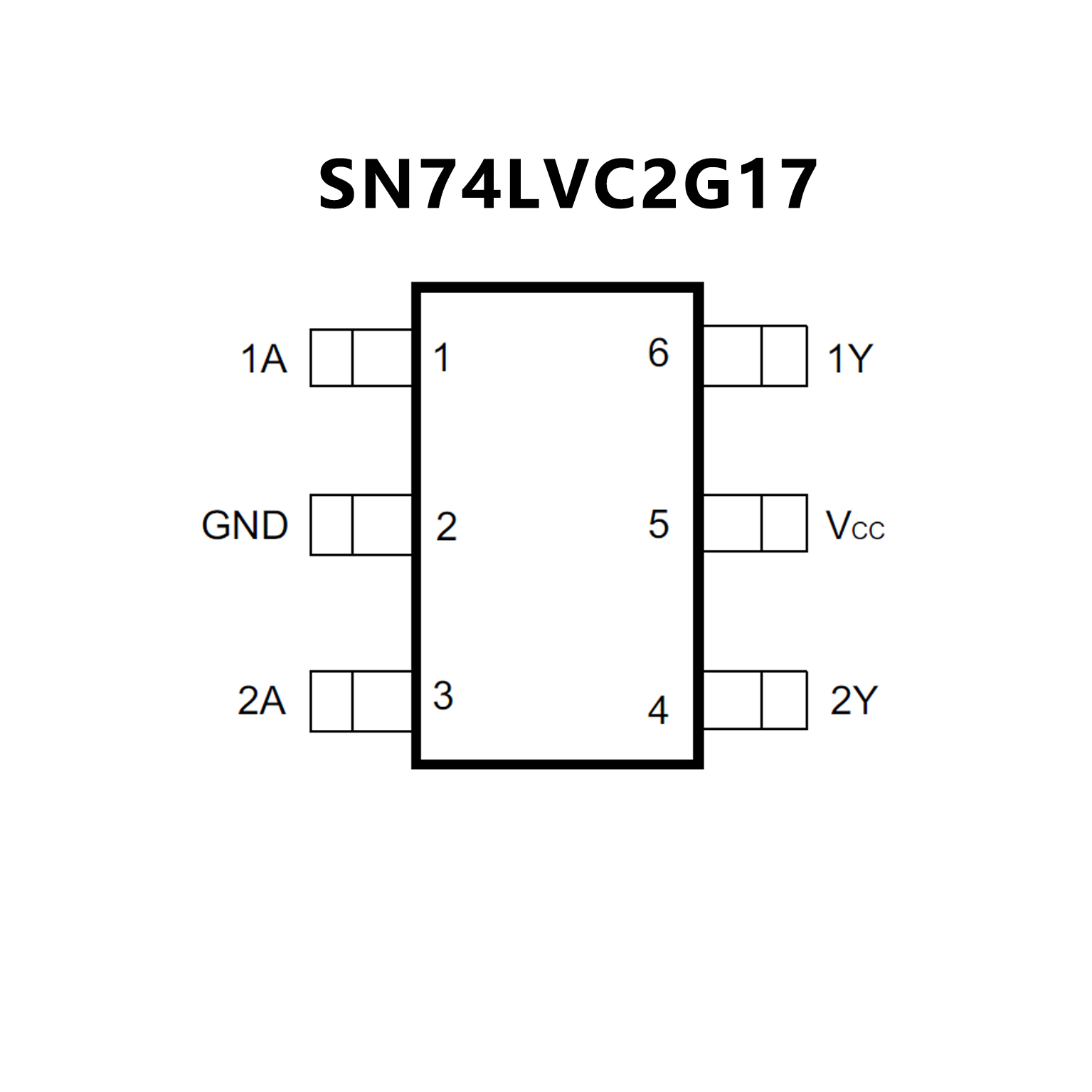

PIN CONFIGUTION
