Octal Buffer/Line Driver with 5V Tolerant Inputs/Outputs, 74LVC541A Replace 74LVC541APW.
74LVC541A
74LVC541A.pdf
74LVC541A.pdfFEATURES
• Supply Voltage Range: 1.2V to 3.6V
• Over-Voltage Tolerant Inputs up to 5.5 V
• CMOS Low Power Dissipation
• +24mA/-24mA Output Current
• Support Partial Power-down Mode
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-20 Package

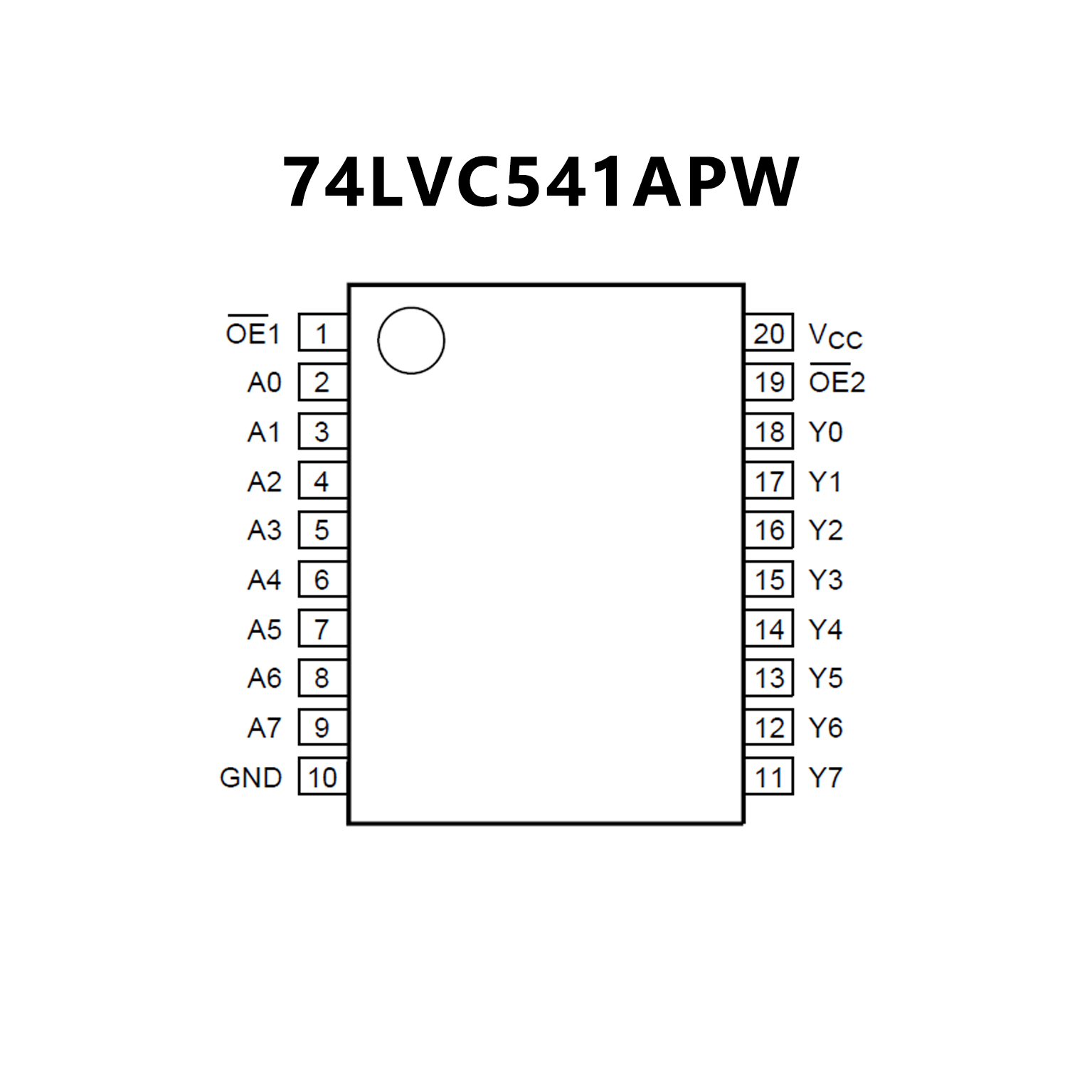

PIN CONFIGUTION
优势替代
FEATURES
• Overvoltage tolerant inputs to 5.5 V
• Wide supply voltage range from 1.2 V to 3.6 V
• CMOS low power consumption
• Direct interface with TTL levels
• IOFF circuitry provides partial Power-down mode operation
• Complies with JEDEC standard:
• JESD8-7A (1.65 V to 1.95 V)
• JESD8-5A (2.3 V to 2.7 V)
• JESD8-C/JESD36 (2.7 V to 3.6 V)
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115B exceeds 200 V
• CDM JESD22-C101E exceeds 1000 V
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

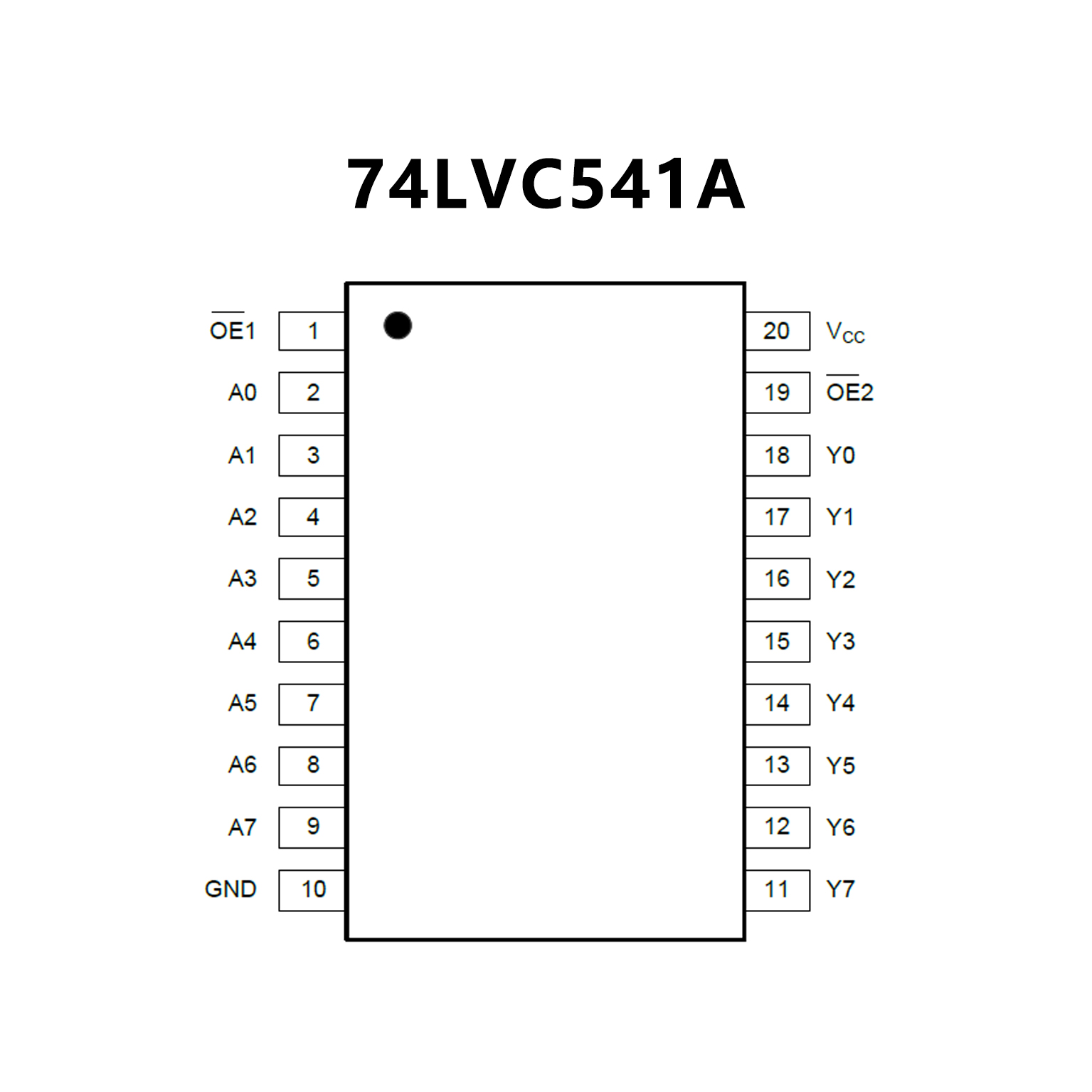

PIN CONFIGUTION
