Octal Buffer/Line Driver with 3-State Outputs,74LVCN244XS20GTR Replace 74ABT244D-623.
74LVCN244
74LVCN244.pdf
74LVCN244.pdfFEATURES
•5V Tolerant Inputs/Outputs for Interfacing with 5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
•CMOS Low-Power Consumption
•Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5.5V
• High-Impedance When VCC = 0V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-20 Packag

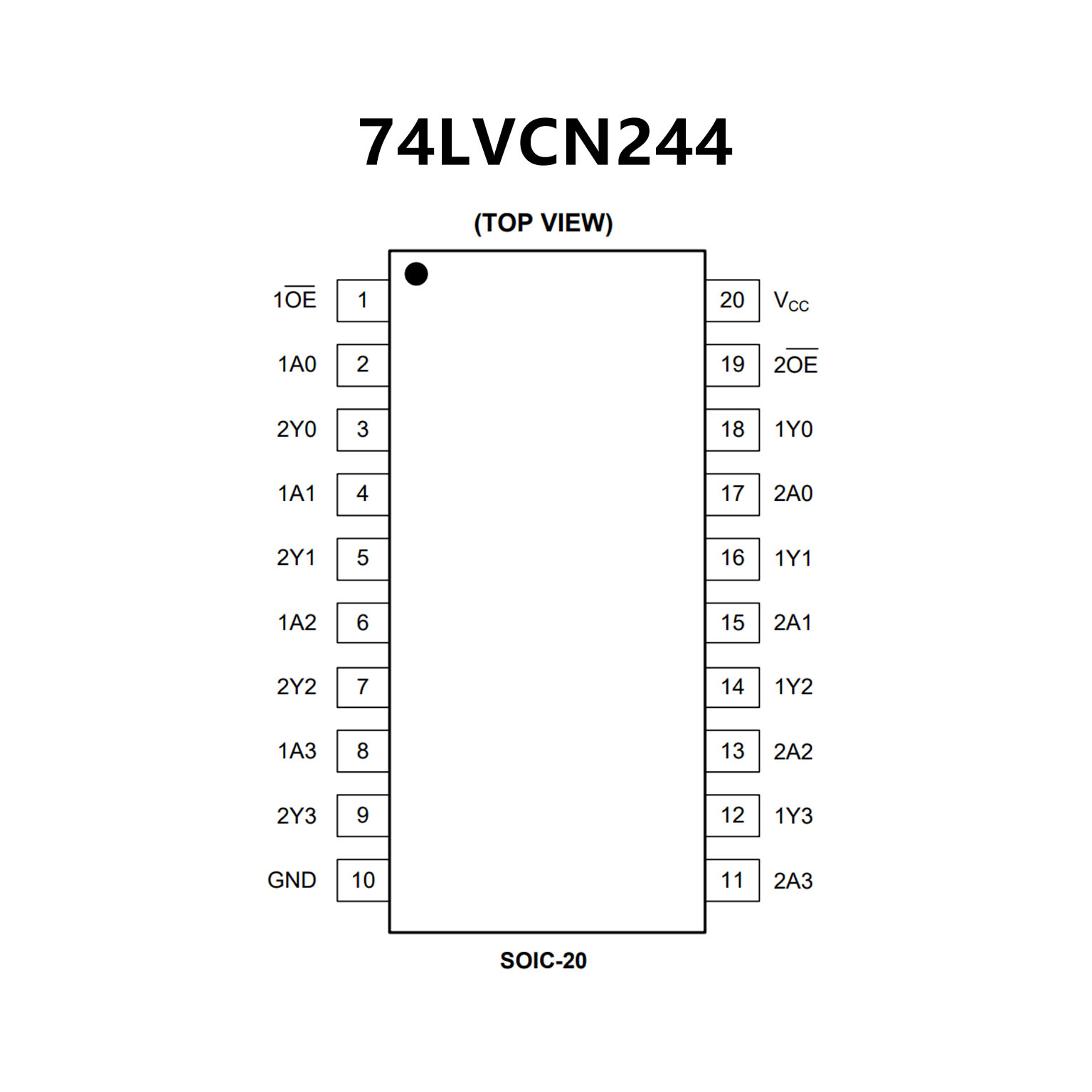

PIN CONFIGUTION
优势替代
FEATURES
• Octal bus interface
• 3-State buffers
• Output capability: +64mA/–32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
•ESD protection exceeds 2000 V per MIL STD 883
Method 3015 and 200 V per Machine Model
• Power-up 3-State
•Live insertion capacity
• Inputs are disabled during 3-State mod

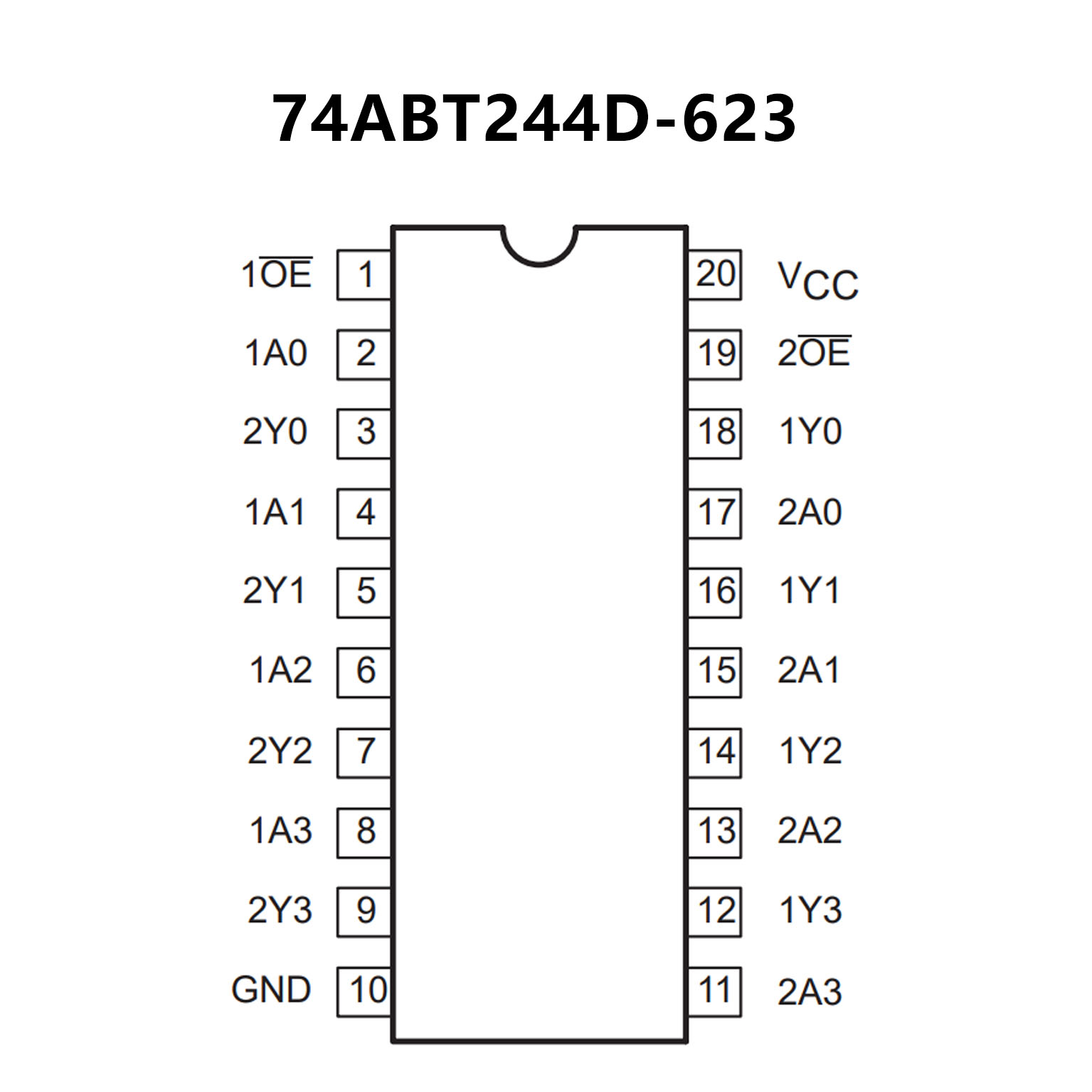

PIN CONFIGUTION
