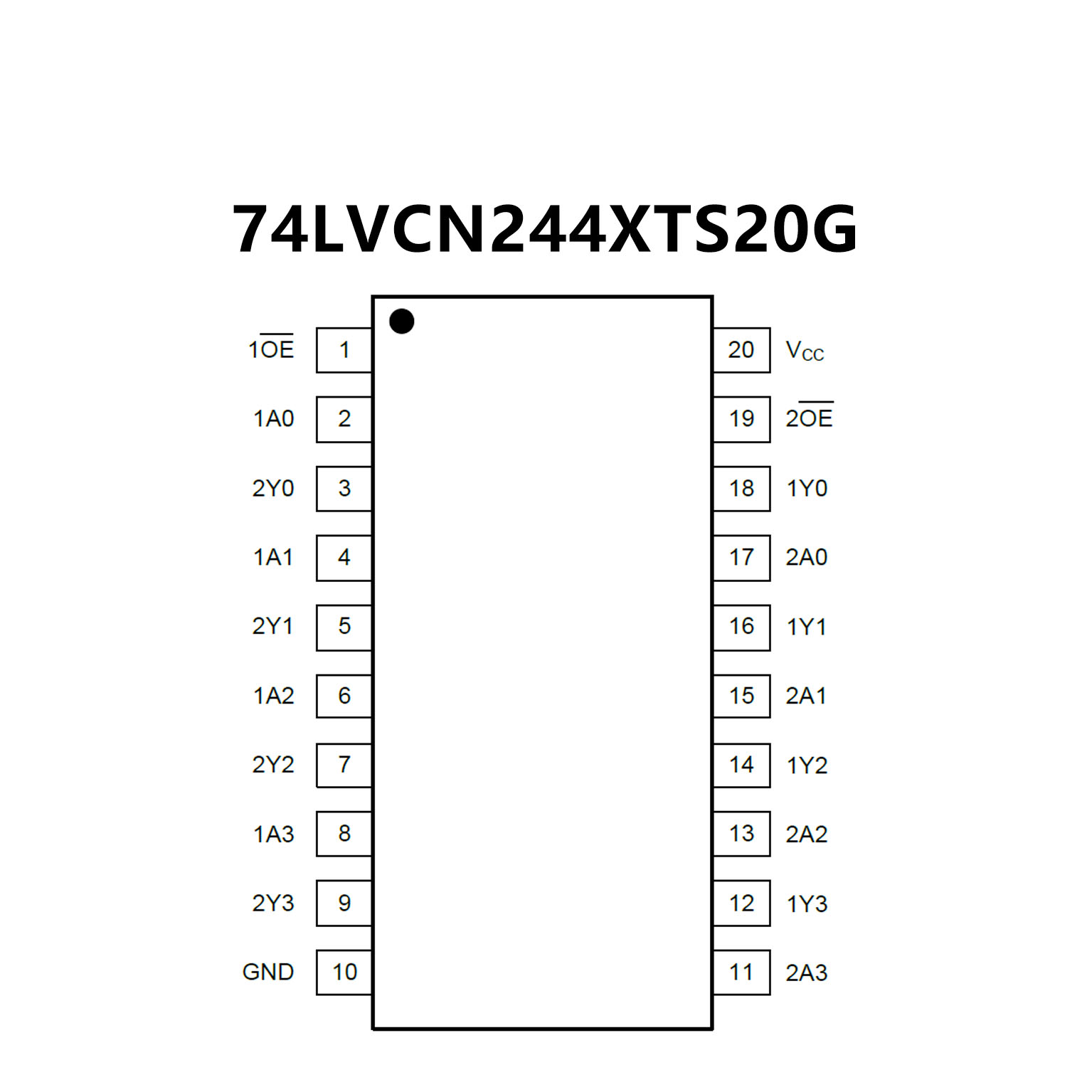

74LVCN244XTS20G.pdf• 5V Tolerant Inputs/Outputs for Interfacing with
5V Logic
• Wide Supply Voltage Range: 1.2V to 3.6V
• CMOS Low-Power Consumption
• Direct Interface with TTL Levels
• Inputs Accept Voltages up to 5.5V
• High-Impedance When VCC = 0V
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-20 Package
• Supply Voltage Range from 1.65V to 3.6V
• Sinks or Sources 24ma at VCC = 3V
• CMOS Low Power Consumption
• IOFF Supports Partial - Power Down Operation
• Inputs or Outputs Accept up to 5.5V
• Inputs can be Driven by 3.3V or 5V Allowing for
Mixed Voltage Applications
• Schmitt Trigger Action at All Inputs
• Typical VOLP (Quiet Output Ground Bounce)
Less than 0.8V with VCC = 3.3V and TA = +25°C
• Typical VOHV (Quiet Output Dynamic VOH)
Greater than 2.0V with VCC = 3.3V and TA = +25°C
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
• Latch-Up Exceeds 250mA per JESD 78, Class
• All devices are:
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
