3.3V, Quad Buffer/Line Driver with 3-State Outputs,74LVTH125 Replace SN74HC125D.
74LVTH125
74LVTH125.pdf
74LVTH125.pdfFEATURES
• Quad Bus Interface
• 3-State Buffers
• Output Capability: +64mA/-32mA
• TTL Input and Output Switching Levels
• Input and Output Interface Capability to
Systemsat 5V Supply
• Bus Hold on Data Inputs Eliminates the Need
forExternal Pull-Up/Pull-Down Resistors
• Live Insertion and Extraction Permitted
• Power-Up 3-State
• No Bus Current Loading When Output is Tied to5V Bus
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-14 Package

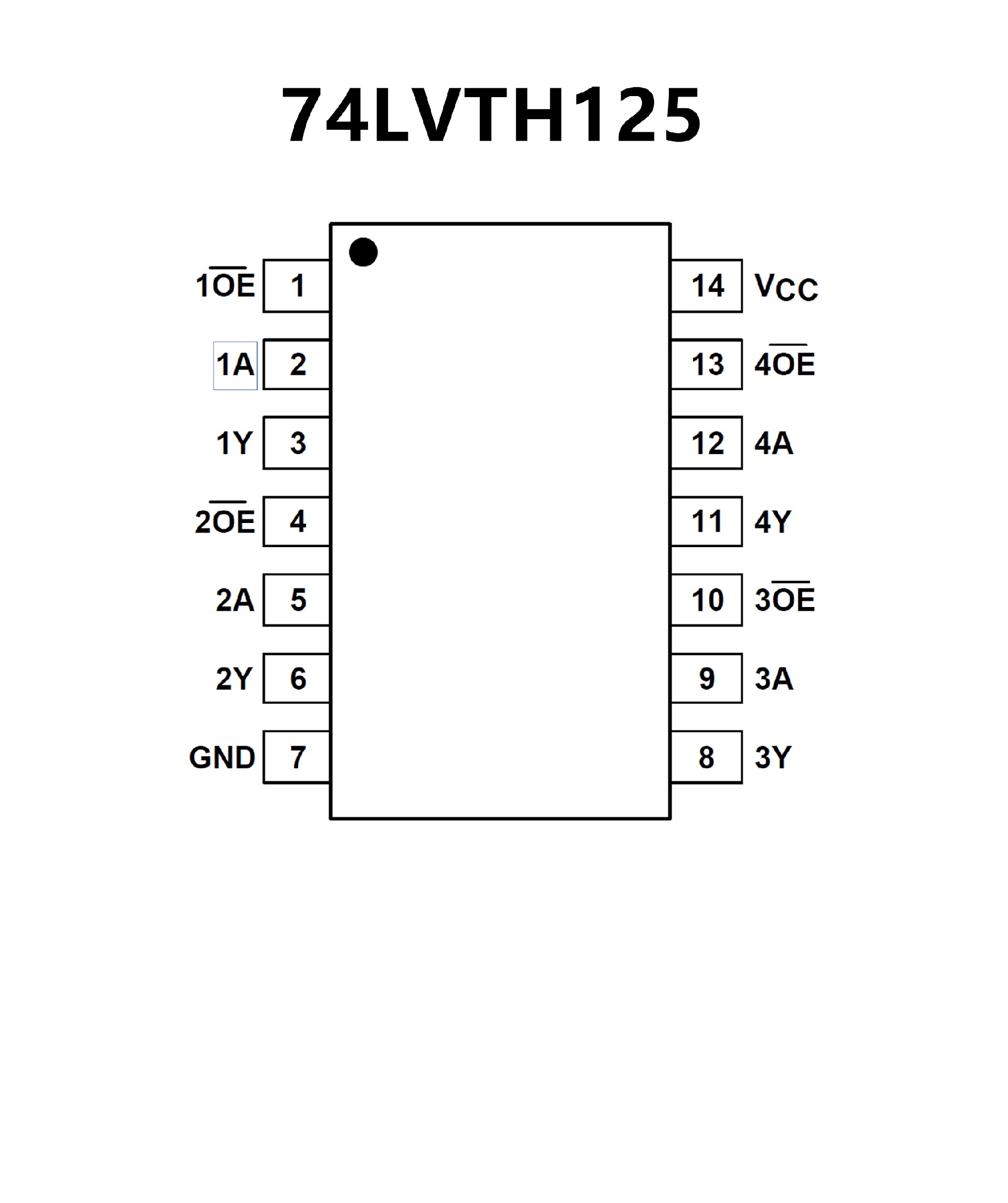

PIN CONFIGUTION
优势替代
FEATURES
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range:
–40°C to +85°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL
logic ICs

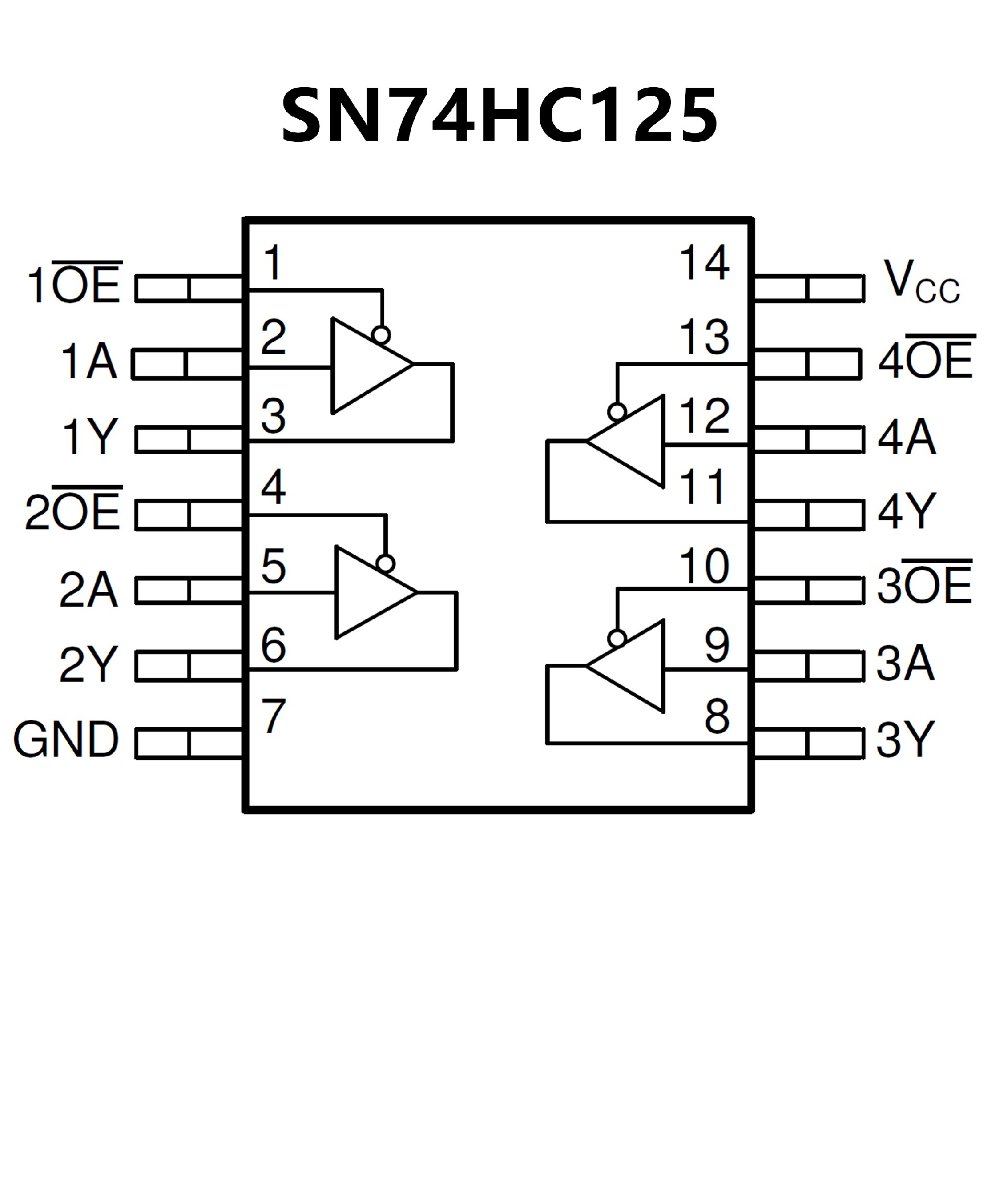

PIN CONFIGUTION
