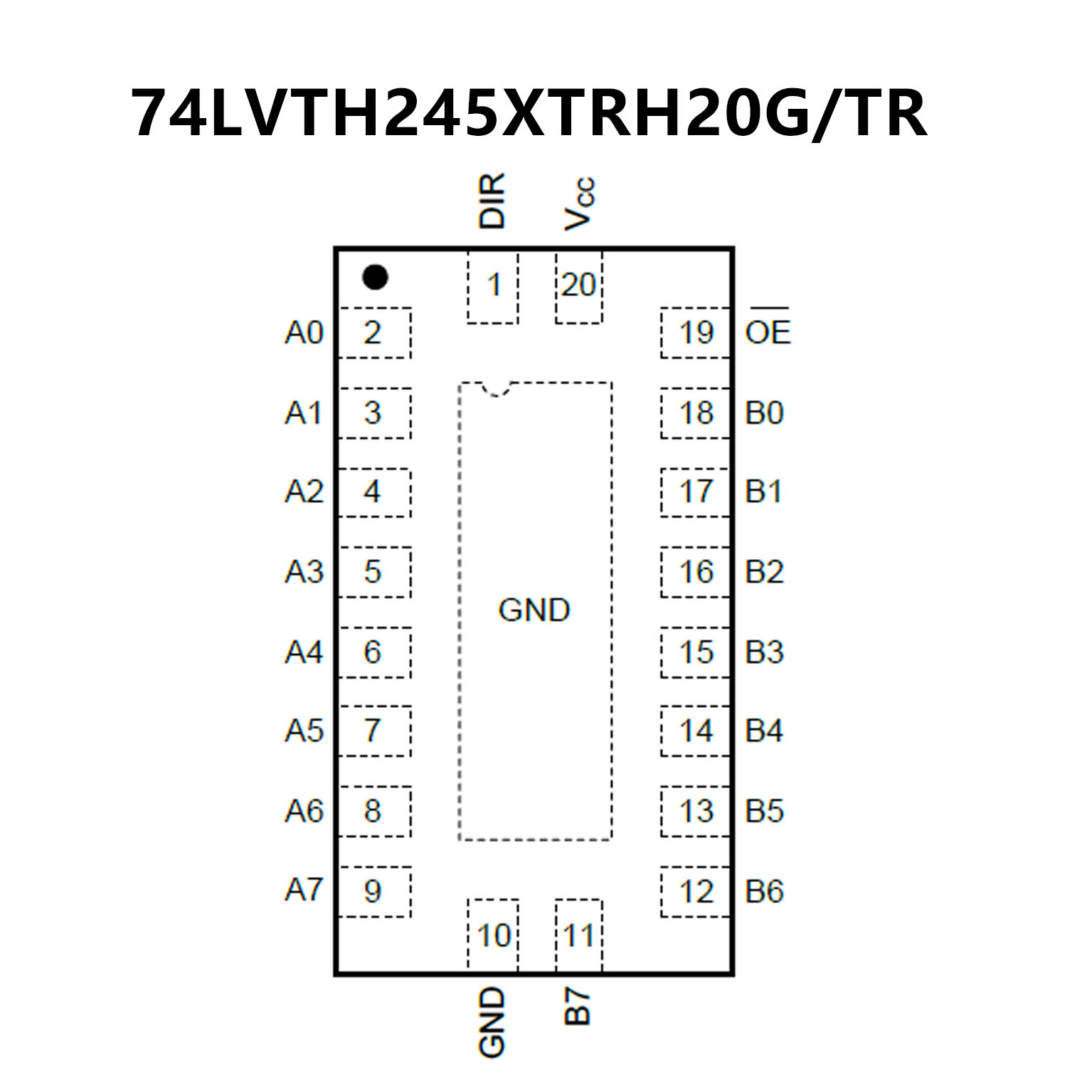

74LVTH245.pdf• Wide Operating Voltage Range: 2.7V to 3.6V
• Input and Output Interface Capability to 5V
System Environment
• +64mA-32mA Output Current
• 3-State Outputs Drive Bus Lines Directly
• Power-up and IOFF 3-State
• Bus Hold-on Data Inputs with No Need for
External Pull-upPull-down Resistors
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TQFN-4.5×2.5-20L Package

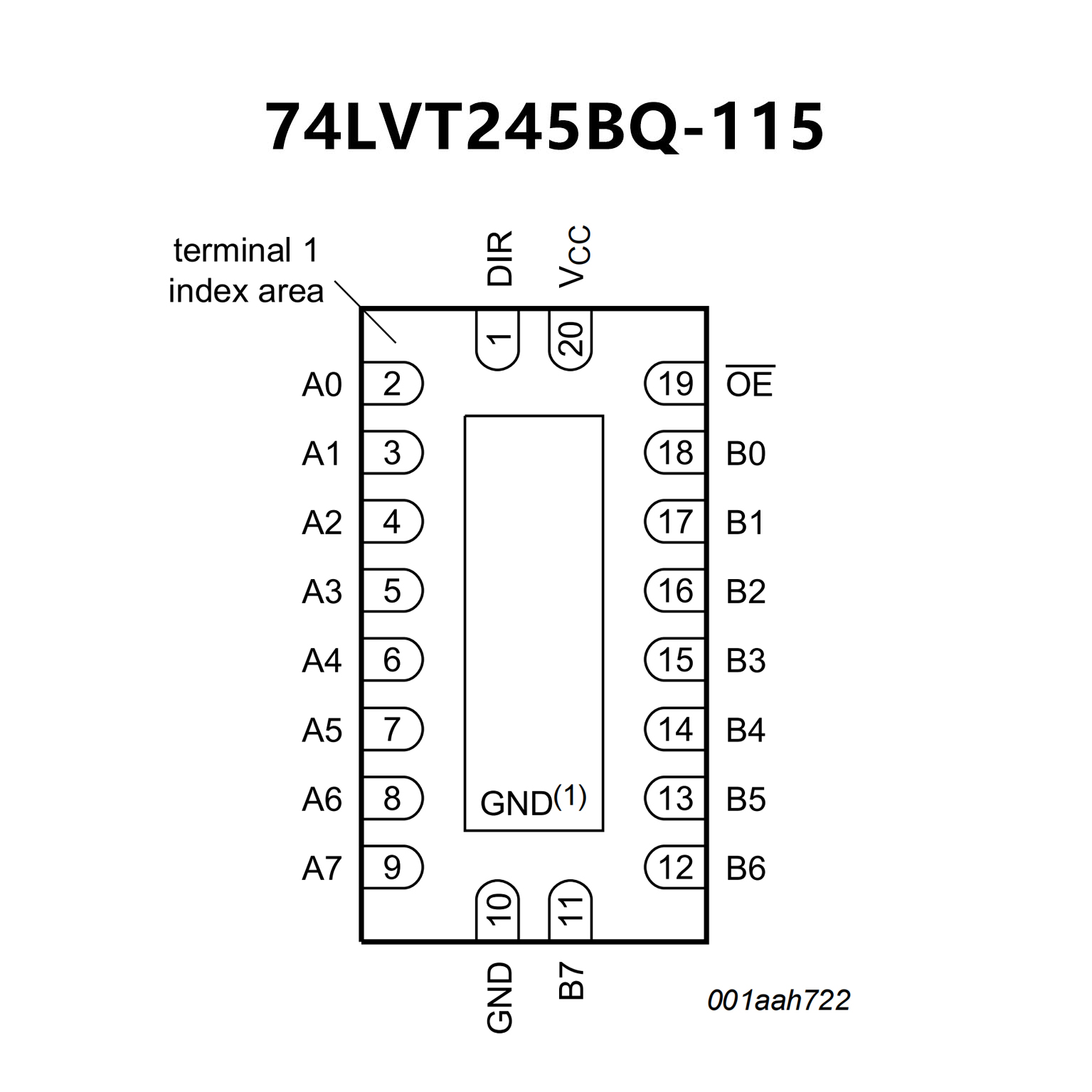

• Wide supply voltage range from 2.7 to 3.6 V
• 3-state buffers
• Octal bidirectional bus interface
• Overvoltage tolerant inputs to 5.5 V
• Direct interface with TTL levels
• BiCMOS high speed and output drive
• Output capability: +64 mA-32 mA
• Latch-up protection exceeds 500 mA per JESD78 class II level A
• Bus-hold data inputs eliminate the need for external
pull-up resistors for unused inputs
• No bus current loading when output is tied to 5 V bus
• Live insertionextraction permitted
• Power-up 3-state
• IOFF circuitry provides partial Power-down mode operation
• Complies with JEDEC standards JESD8C (2.7 V to 3.6 V)
• ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Specified from -40 °C to 85 °C
