3.3V, Octal Transceiver with Direction Pin and 3-State Outputs, 74LVTH245 Replace 74LVC245APW-118.
74LVTH245
74LVTH245.pdf
74LVTH245.pdfFEATURES
• Wide Operating Voltage Range: 2.7V to 3.6V
• Input and Output Interface Capability to
5V System Environment
• +64mA/-32mA Output Current
• 3-State Outputs Drive Bus Lines Directly
• Power-up and IOFF 3-State
• Bus Hold-on Data Inputs with No Need
for External Pull-up/Pull-down Resistors
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TQFN-4.5×2.5-20L Package
PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range from 1.2V to 3.6V
• CMOS low-power consumption
• Direct interface with TTL levels
• Overvoltage tolerant inputs to 5.5V
• Bus hold on all data inputs (74LVCH245A only)
• IOFF circuitry provides partial Power-down
mode operation
• Complies with JEDEC standard:
• JESD8-7A (1.65V to 1.95V)
• JESD8-5A (2.3V to 2.7V)
• JESD8-C/JESD36 (2.7V to 3.6V)
• ESD protection:
• HBM JESD22-A114F exceeds 2000V
• MM JESD22-A115B exceeds 200V
• CDM JESD22-C101E exceeds 1000V
• Specified from -40°C to +85°C and -40°C to +125°C

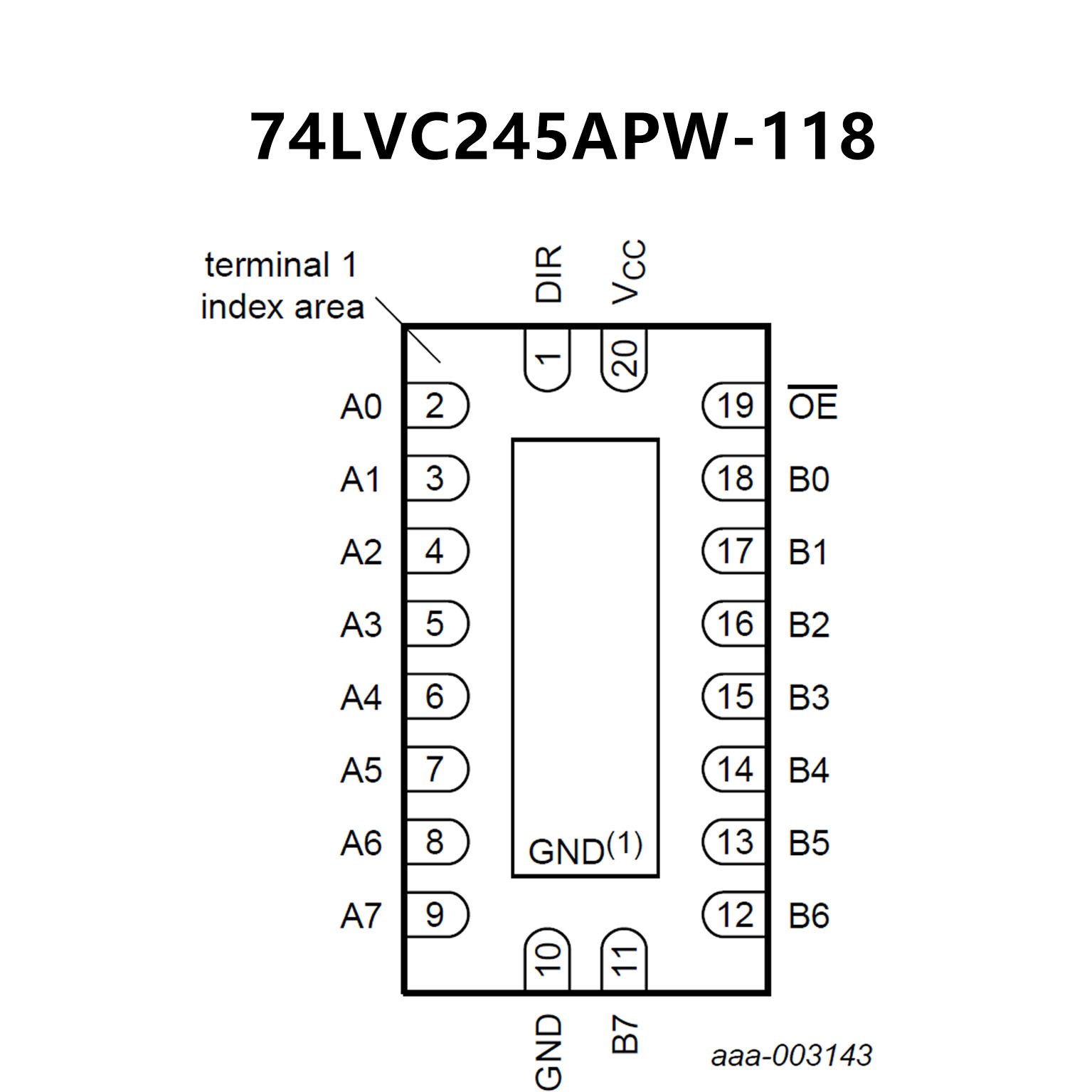

PIN CONFIGUTION
