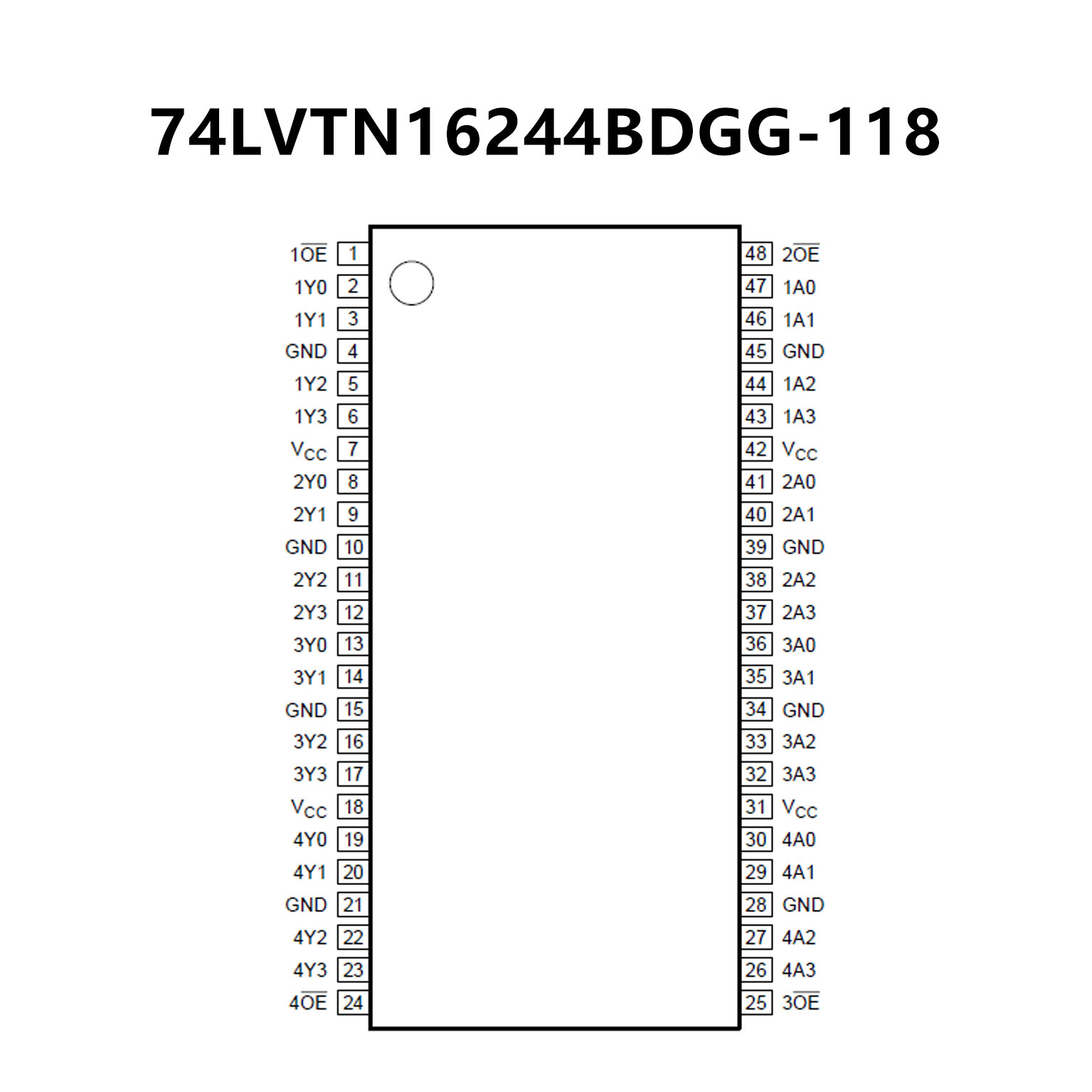

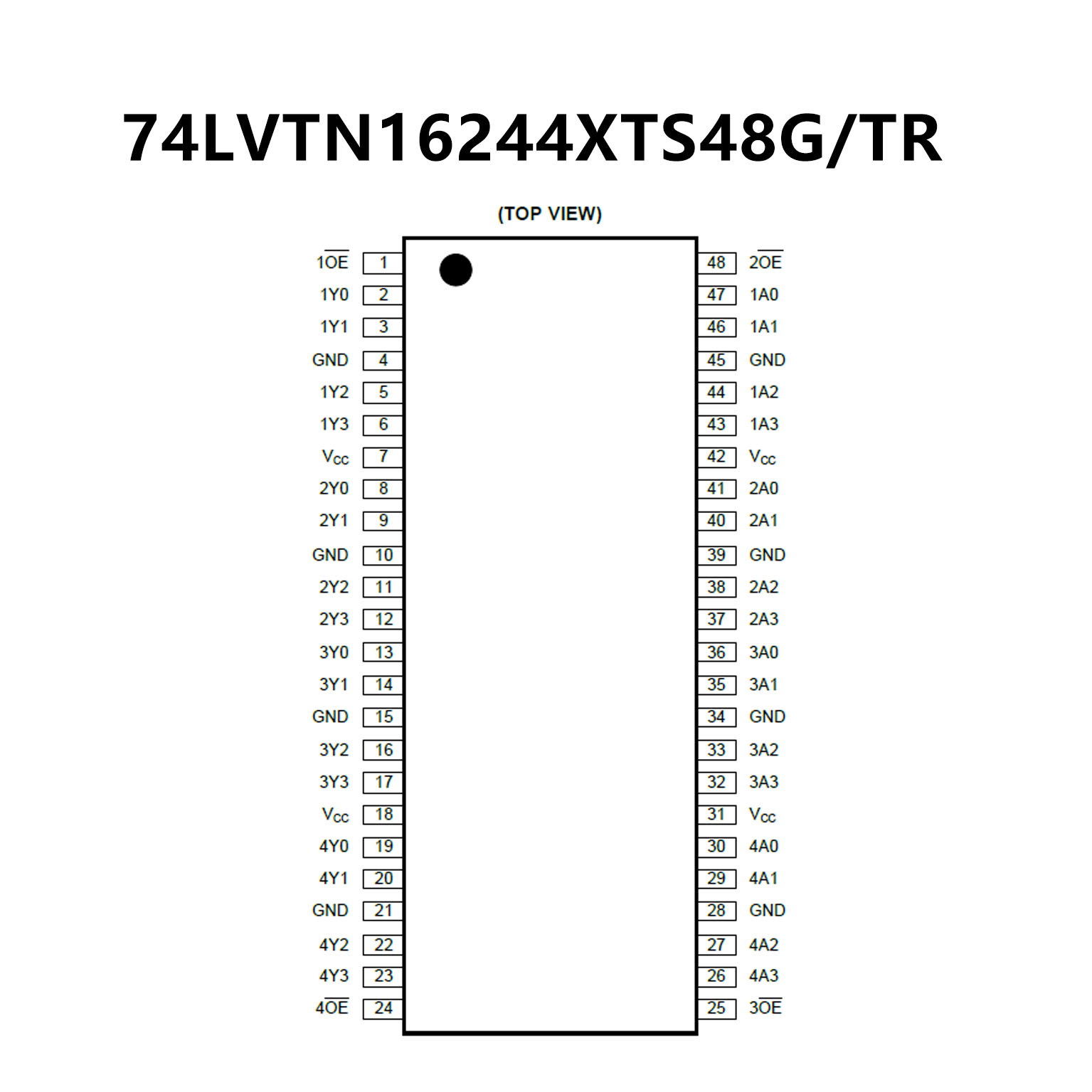

74LVTN16244.pdf• 16-Bit Bus Interface
• 3-State Buffers
• Output Capability: +64mA/-32mA
• TTL Input and Output Switching Levels
• Input and Output Interface Capability to
Systems at 5V Supply
• 74LVTH16244: Bus Hold on Data Inputs Eliminates
the Need for External Pull-Up/Pull-Down Resistors
• Live Insertion and Extraction Permitted
• Power-Up 3-State
• No Bus Current Loading When Output is Tied to
5V Bus
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-48 Package
•16-bit bus interface
• 3-state buffers
• Output capability: +64 mA and -32 mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5 V supply
• Power-up 3-state
• Live insertion and extraction permitted
• No bus current loading when output is tied to 5 V bus
• Latch-up protection
• JESD78B Class II exceeds 500 mA
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
