3.3V, 16-Bit Buffers/Line Drivers with 3-State Outputs,74LVTN16245-Replace-74LVTN16245BDGG118.
74LVTN16245
74LVTN16245.pdf
74LVTN16245.pdfFEATURES
• Wide Operating Voltage Range: 2.7V to 3.6V
• Input and Output Interface Capability to 5V
System Environment
• +64mA/-32mA Output Current
• 3-State Outputs Drive Bus Lines Directly
• Power-up and IOFF 3-State
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-48 Package

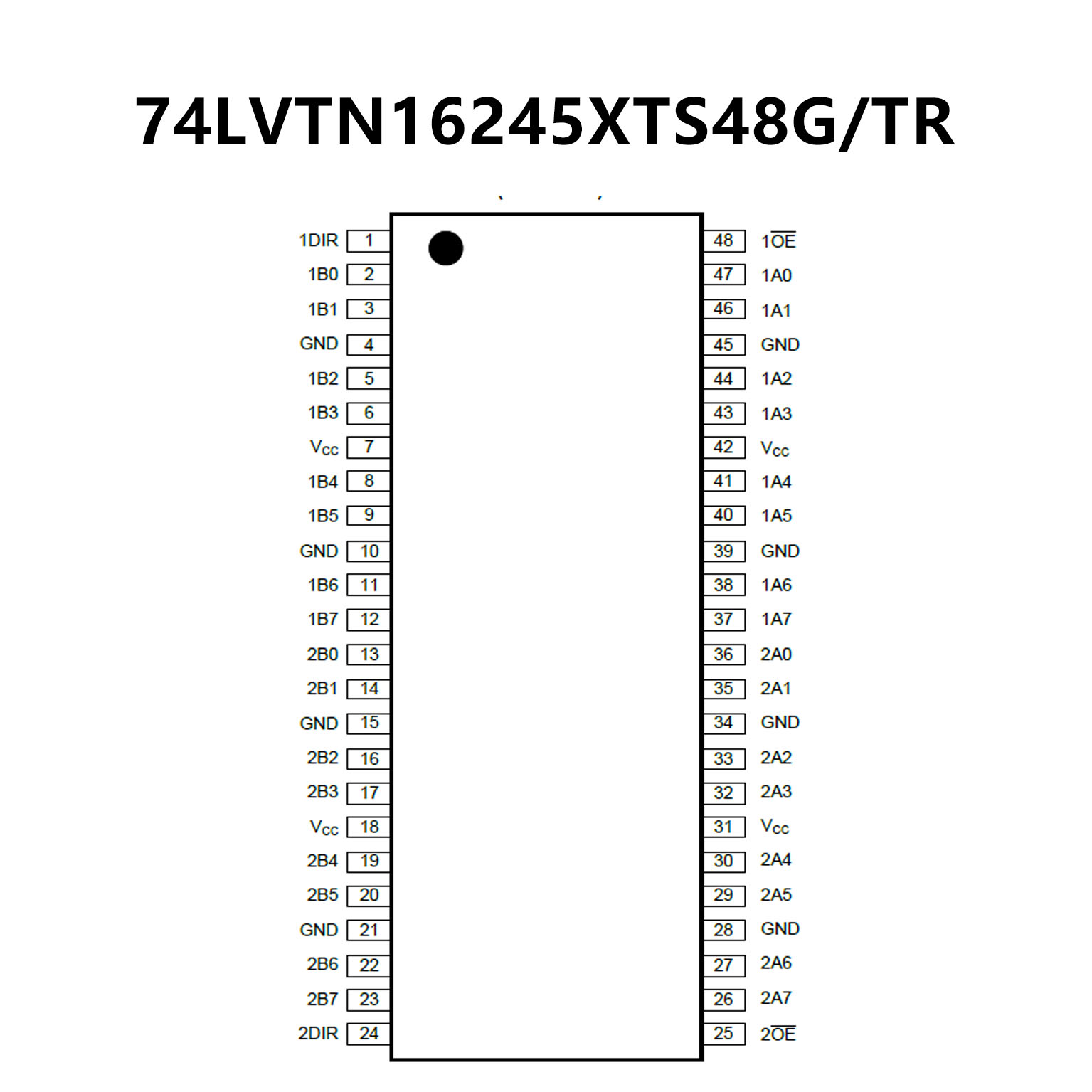

PIN CONFIGUTION
优势替代
FEATURES
• 16-bit bus interface
• 3-state buffers
• Output capability: +64 mA and -32 mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5 V supply
• Power-up 3-state
• Live insertion and extraction permitted
• No bus current loading when output is tied to 5 V bus
• Latch-up protection
• JESD78B Class II exceeds 500 mA
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V

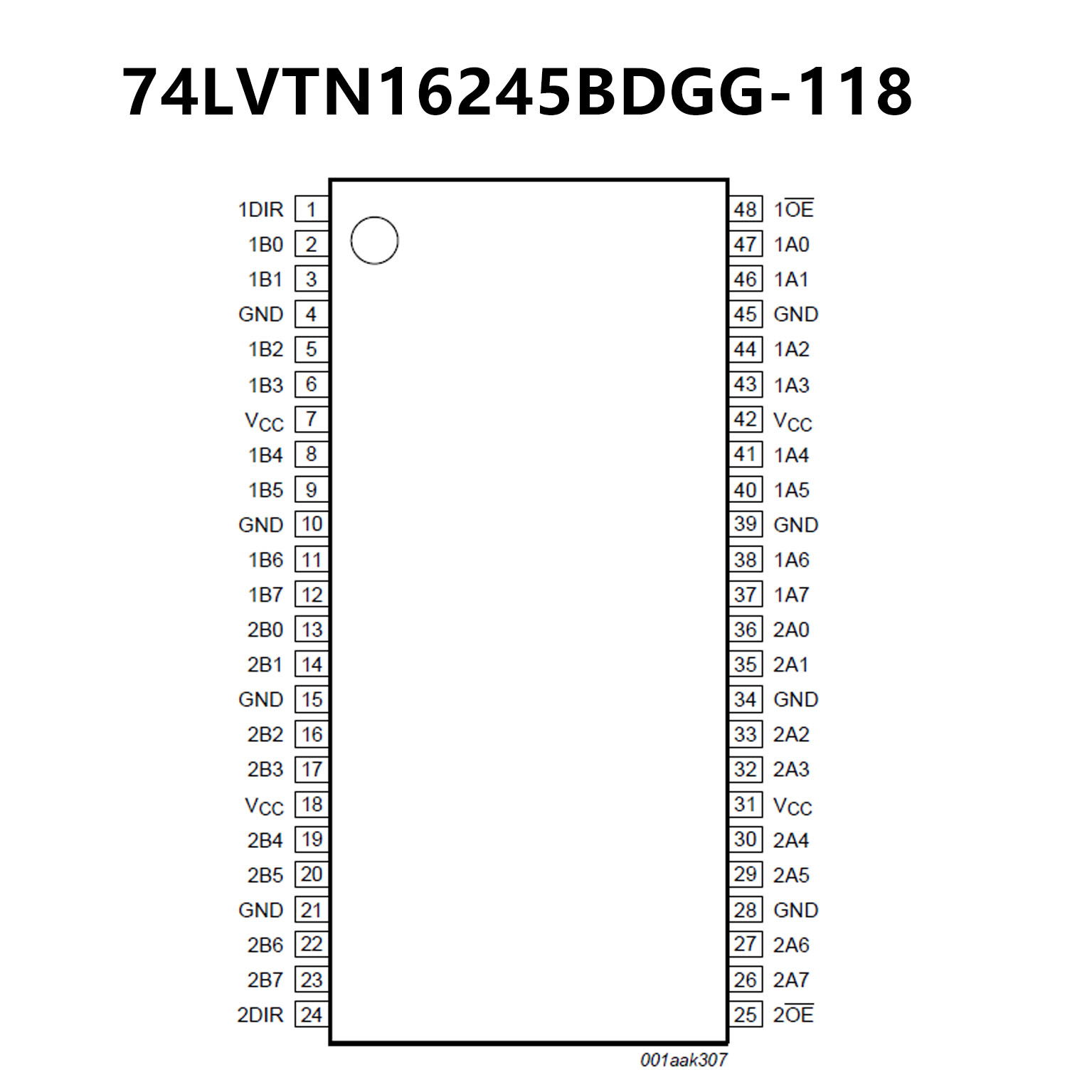

PIN CONFIGUTION
