• 600mA Low Dropout Regulator with EN

• Very low IQ: 35μA

• Wide input voltage range: 2V to 6V

• Wide adjustable output: 0.8V to 5.0V

• Fixed output options: 0.8V to 3.9V (0.1V step size

  possible)

• High PSRR: 65dB at 1kHz

• Fast start-up time: 200μs

• Stable with low ESR, 1μF ceramic output capacitor

• Excellent Load/Line Transient Response

• Low dropout: 300mV at 600mA

• Current limit and short circuit protection

• Thermal shutdown protection

• Ambient temperature range: -40ºC to 85ºC

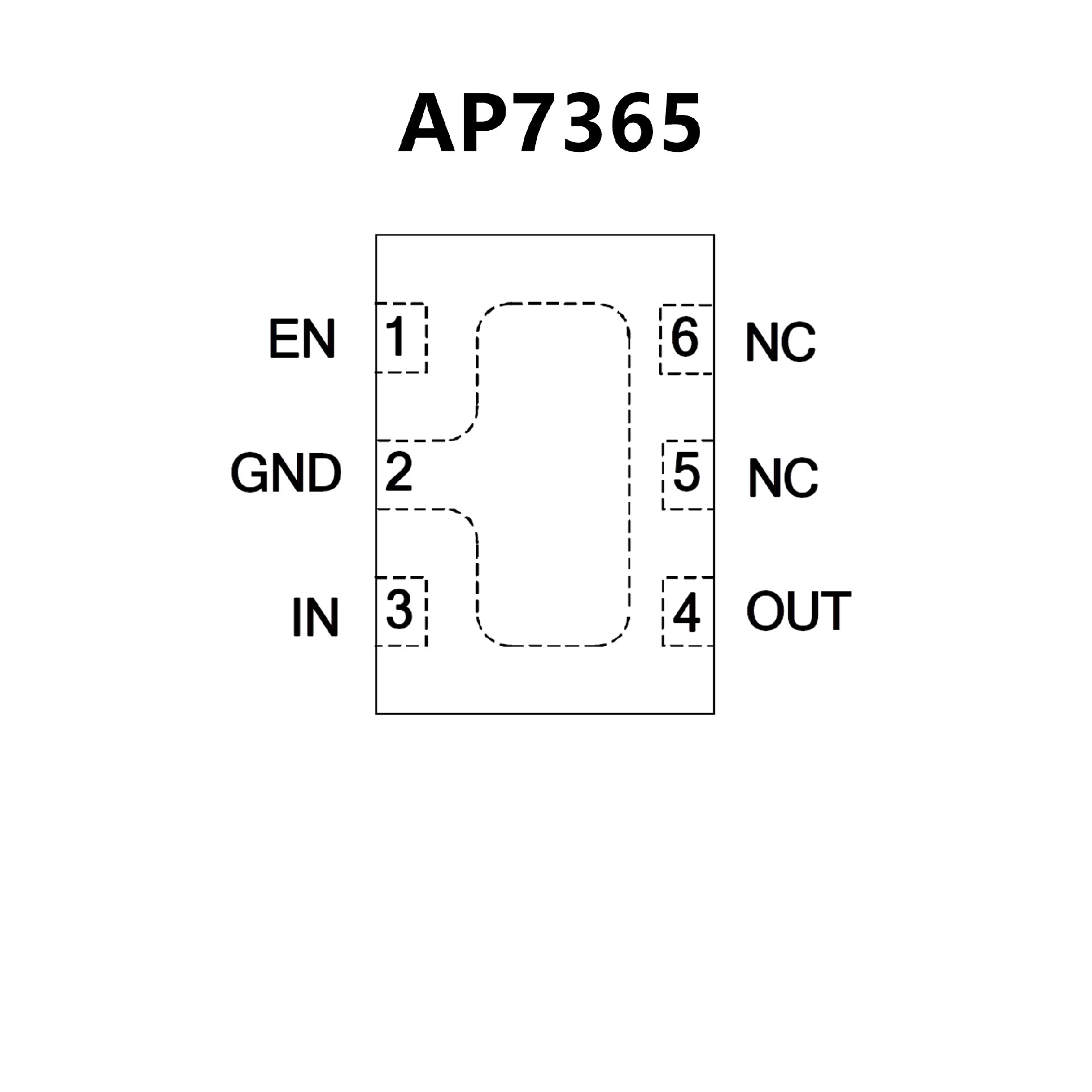

• SOT25, SOT89/R-3L, SOT223/R-3L, DFN2020-6:

  Available in “Green” Molding Compound (No Br, Sb)

• Lead Free Finish/ RoHS Compliant (Note 1)
