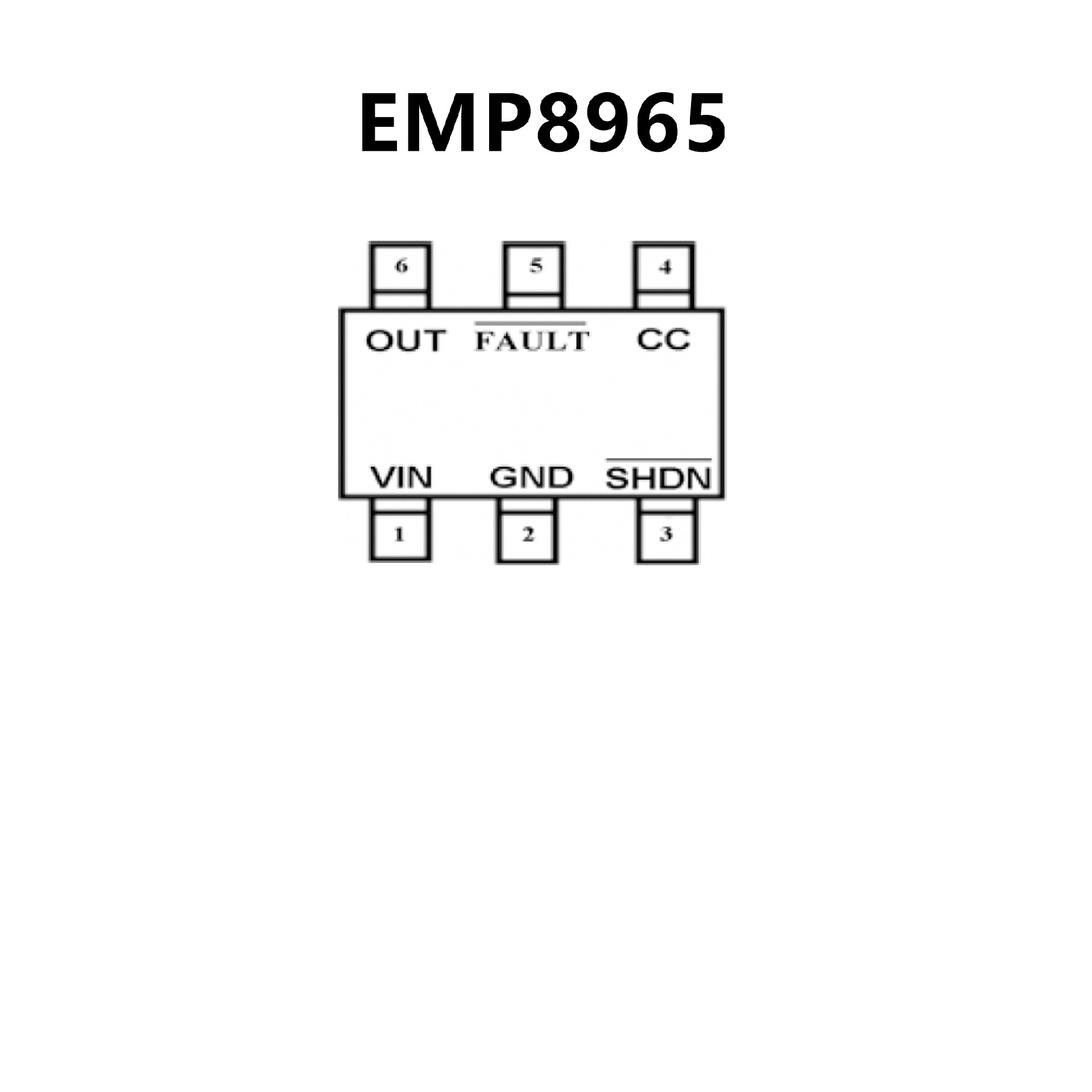

• Miniature SOT-23-5 and SOT-23-6 packages

• 600mA guaranteed output current

• 75dB typical PSRR at 1kHz

• 30μV RMS output voltage noise (10Hz to 100kHz)

• 270mV typical dropout at 600mA

• 110μA typical quiescent current

• 1nA typical shutdown mode

• Fast line and load transient response

• 80μs typical fast turn-on time

• 2.5V to 5.5V input range

• Stable with small ceramic output capacitors

• Over temperature and over current protection

• ±2% output voltage tolerance
