1.5A USB Power Switch, ACP12522 Replace RT9742.
ACP12522
ACP12522.pdf
ACP12522.pdfFEATURES
• Input Voltage Range: 2.5V to 5.5V
• 2.1A Accurate Current Limiting Threshold
• Fast Transient Response
• Max 35μA Quiescent Current
• Low 90mΩ Typical RDS(ON)
• Reverse Current Blocking
• Thermal Shutdown and Over-Current Protection
• Fault Report with 12ms Typical Blanking Time
• -40 to 85°C Operation Temperature Range
PIN CONFIGUTION
优势替代
FEATURES
• 70mΩ/55mΩ (typ.) N-MOSFET Switch
• Operating Range : 2.7V to 6V
• Reverse Blocking Current
• Under Voltage Lockout
• Deglitched Fault Report (FLG)
• Thermal Protection with Fold-back
• Over Current Protection
• Short Circuit Protection
• UL Approved−E219878

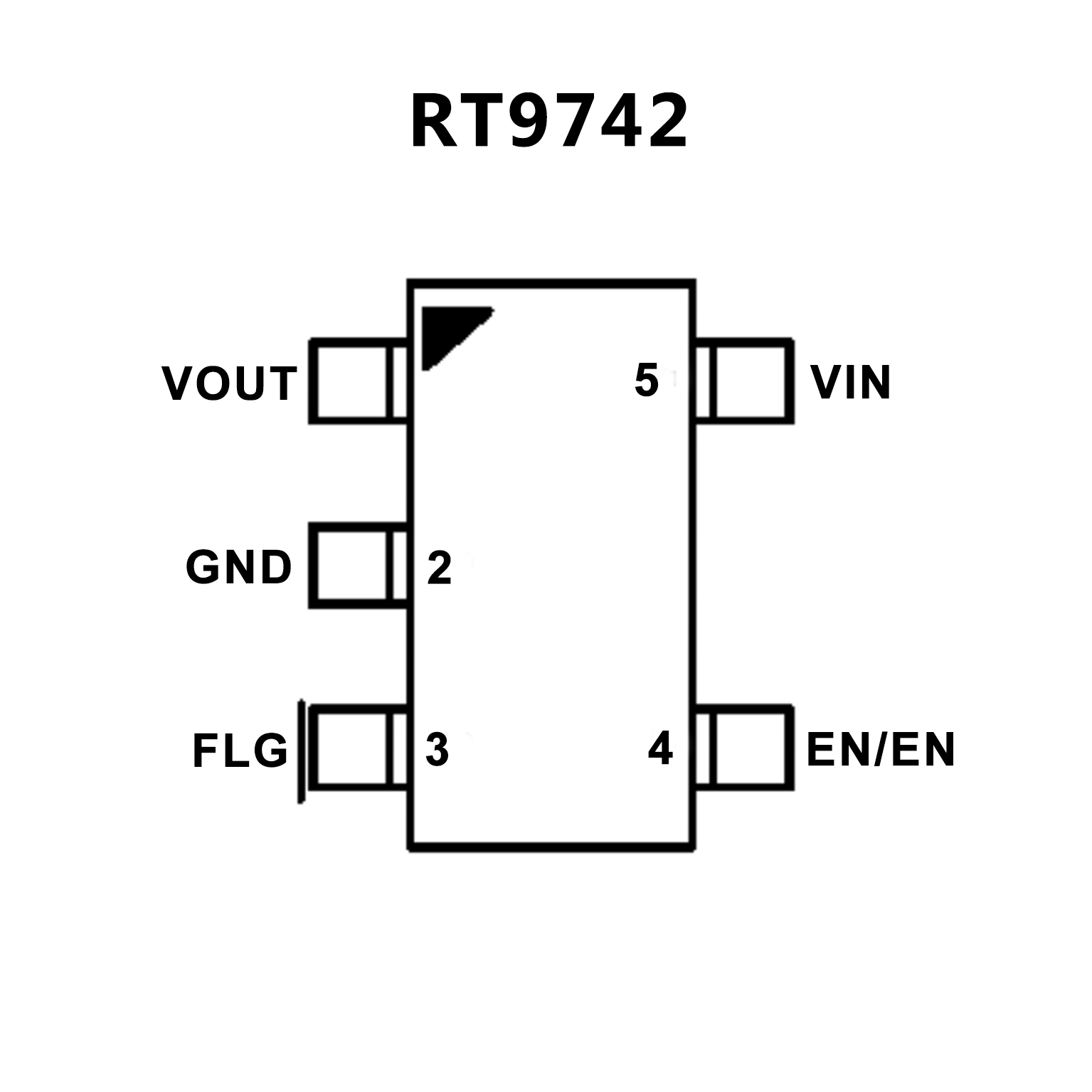

PIN CONFIGUTION
