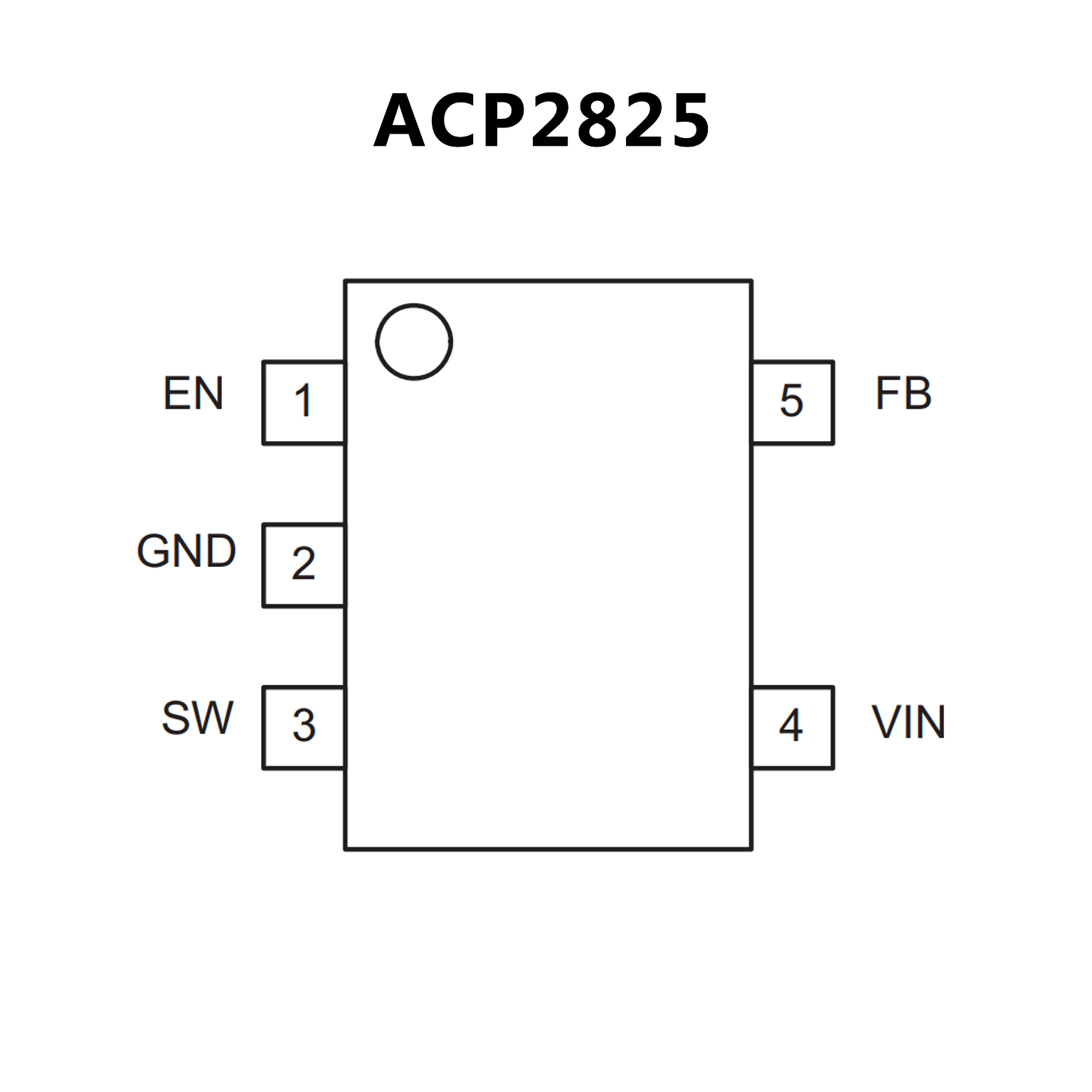

ACP2825.pdf• Input Voltage Range: 2.5V to 6V
• Output Current: 1.2A
• Adjustable Output with 0.6V Reference Voltage
• Automatic PFM Mode at Light Load
• Low Dropout 100% Duty Operation
• 1.5MHz Programmable Frequency
• Maximum 65μA Quiescent Current
• Internal Soft Start Function
• Excellent Line and Load Transient Response
• Short Circuit Protection
• Input Over Voltage Protection
• Under Voltage Lockout Protection
• Efficiency Up to 95%

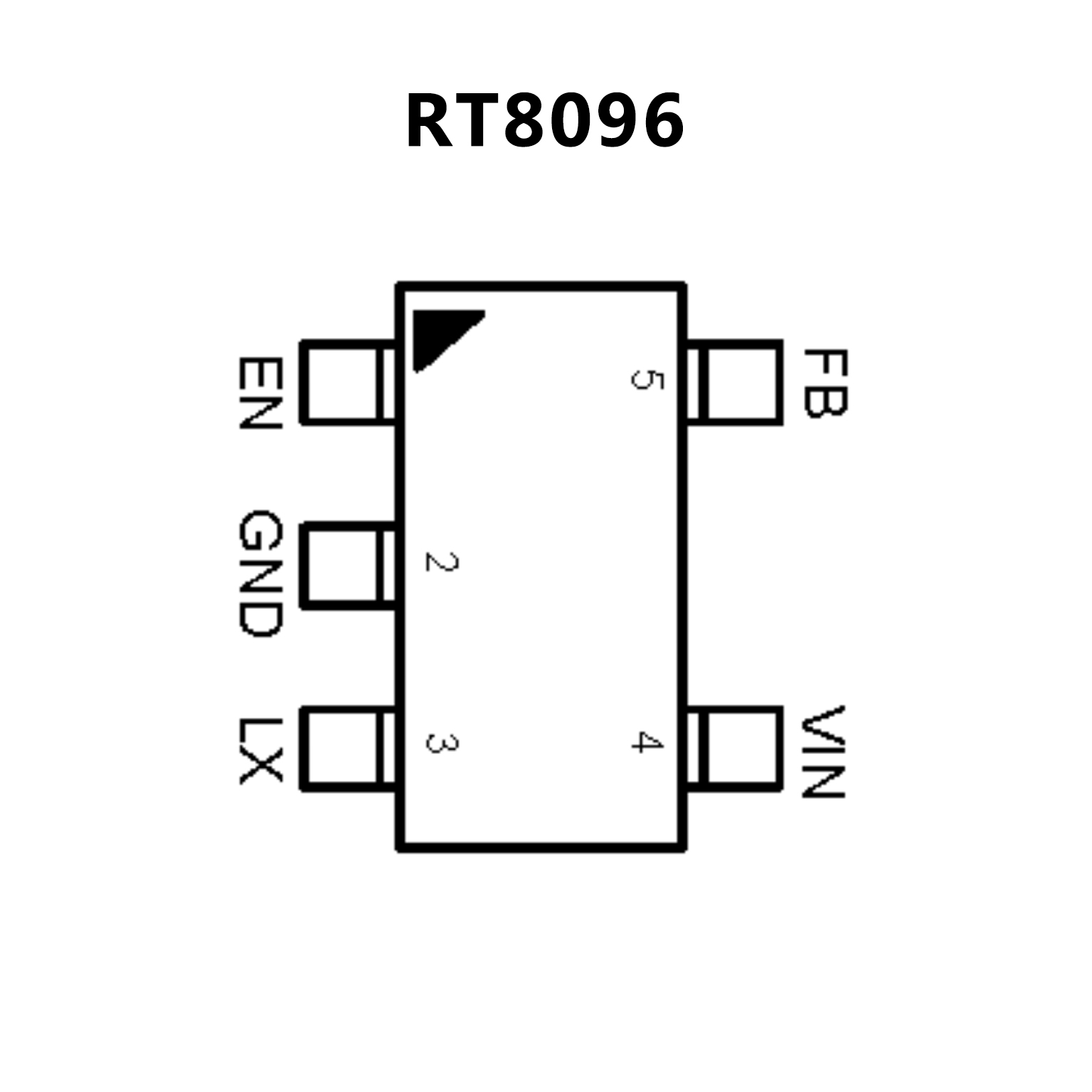

• RDSON 160mΩHS / 110mΩ LS
• VIN Range 2.5V to 6V
• VREF 0.6V with ±2% Accuracy
• CMCOT™ Control Loop Design for Best
Transient Response, Robust Loop Stability with
Low-ESR (MLCC) COUT
• Cycle-by-Cycle Over-Current Protection
• Input Under-Voltage Lockout
• Output Under-Voltage Protection (UVP Hiccup)
• Thermal Shutdown Protection
• Power Saving at Light Load
