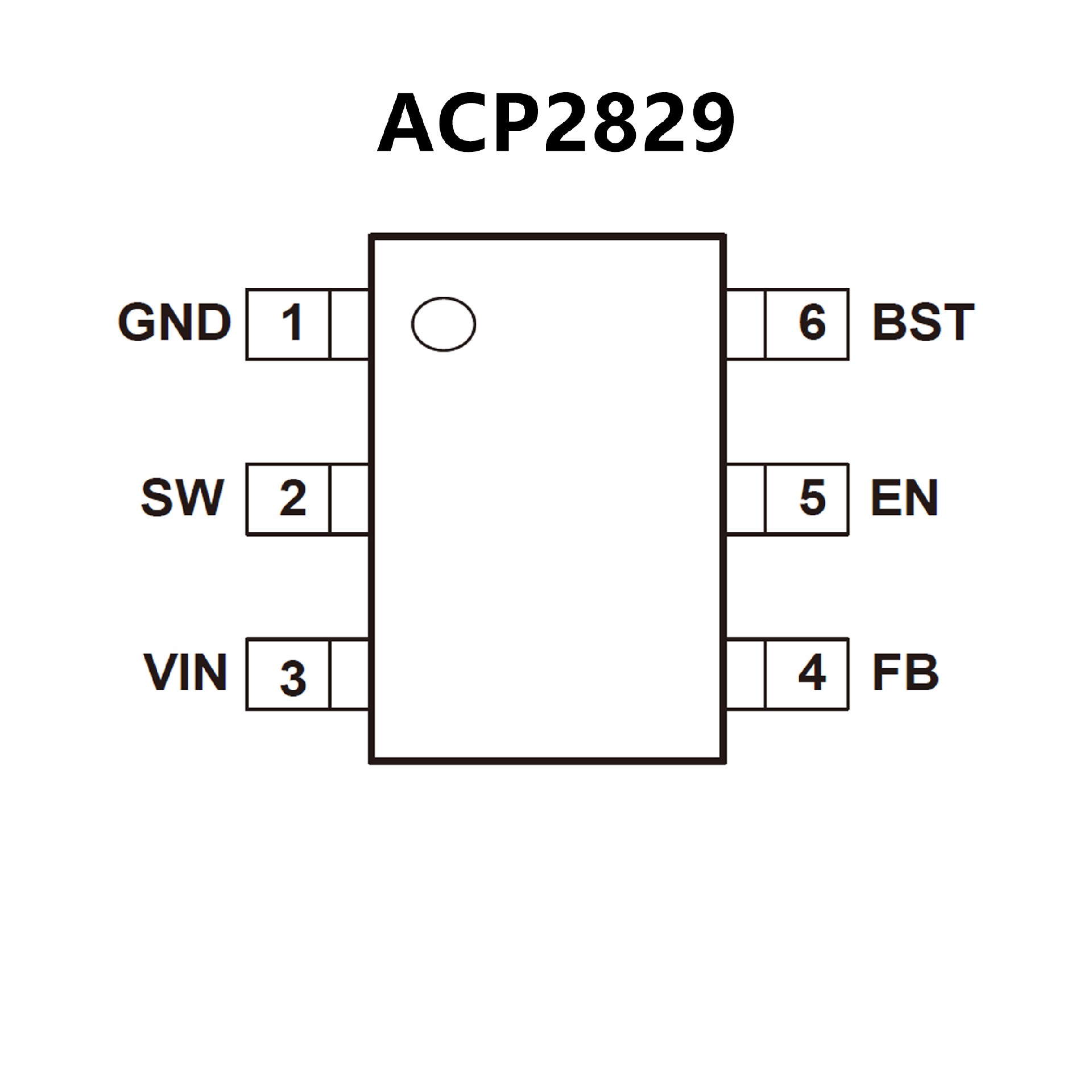

ACP2829.pdf• VIN : 4.2V to 18V
• Output Voltage (VOUT) : 0.8V to 7V
• 2A Continuous Output Current
• 0.8V ± 1% Reference Voltage
• 150μA Low Quiescent Current
• 750KHz Switching Frequency (VIN = 12V, VOUT= 5V)
• Typically 85% Efficiency at 5mA Light Load
• Proprietary Gate Driver Design for Best EMI
Reduction
• Under Voltage Lockout (UVLO)
• Cycle-by-Cycle Valley Current Limit
• Thermal Shutdown
• Low RDS(ON) Integrated Power MOSFET
(170mΩ/90mΩ)
• Internal Compensation Function
• Wide Input Voltage Range: 4.5V to 18V
• 0.8V Reference Voltage
• 2A Output Current
• 500kHz Switching Frequency
• 1ms Soft-Start Time
• Cycle-by-Cycle Current Limit
• Over-Temperature Protection with Auto Recovery
• Under Voltage Lockout
• Hiccup Short Circuit Protection
• SOT-23-6 Package
