5A Bipolar Linear Regulator, BL1084 Replace LM1084.
BL1084
BL1084.pdf
BL1084.pdfFEATURES
• Fixed and adjustable versions.
• Maximum output current : 5A
• Maximum input voltage: 15V
• Line regulation: 0.2％ (Typical)
• Load regulation: 0.2％ (Typical)
• On-Chip Thermal Shutdown
• Operation environment Temperature: -10℃
~ 85℃

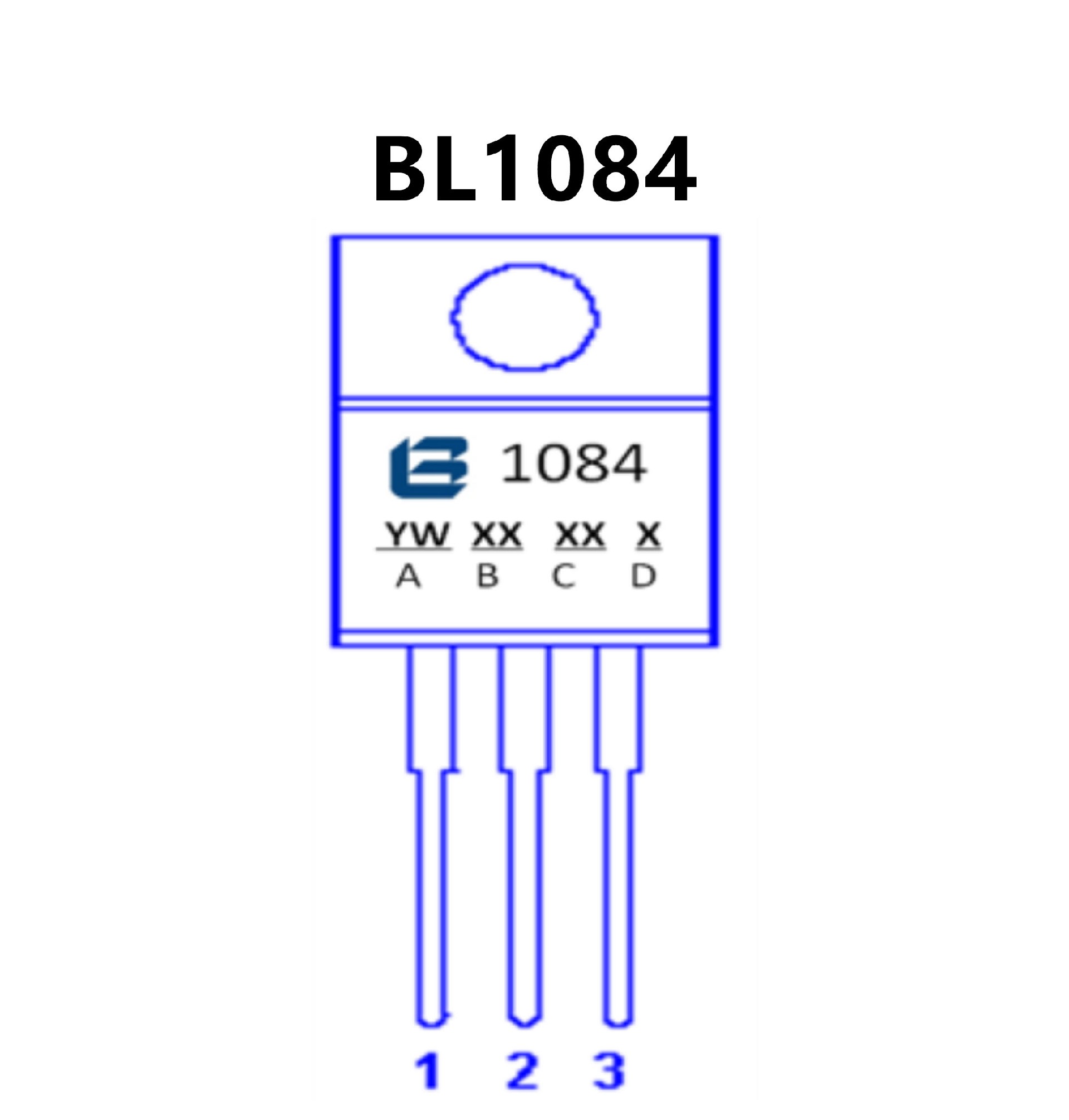

PIN CONFIGUTION
优势替代
FEATURES
• Available in 3.3-V, 5.0-V, and Adjustable Versions
• Current Limiting and Thermal Protection
• Output Current 5 A
• Industrial Temperature Range −40°C to 125°C
• Line Regulation 0.015% (Typical)
• Load Regulation 0.1% (Typical)

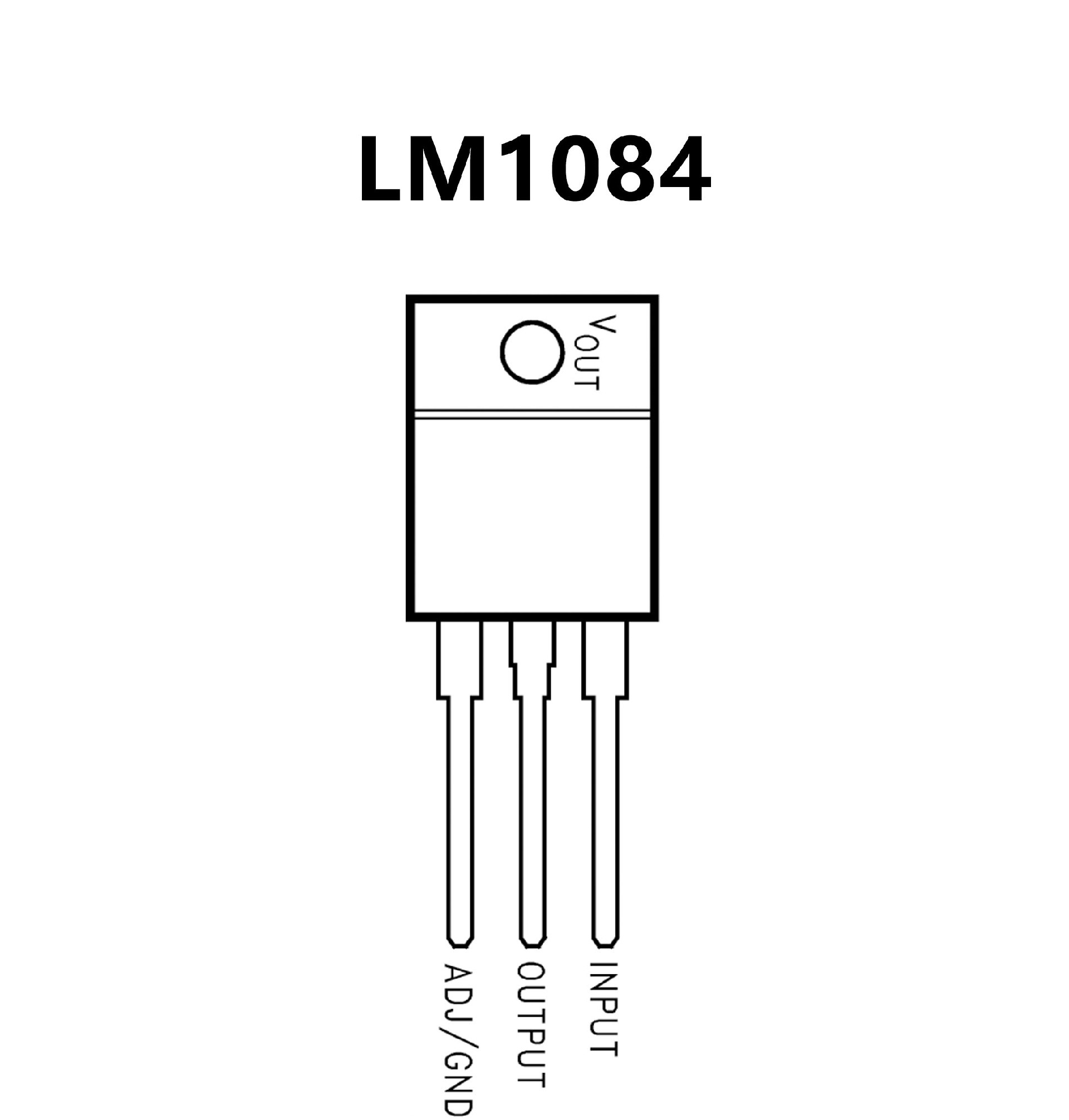

PIN CONFIGUTION
