3A Bipolar Linear Regulator, BL1085 Replace LM1085.
BL1085
BL1085.pdf
BL1085.pdfFEATURES
• Fixed and adjustable versions.
• Maximum output current : 3A
• Maximum input voltage: 15V
• Line regulation: 0.2％ (Typical)
• Load regulation: 0.2％ (Typical)
• On-Chip Thermal Shutdown
• Operation environment Temperature: -10℃
~ 85℃

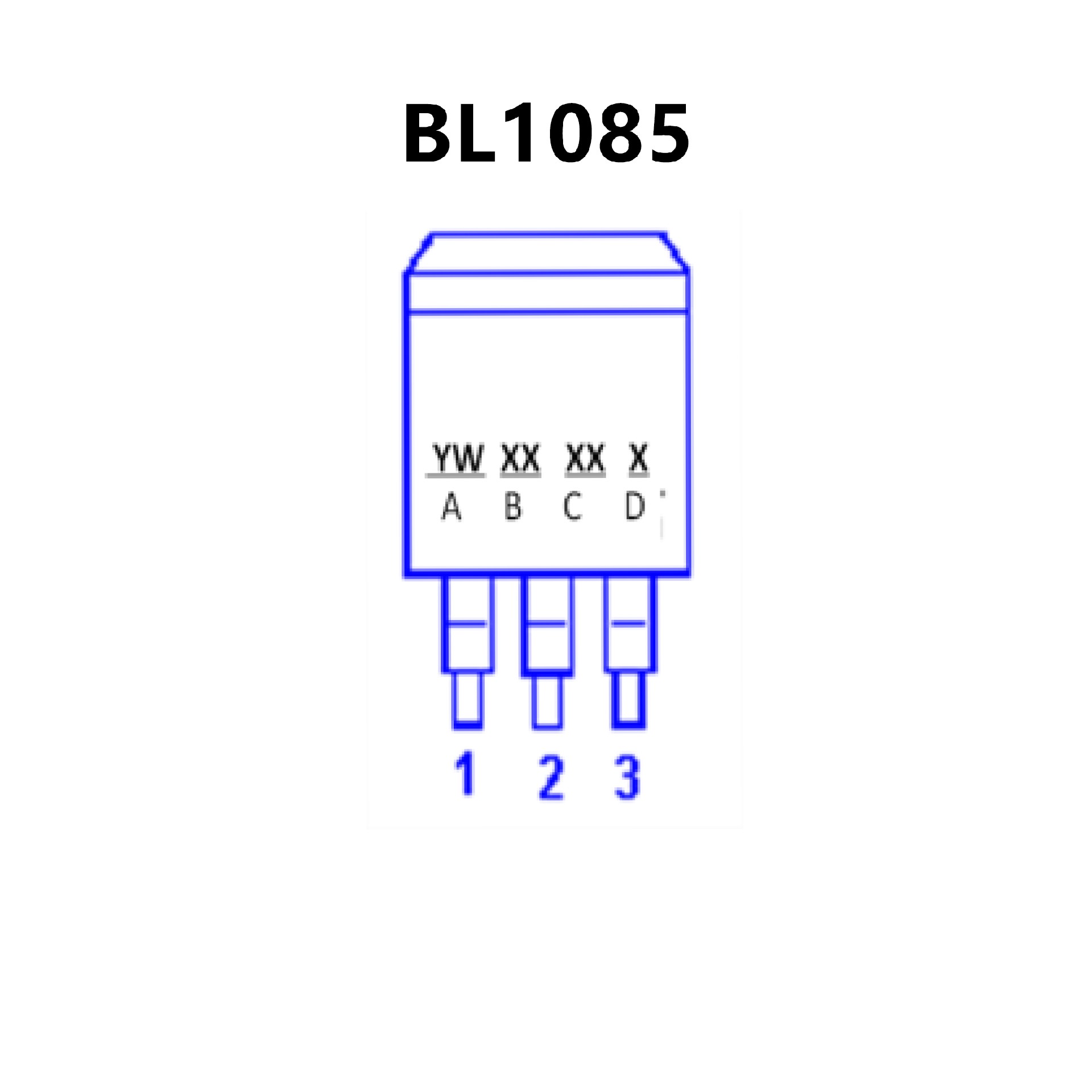

PIN CONFIGUTION
优势替代
FEATURES
• Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
• Current Limiting and Thermal Protection
• Output Current 3 A
• Line Regulation 0.015% (typical)
• Load Regulation 0.1% (typical)

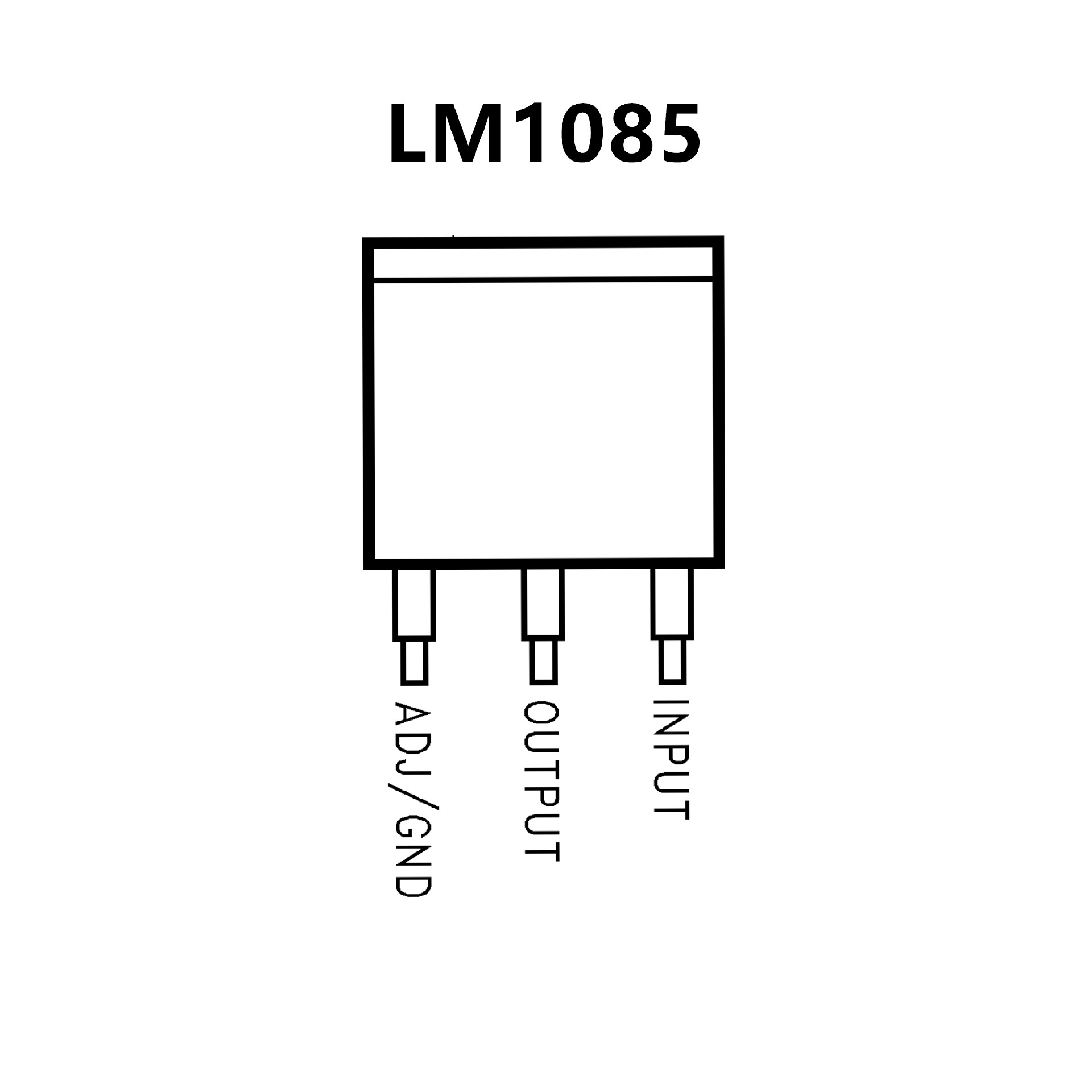

PIN CONFIGUTION
