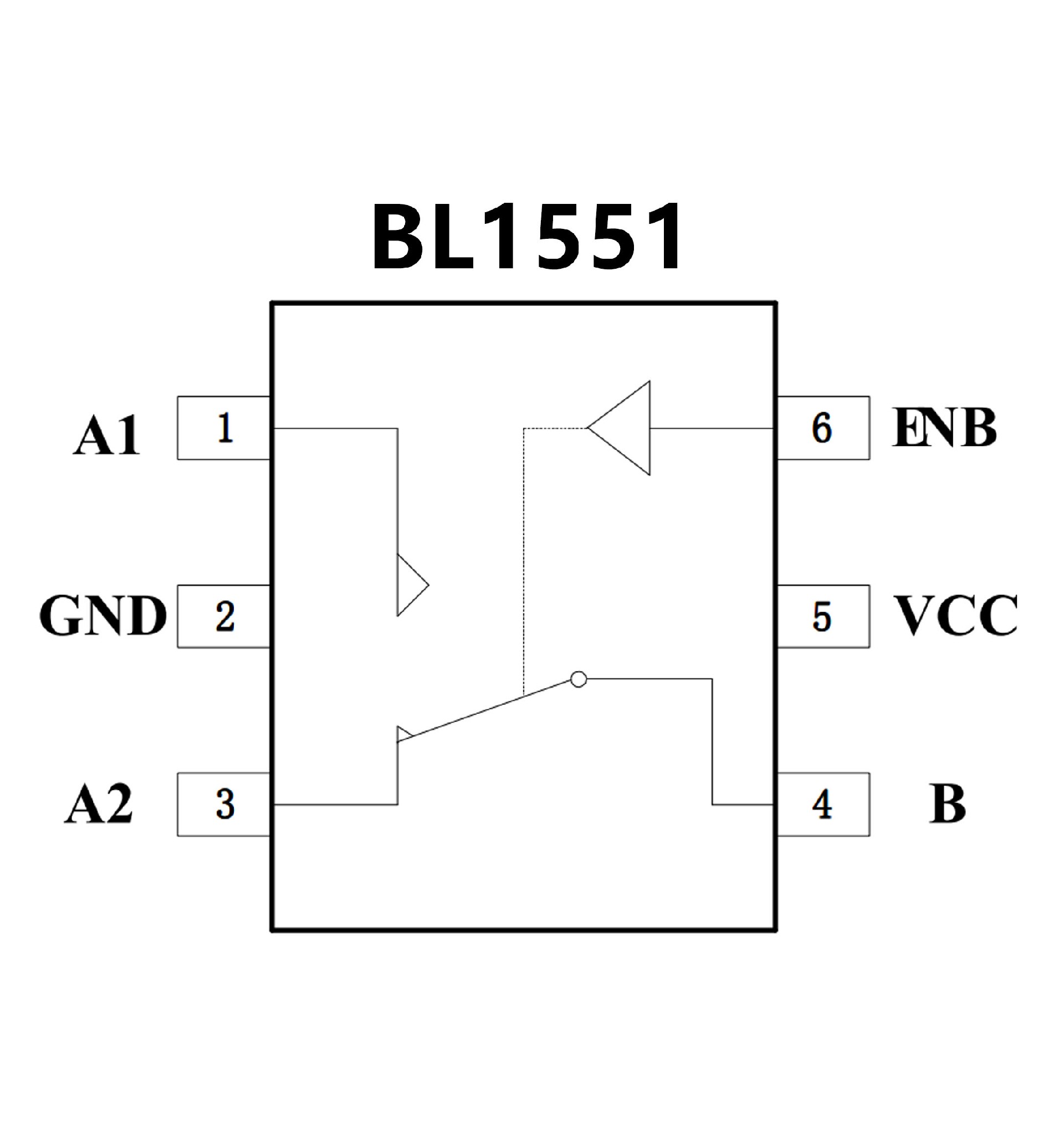

BL1551.pdf• Wide Power Supply Range: 1.8V to 5.5V
• High Bandwidth: 300MHz
• High Off-Isolation: 84dB at 1MHz 51dB at 10MHz
• On-Resistance: 2.7Ω(typ) at 5.0V
• Fast Switching Time ton = 12.0ns; toff = 5.0ns
• TTL/CMOS Compatible
• Break-Before-Make Switching
• Rail-to-Rail Signal Range
• Operation Temperature Range: -40℃ to 85℃
• Lead (Pb) Free SC70-6 Package

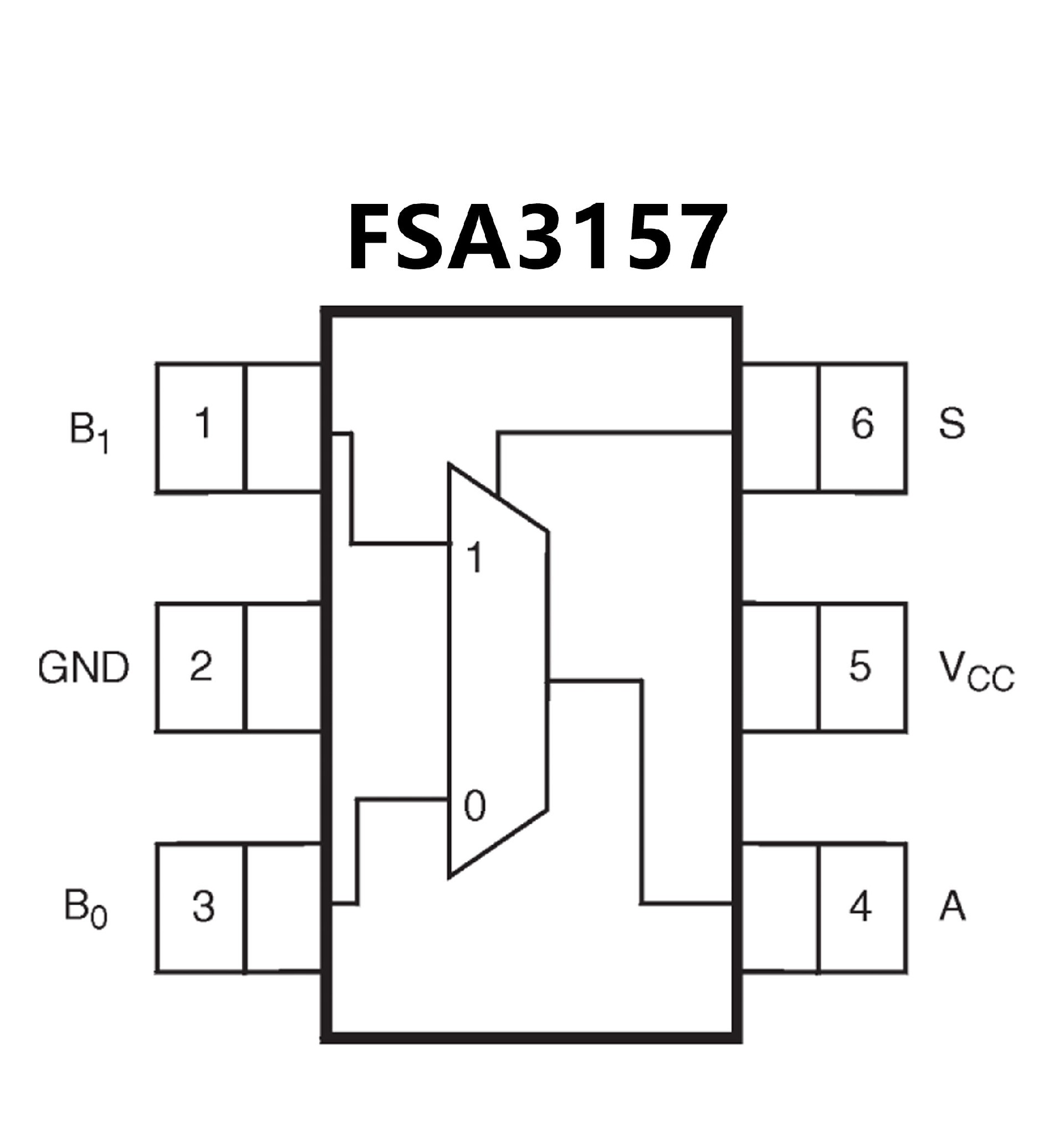

• Useful in Both Analog and Digital Applications
• Space-Saving, SC70 6-Lead Surface Mount Package
• Ultra-Small, MicroPak™ Leadless Package
• Low On Resistance: <10Ω on Typical at 3.3V VCC
• Broad VCC Operating Range: 1.65V to 5.5V
• Rail-to-Rail Signal Handling
• Power-Down, High-Impedance Control Input
• Over-Voltage Tolerance of Control Input to 7.0V
• Break-Before-Make Enable Circuitry
• 250MHz, 3dB Bandwidth
