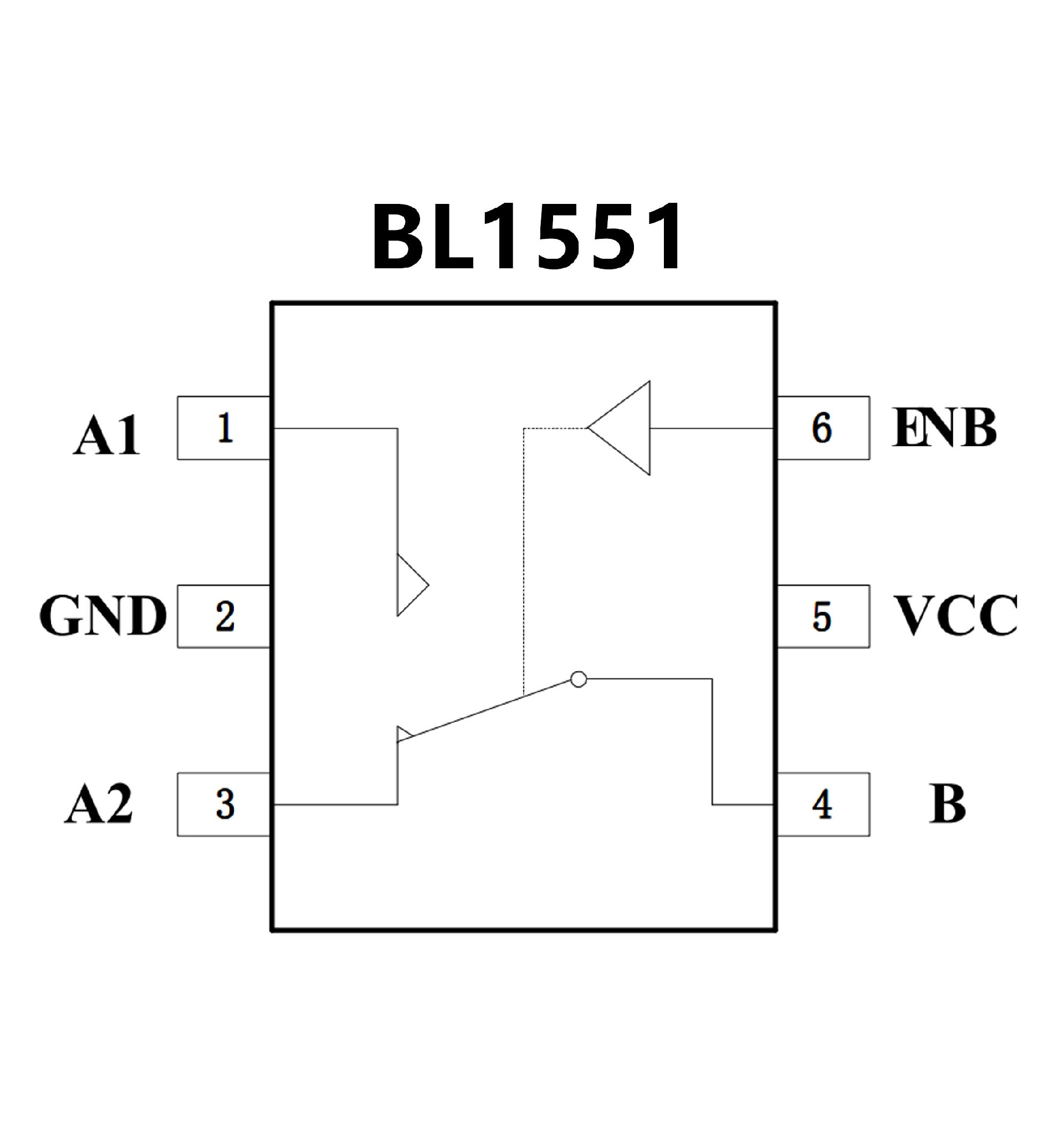

BL1551.pdf• Wide Power Supply Range: 1.8V to 5.5V
• High Bandwidth: 300MHz
• High Off-Isolation: 84dB at 1MHz 51dB at 10MHz
• On-Resistance: 2.7Ω(typ) at 5.0V
• Fast Switching Time ton = 12.0ns; toff = 5.0ns
• TTL/CMOS Compatible
• Break-Before-Make Switching
• Rail-to-Rail Signal Range
• Operation Temperature Range: -40℃ to 85℃
• Lead (Pb) Free SC70-6 Package
• High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V
• Low Power Dissipation: ICC = 2.0µA (Max) at TA = 25°C
• Standard CMOS Logic Levels
• High Bandwidth, Improved Linearity
• Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV
• May be used for Clock Switching, Data Multiplexing, etc.
• RON Typical = 3Ω @ VCC = 4.5 V
• Break Before Make Circuitry, Prevents Inadvertent Shorts
• 2 Devices can Switch Balanced Signal Pairs, e.g. LVDS＞200 Mb/s
• Latchup Performance Exceeds 300 mA
• Pin for Pin Drop in for NC7SB3157
• Tiny SC88 and WDFN6 Packages
• ESD Performance:
Human Body Model;＞ 2000 V;
Machine Model; ＞ 200 V
• NLVASB3157 Features Extended Automotive
Temperature Range; −55°C to +125°C (See Appendix A)
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
