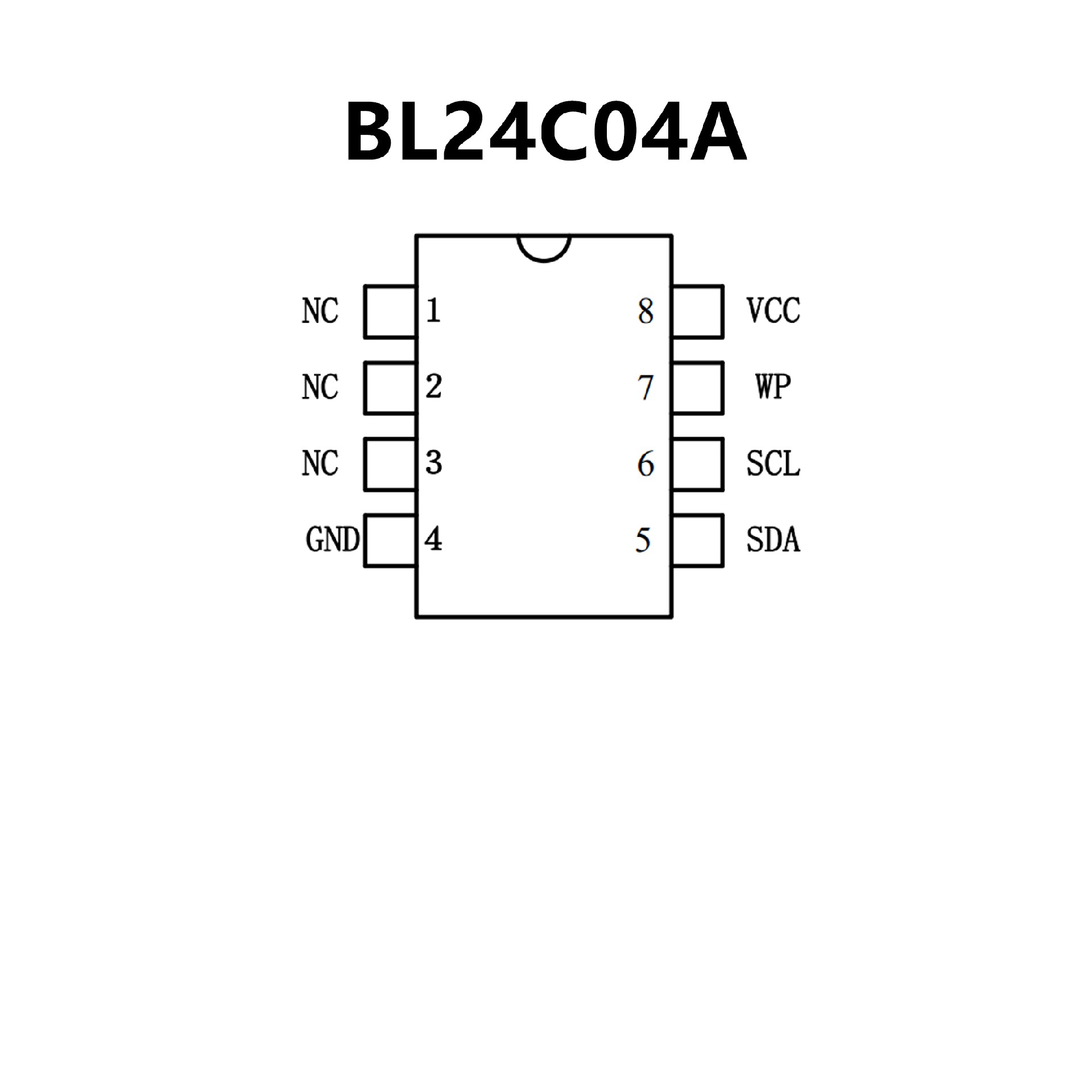

BL24C04A.pdf• Compatible with all I2C bidirectional
data
transfer protocol
• Memory array:
2K bits (256X 8) / 4K bits (512 X 8) / 8Kbits
(1024 X 8) / 16K bits (2048 X 8) ofEEPROM
Page size: 16 bytes
• Single supply voltage and high speed:
1 MHzRandom and sequential Read modes
• Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
• Write Protect Pin for Hardware Data Protection
• Schmitt Trigger, Filtered Inputs for NoiseSuppression
• High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Enhanced ESD/Latch-up protection
HBM 8000V
• TSOT23-5、8-lead PDIP/SOP/TSSOP and UDFNpackages

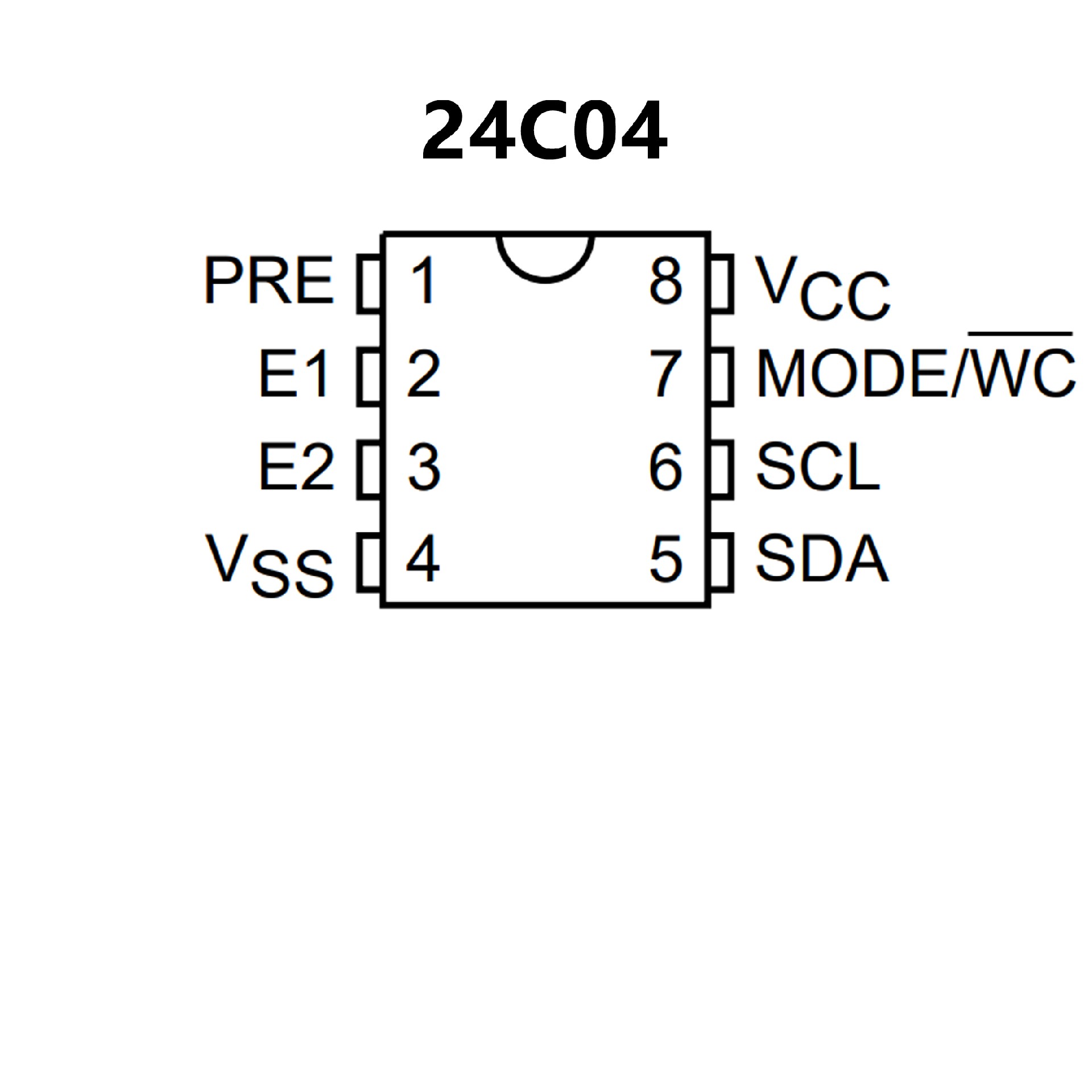

• 1million erase/write cycles with 40 years data retention
• Singlesupply voltage:
3V to5.5V for ST24x04 versions
2.5V to5.5V for ST25x04 versions
• Hardwarewrite control versions: st24w04 and st25w04
• Programmablewrite protection
• Twowire serial interface, fully i2c bus compatible
• Byteand multibyte write (up to 4 bytes)
• Page write(up to 8 bytes)
• Byte,random and sequential read modes
• Selftimed programming cycle
• Automaticaddress incrementing
• Enhancedesd/latch up performances
