BL24C64A.pdf• Compatible with all I2C bidirectional
data transfer protocol
• Memory array:
64 Kbits (8 Kbytes) of EEPROM
Page size: 32 bytes
• Single supply voltage and high speed:
1 MHz
• Random and sequential Read modes
• Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Enhanced ESD/Latch-up protection
HBM 8000V

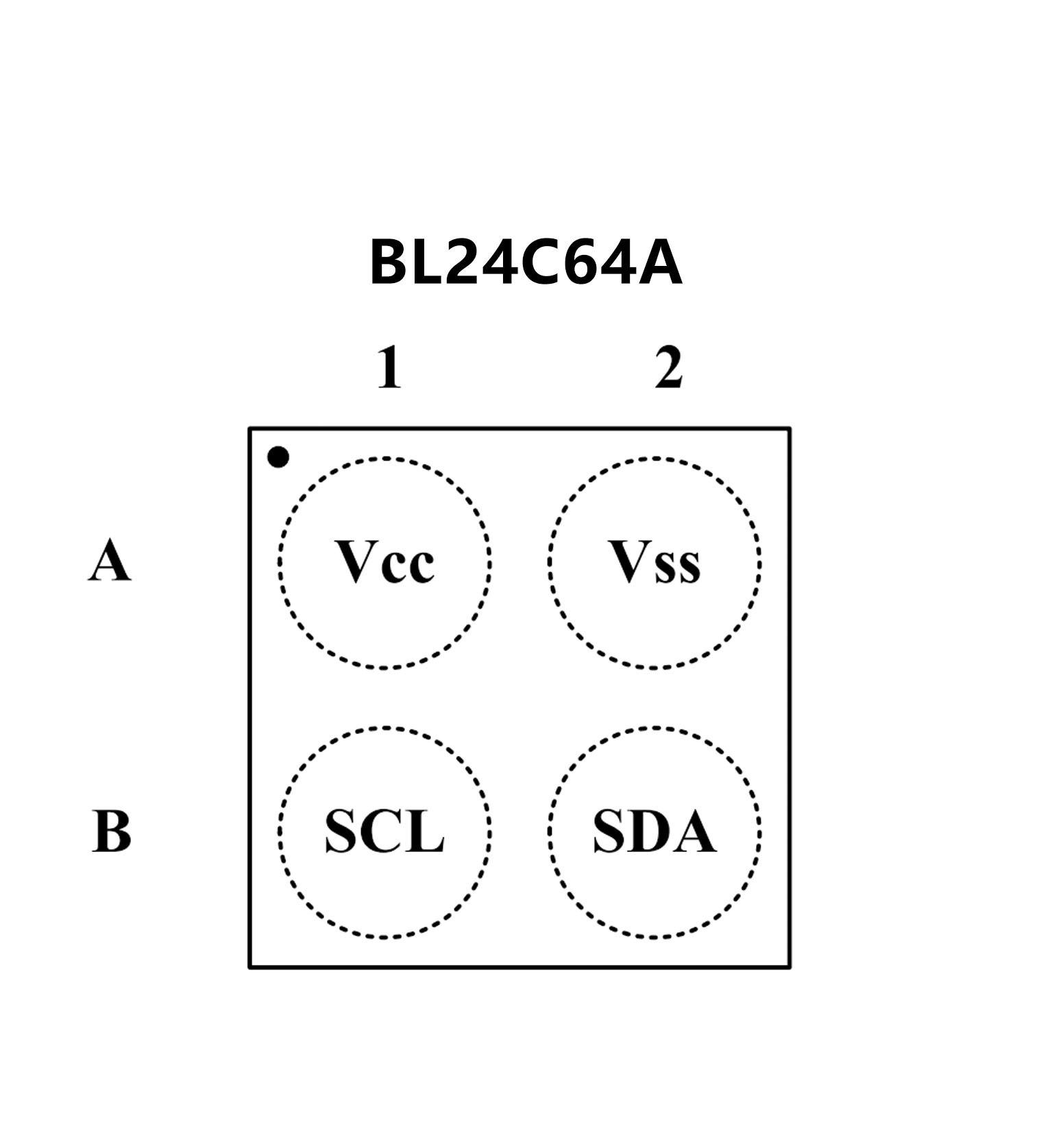

• WLCSP4 packages
• Supports Standard, Fast and Fast−Plus I2C Protocol
• 1.7 V to 5.5 V Supply Voltage Range
• 32−Byte Page Write Buffer
• Hardware Write Protection for Entire Memory
• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range

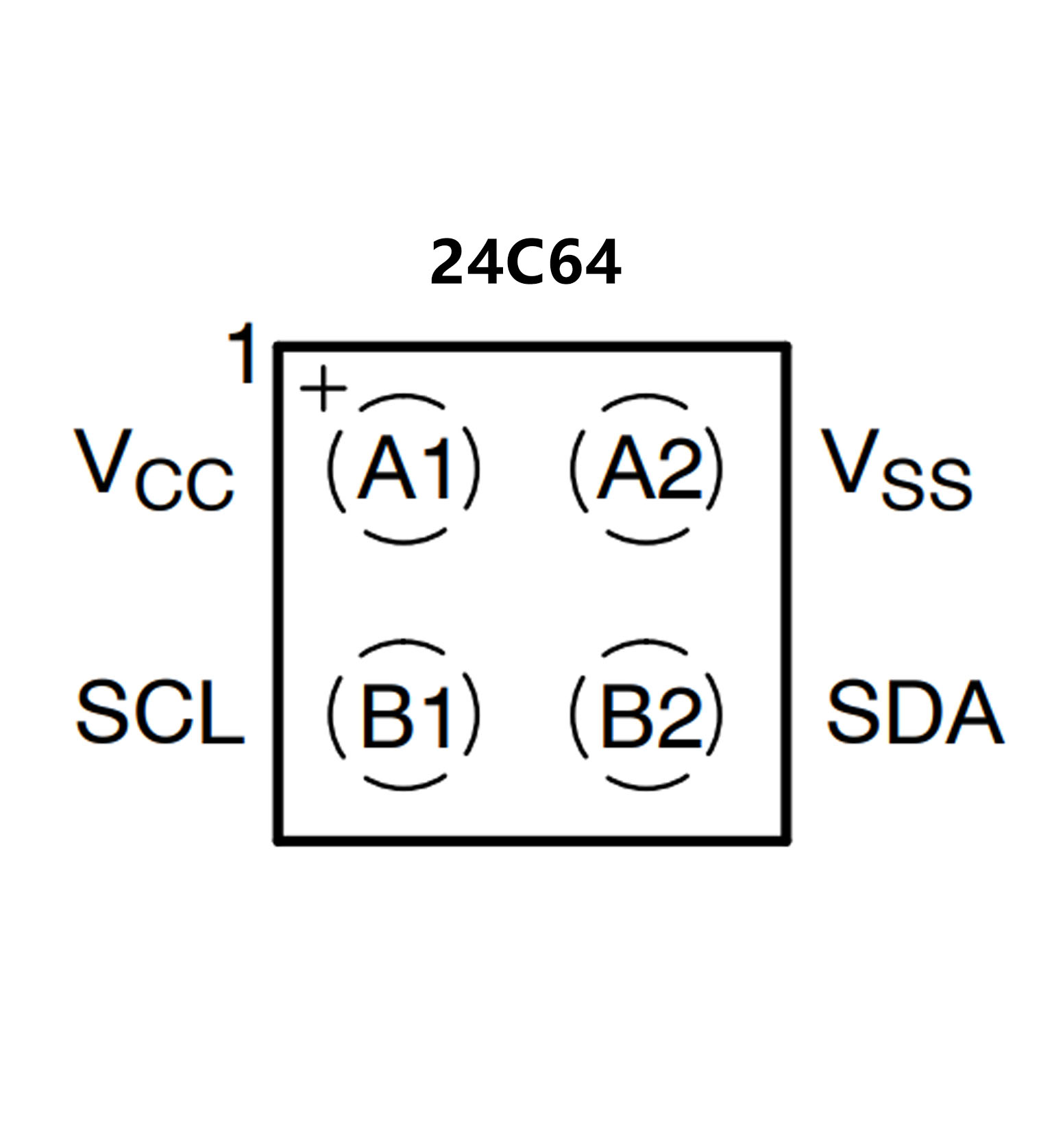

• SOIC, TSSOP, UDFN 8−pad and Ultra−thin WLCSP 4−bump Packages
• This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
