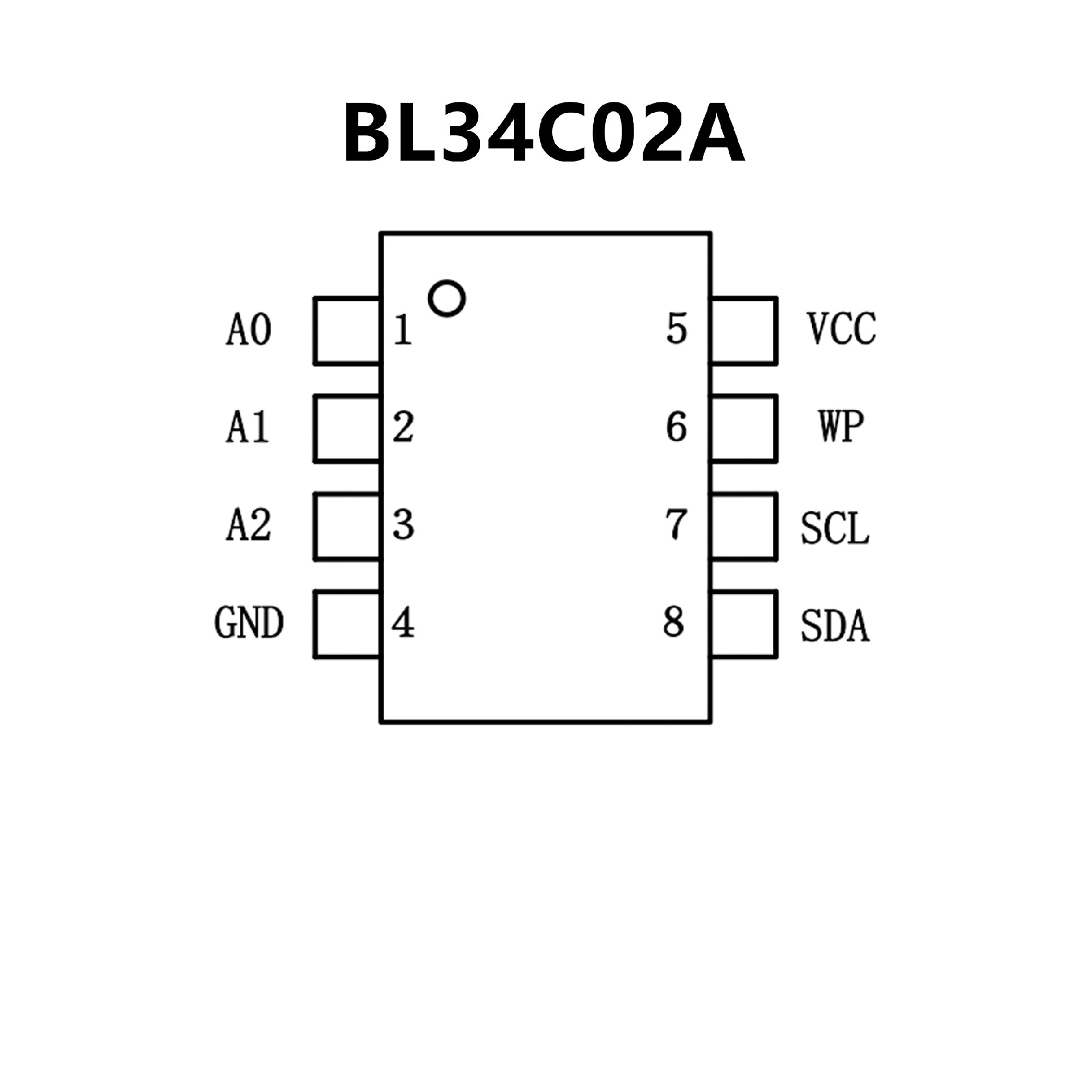

BL34C02A.pdf• Compatible with SMBus serial interface:
Up to 400 KHz transfer rate
• Memory array:
2 Kbits organized as two 128-byte blocks
• Software data protection for lower 128-byte
block
• Write:
Byte Write within 3 ms
16 bytes Page Write within 3 ms
• Schmitt Trigger, Filtered Inputs for Noise
Suppression
• Single supply voltage:
1.7 V to 3.6 V
• High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
• Enhanced ESD/latch-up protection
HBM 6000V
• Supports Standard and Fast I2C Protocol
• 1.7 V to 5.5 V Supply Voltage Range
• 16−Byte Page Write Buffer
• Hardware Write Protection for Entire Memory
• Software Write Protection for Lower 128 Bytes
• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
• Low power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range
• This Device is Pb−Free, Halogen Free/BFR Free and
RoHS
Compliant*
