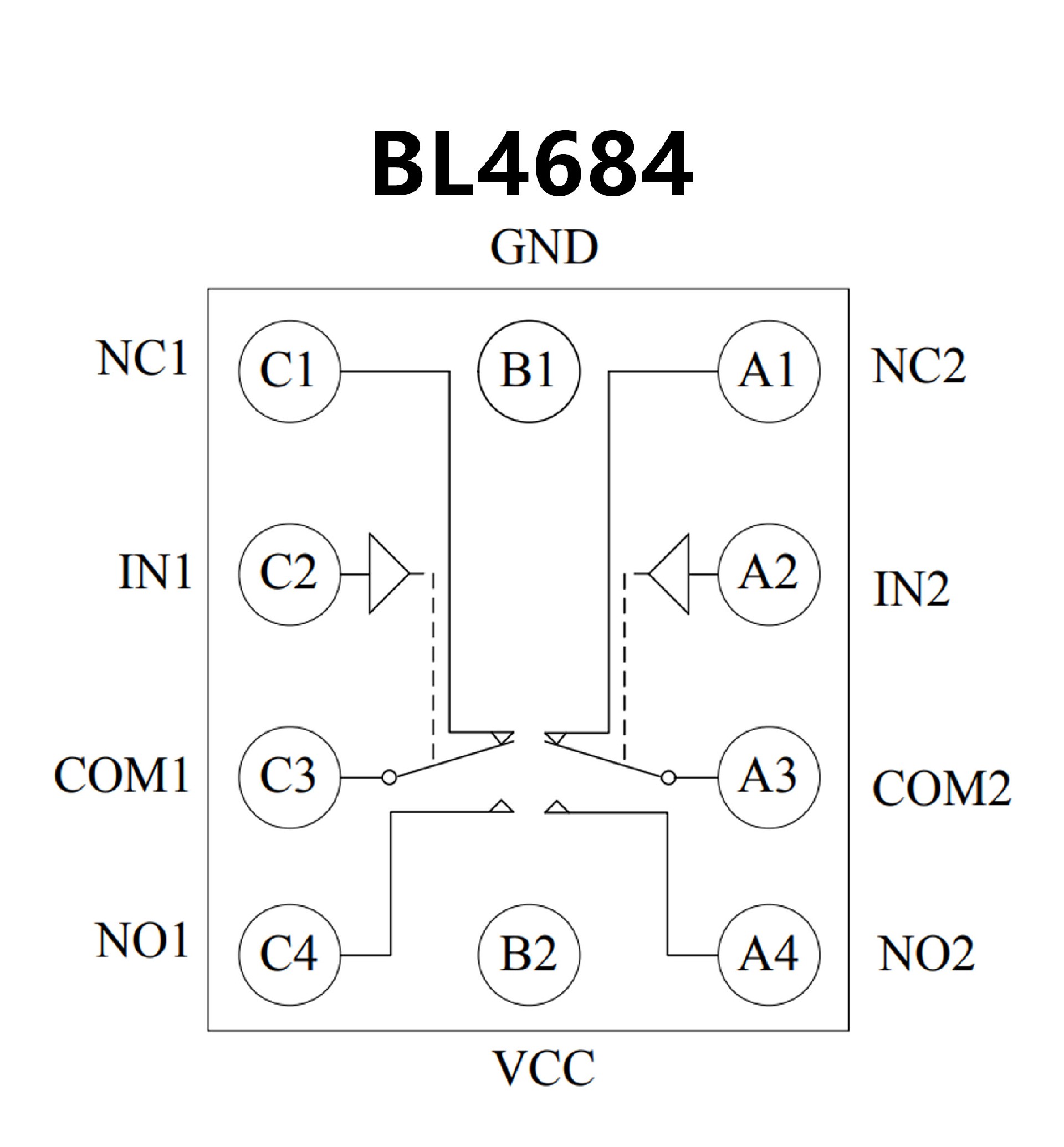

BL4684.pdf• Wide Power Supply Range:1.65V to 5.5V
• Low On-Resistance: RON(NC) = 0.4Ω
(VCC=2.7V) RON(NO) = 0.5Ω(VCC=2.7V)
• Low On-Resistance Flatness: RONF(NC) = 0.15Ω max
(VCC=2.7V) RONF(NO) = 0.25Ω max (VCC=2.7V)
• Rail-to-Rail Signal Range
• High Off-Isolation: -60dB (f=100 kHz)
• Crosstalk Rejection: -67dB
• Low Total Harmonic Distortion: 0.05%
• Lead(Pb) Free CSP-10 Packaging
• 12-Bump, 0.5mm-Pitch UCSP
• NC Switch RON

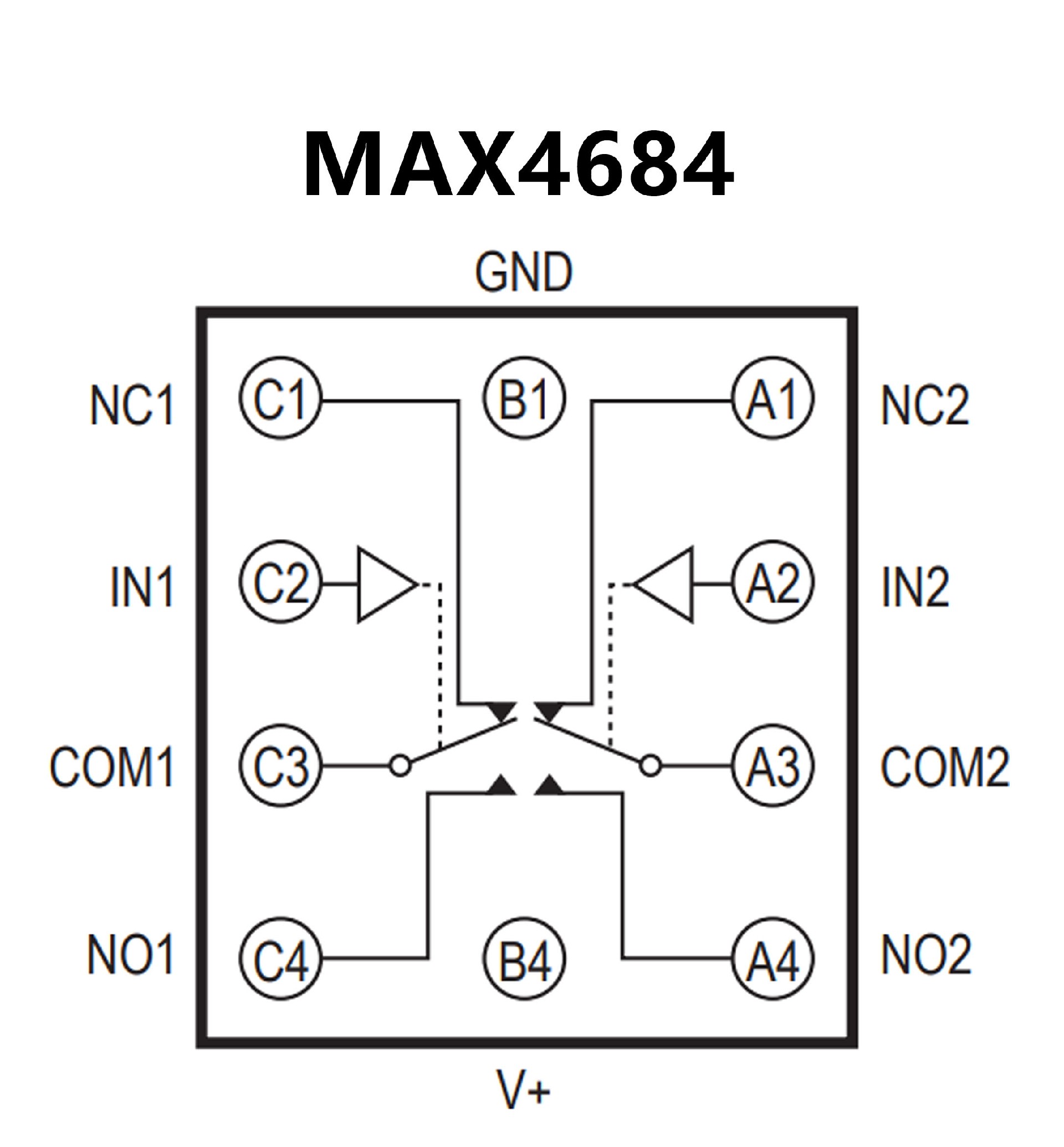

• 0.5Ω max (+2.7V Supply) (MAX4684)
• 0.8Ω max (+2.7V Supply) (MAX4685)
• NO Switch RON
• 0.8Ω max (+2.7V Supply)
• RON Match Between Channels
• 0.06Ω (max)
• RON Flatness Over Signal Range
• 0.15Ω (max)
• +1.8V to +5.5V Single-Supply Operation
• Rail-to-Rail Signal Handling
• 1.8V Logic Compatibility
• Low Crosstalk: -68dB (100kHz)
• High Off-Isolation: -64dB (100kHz)
• THD: 0.03%
• 50nA (max) Supply Current
• Low Leakage Currents
• 1nA (max) at TA = +25°C
