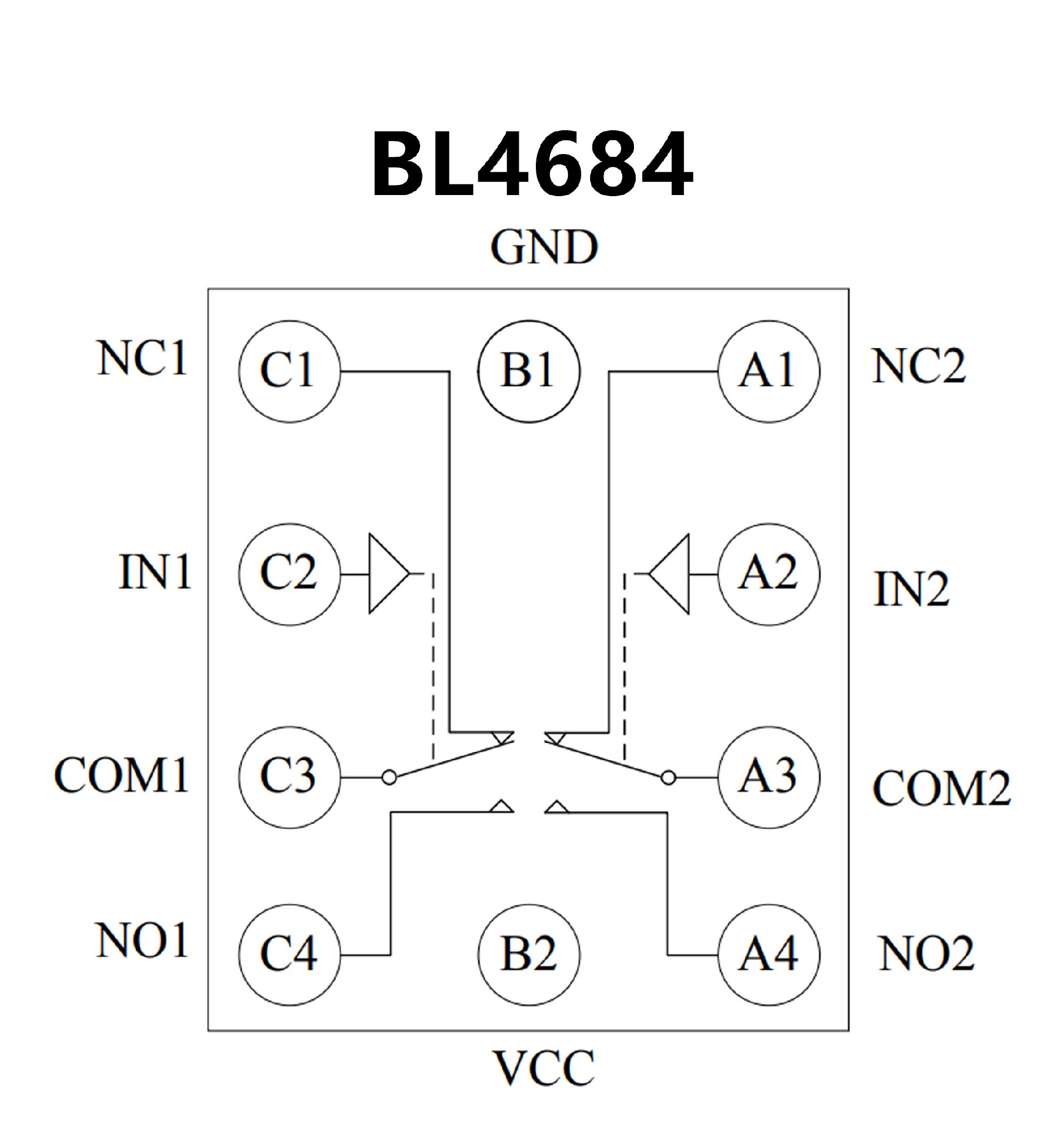

BL4684.pdf• Wide Power Supply Range:1.65V to 5.5V
• Low On-Resistance: RON(NC) = 0.4Ω
(VCC=2.7V) RON(NO) = 0.5Ω(VCC=2.7V)
• Low On-Resistance Flatness: RONF(NC) = 0.15Ω max
(VCC=2.7V) RONF(NO) = 0.25Ω max (VCC=2.7V)
• Rail-to-Rail Signal Range
• High Off-Isolation: -60dB (f=100 kHz)
• Crosstalk Rejection: -67dB
• Low Total Harmonic Distortion: 0.05%
• Lead(Pb) Free CSP-10 Packaging
• CMOS Technology for Bus and Analog Applications

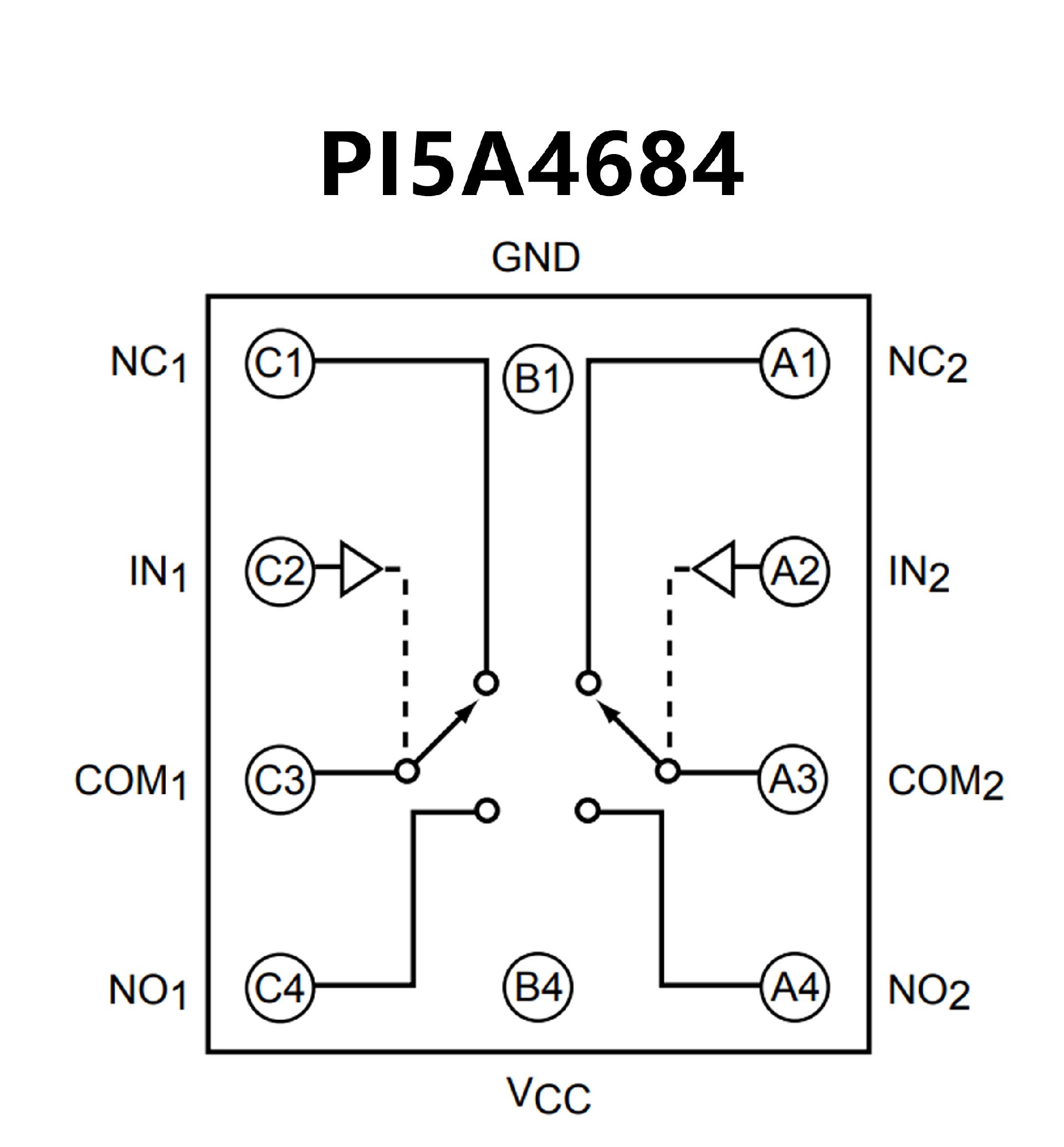

• Low On-Resistance: 0.5Ω.
• Wide VCC Range: 1.65V to 5.5V
• Rail-to-Rail Signal Range
• Control Input Overvoltage Tolerance: 5.5V min.
• High Off Isolation: -42dB
• Crosstalk Rejection Reduces Signal Distortion: -70dB
• Low THD (0.05% @ VCC = 2.7V)
• Break-Before-Make Switching
• Extended Industrial Temperature Range: –40°C to 85°C
• Packaging (Pb-free & Green):
10-ball Chip Scale Packaging (CSP)
