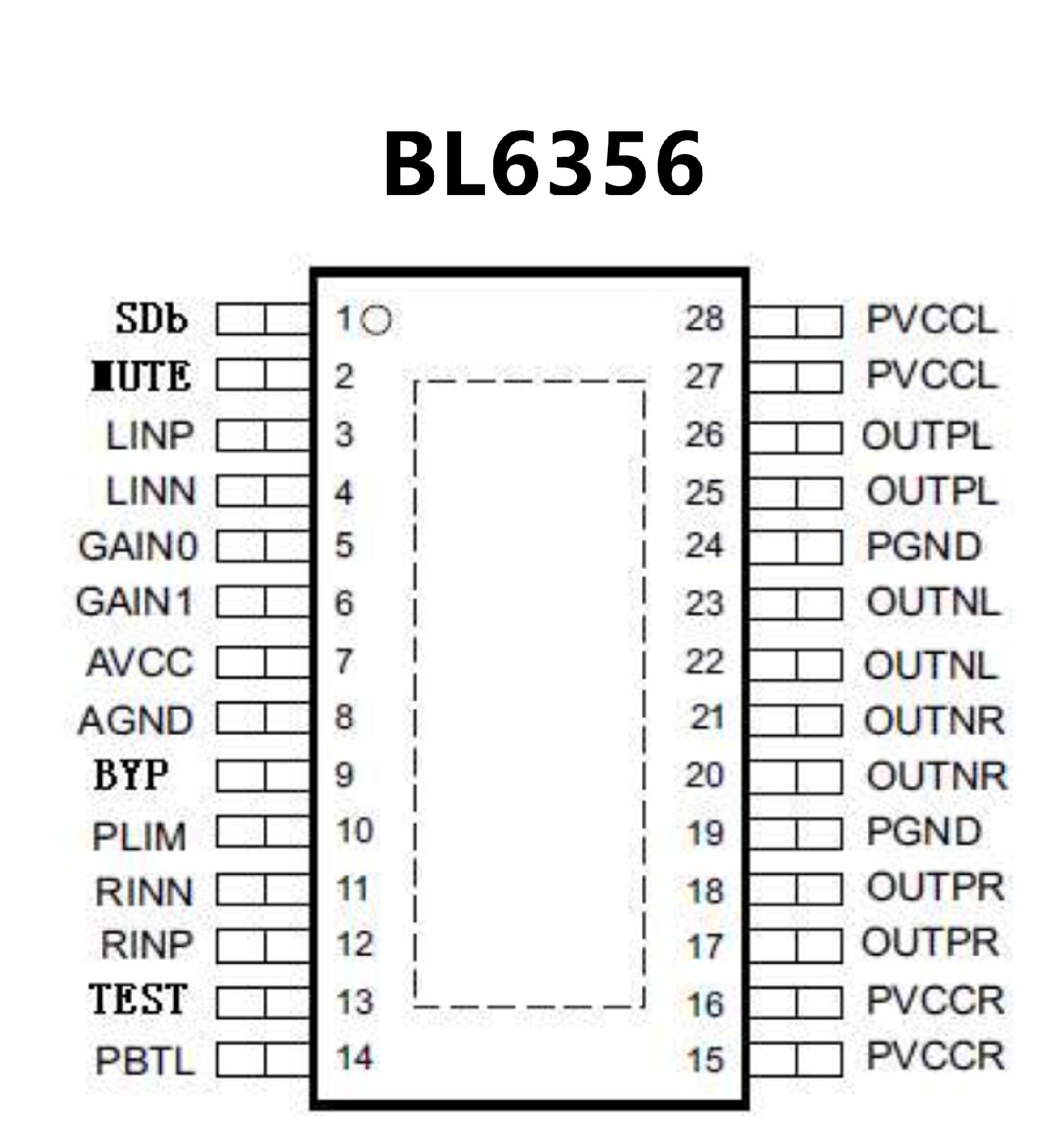

BL6356.pdf• 输出功率 2*10W（12V, RL=8Ω, THD+N=10%）
• 4阶可选增益控制
• 宽电压工作范围：4V-12V
• 高效率（88%@RL=8Ω,Po=4W）
• 过流、过温保护
• ETSSOP28封装

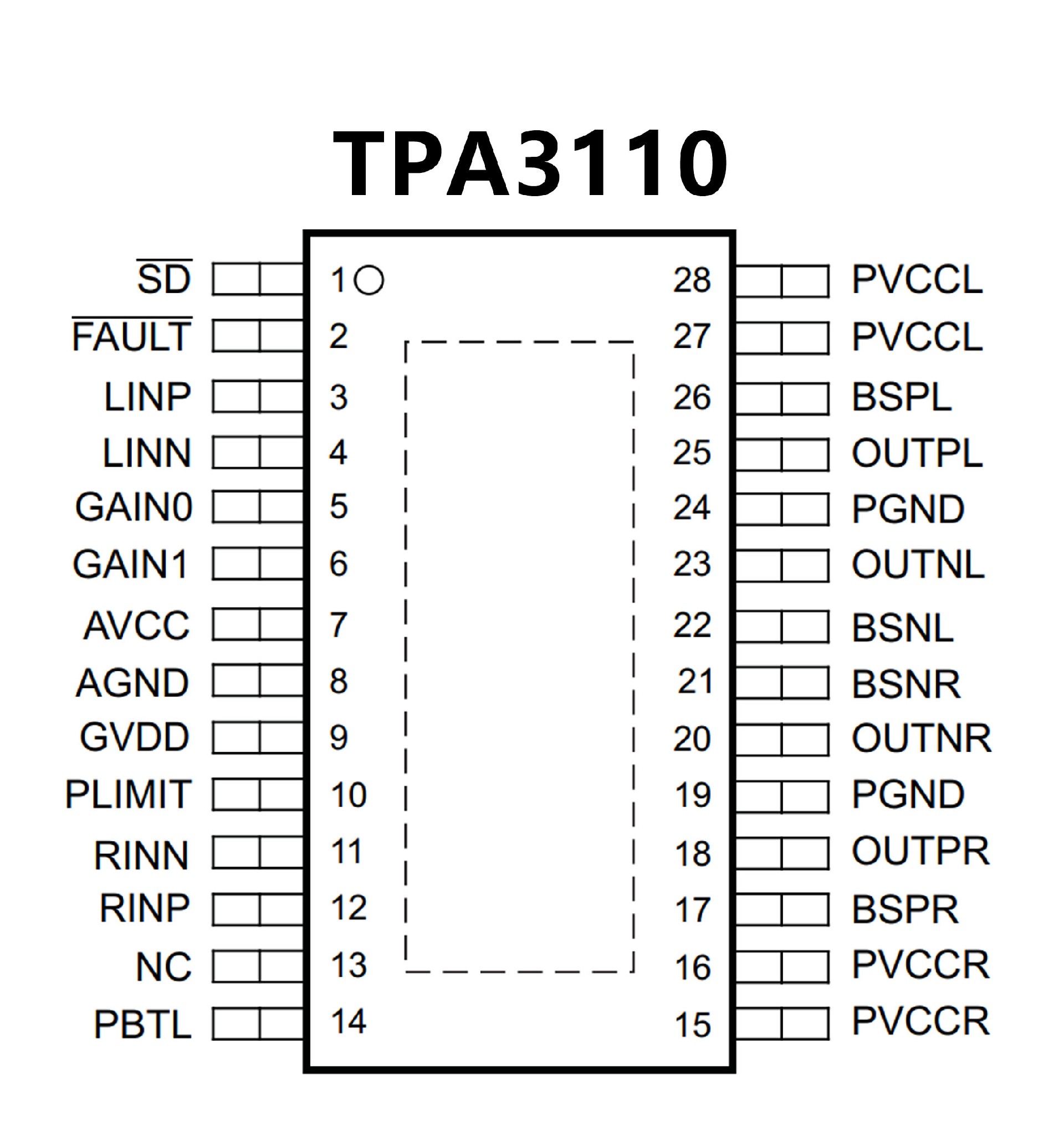

• 15-W/ch into an 8-Ω Loads at 10% THD+N Froma 16-V Supply
• 10-W/ch into 8-Ω Loads at 10% THD+N From a13-V Supply
• 30-W into a 4-Ω Mono Load at 10% THD+N Froma 16-V Supply
• 90% Efficient Class-D Operation Eliminates Needfor Heat Sinks
• Wide Supply Voltage Range Allows OperationFrom 8 V to 26 V
• Filter-Free Operation
• SpeakerGuard™ Speaker Protection IncludesAdjustable
Power Limiter Plus DC Protection
• Flow Through Pin Out Facilitates Easy BoardLayout
• Robust Pin-to-Pin Short Circuit Protection andThermal
Protection With Auto Recovery Option
• Excellent THD+N / Pop-Free Performance
• Four Selectable, Fixed Gain Settings
• Differential Inputs
