Low-Power Single and Dual-Channel Digital Isolators, BL7122 Replace Si8621.
BL7122
BL7122.pdf
FEATURES
• 100Mbps 信号传输速率
• 强大的隔离性能
±100kV/µs CMTI(典型值)
3.75kVRMS 隔离耐压
>50 年的隔离栅寿命
高达 8kV 的抗浪涌能力
• 宽电源电压范围:2.5V 至 5.5V
• 2.5V 至 5.5V 电平转换
• 宽温度范围:-40℃ to 125℃
• 默认输出高电平(H)和低电平(L)选项
• 低传播延迟:11ns(典型值,5V 供电)
• 低脉宽失真:3ns

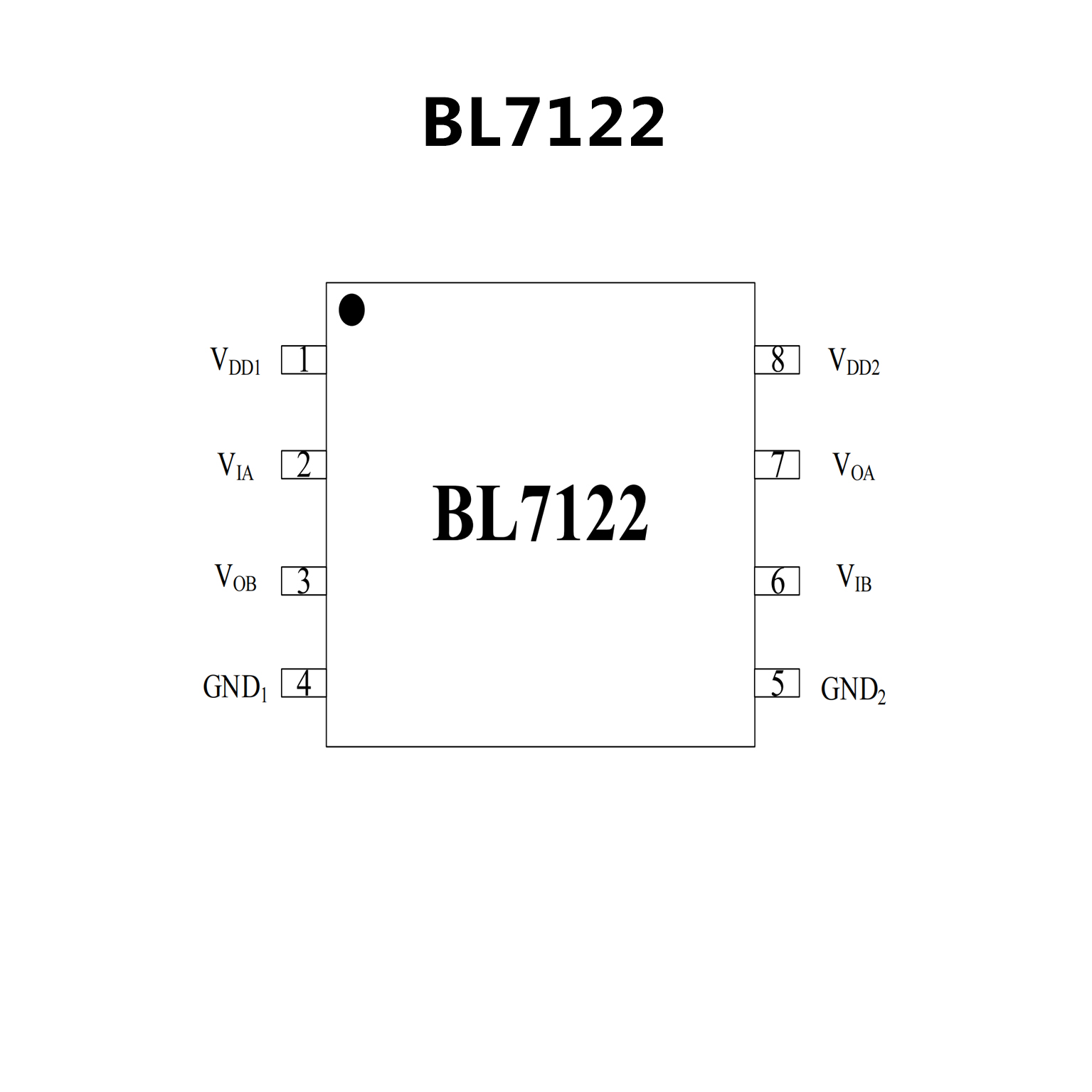

PIN CONFIGUTION

优势替代
FEATURES
• High-speed operation
DC to 150 Mbps
• No start-up initialization required
• Wide Operating Supply Voltage
2.5–5.5 V
• Up to 5000 VRMS isolation
• Reinforced VDE 0884-10, 10 kV surge
capable (Si862xxT)
• 60-year life at rated working voltage
• High electromagnetic immunity
• Ultra low power (typical)
5 V Operation
1.6 mA per channel at 1 Mbps
5.5 mA per channel at 100 Mbps
2.5 V Operation
1.5 mA per channel at 1 Mbps
3.5 mA per channel at 100 Mbps
• Schmitt trigger inputs
• Selectable fail-safe mode
Default high or low output (ordering option)
• Precise timing (typical)
• 10 ns propagation delay
1.5 ns pulse width distortion
0.5 ns channel-channel skew
2 ns propagation delay skew
5 ns minimum pulse width
• Transient Immunity 50 kV/µs
• AEC-Q100 qualification
• Wide temperature range
–40 to 125 °C
• RoHS-compliant packages
WB SOIC-16
SOIC-8
DFN-8 compact package
• Automotive-grade OPNs available
• AIAG compliant PPAP documentation support
• IMDS and CAMDS listing support

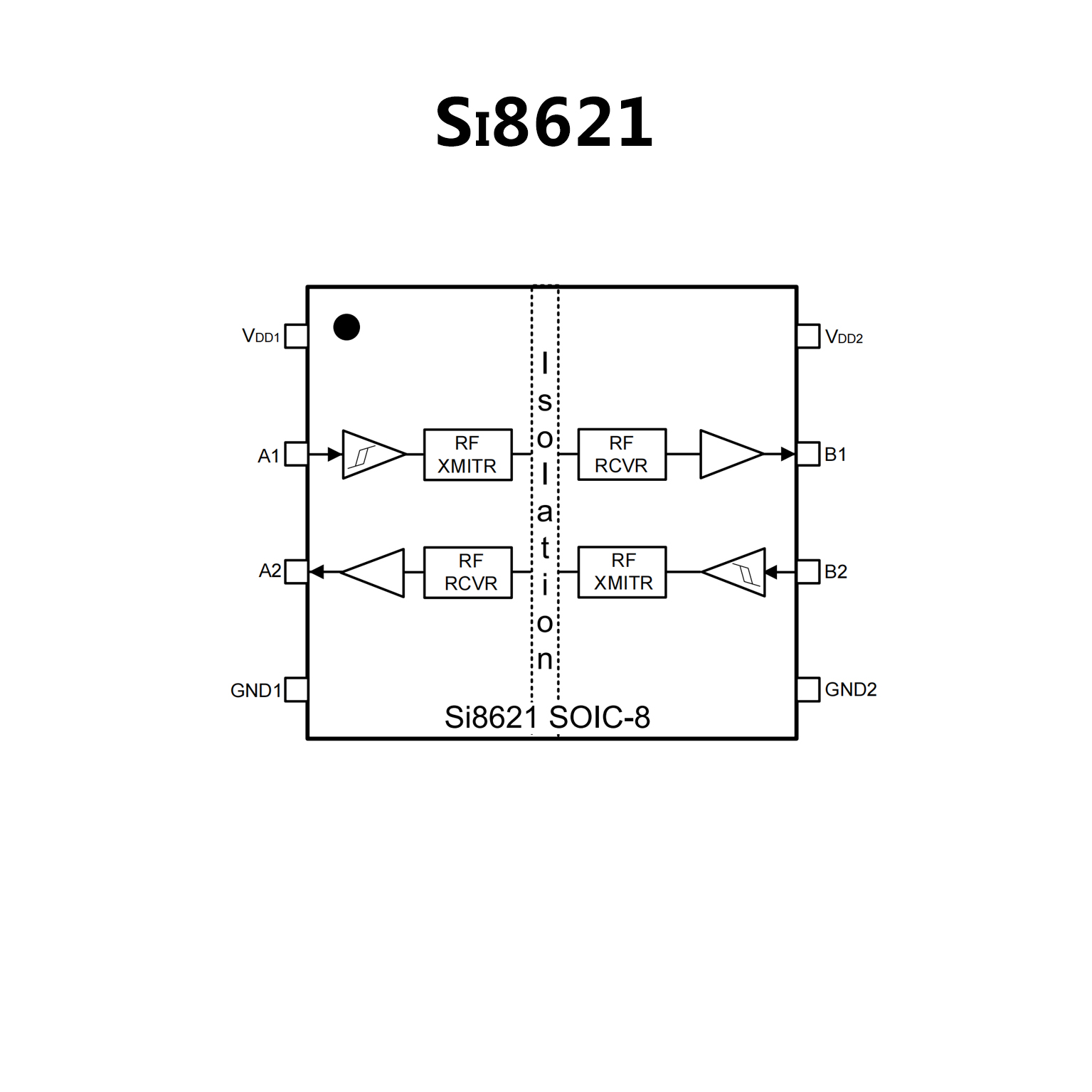

PIN CONFIGUTION
