1.5A 2MHz 6V Synchronous Buck Converter, BL8028 Replace RT8008.
BL8028
BL8028.pdf
BL8028.pdfFEATURES
• High Efficiency: Up to 97%
• Capable of Delivering 1.5A
• 2MHz Switching Frequency
• No External Schottky Diode Needed
• Low dropout 100% Duty operation
• Internal Compensation and Soft-Start
• Current Mode control
• 0.6V Reference for Low Output voltages
• Logic Control Shutdown (IQ<1µA)
• Thermal shutdown, UVLO
• Available in SOT23-5 and the tiny DFN2*2-6

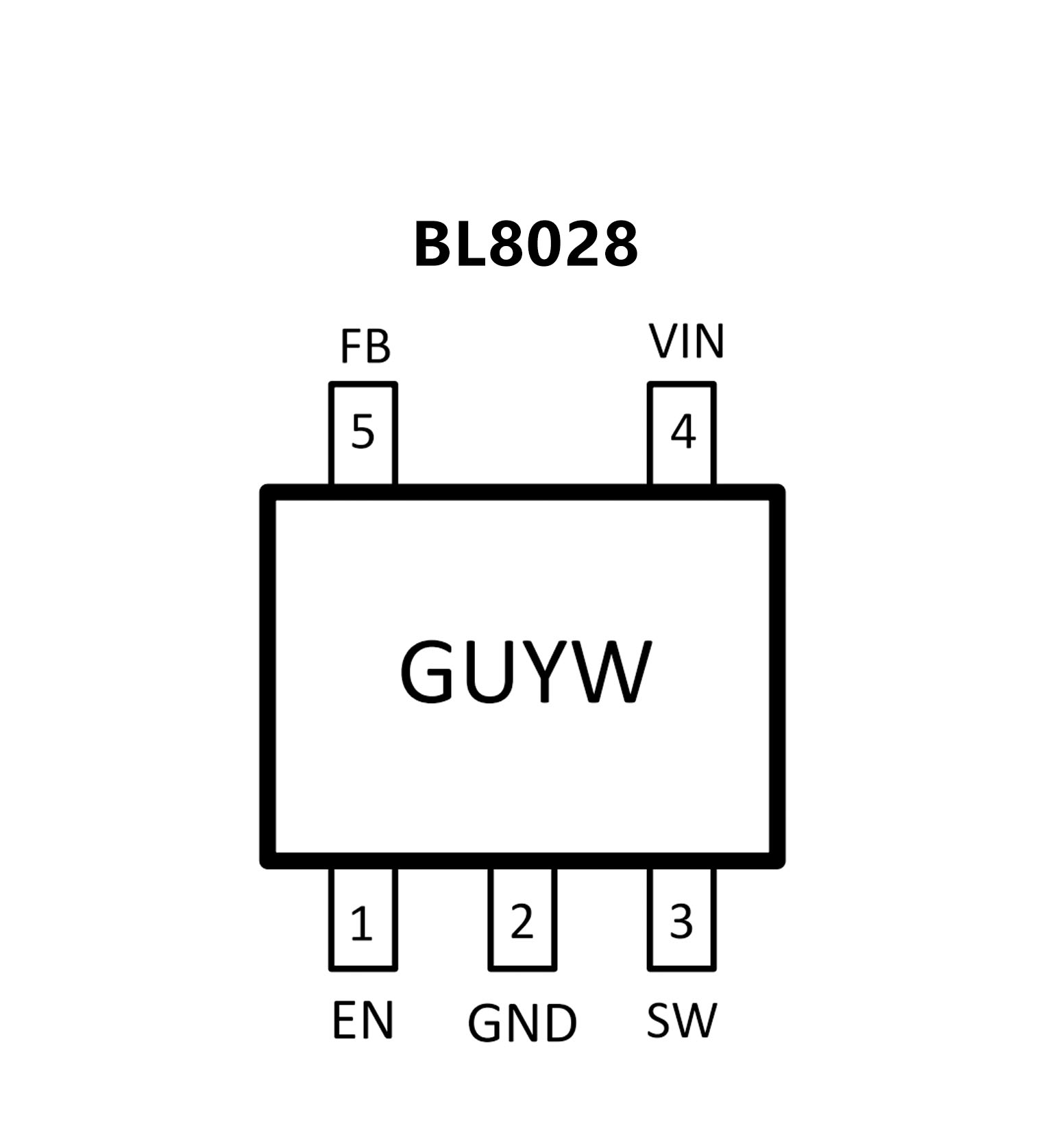

PIN CONFIGUTION
优势替代
FEATURES
• 2.5V to 5.5V Input Range
• Adjustable Output From 0.6V to VIN
• 1.0V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V
Fixed/
Adjustable Output Voltage
• 600mA Output Current, 1A Peak Current
• 95% Efficiency
• No Schottky Diode Required
• 1.5MHz Fixed Frequency PWM Operation
• Small SOT-23-5 and TSOT-23-5 Package
• RoHS Compliant and 100% Lead (Pb)-Free

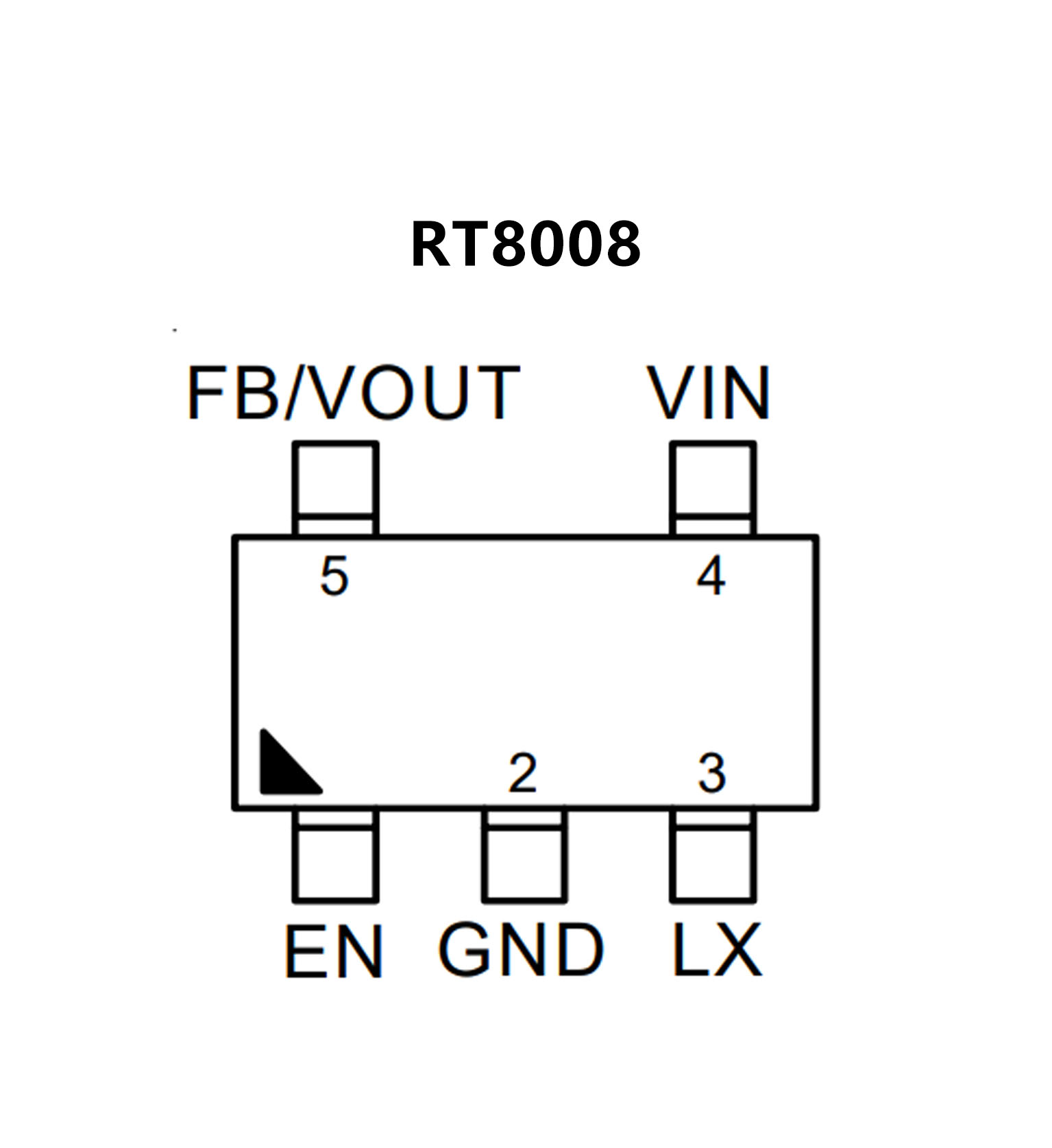

PIN CONFIGUTION
