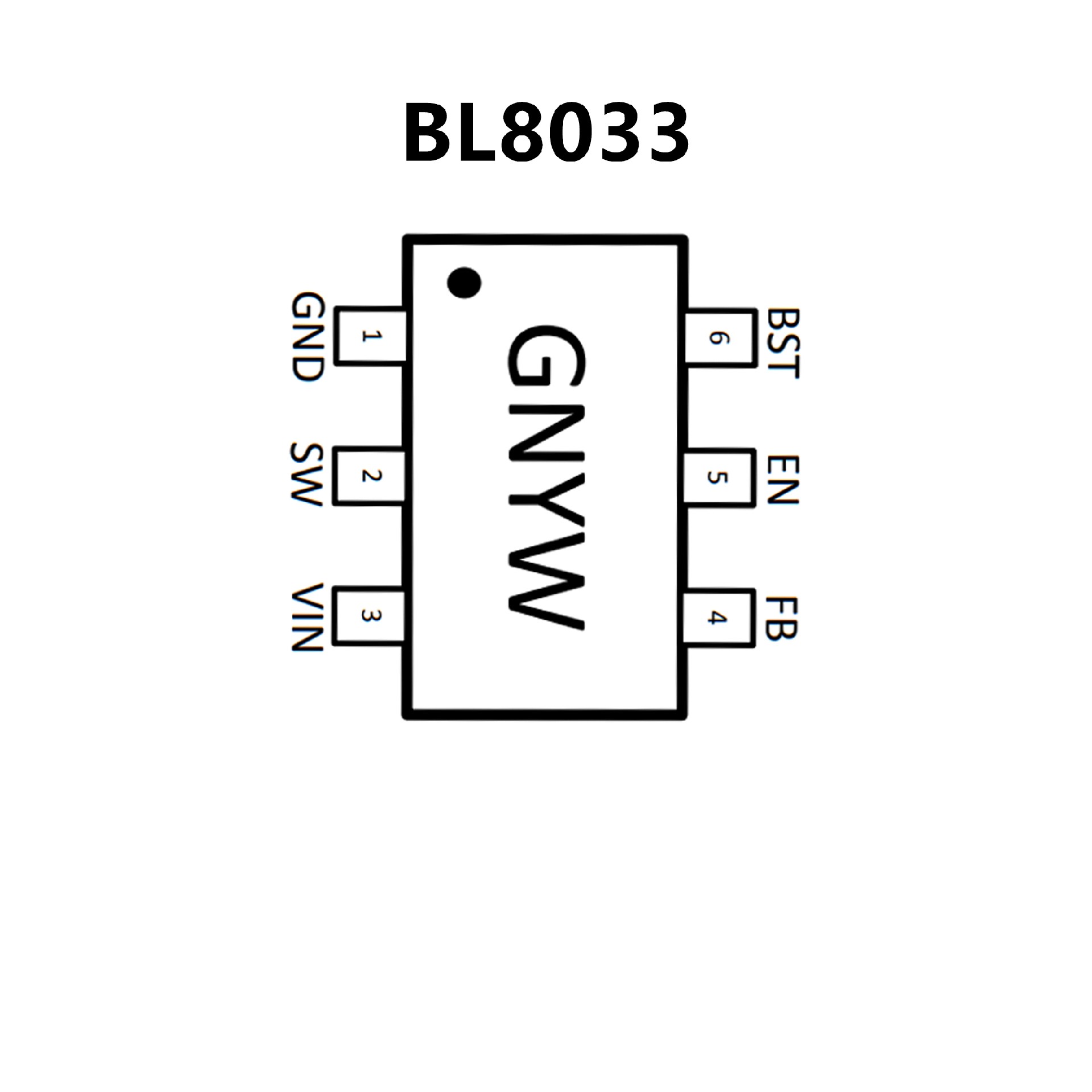

BL8033.pdf• High Efficiency: Up to 96%
• 500KHz Frequency Operation
• 3A Output Current
• No Schottky Diode Required
• 4.2V to 16V Input Voltage Range
• 0.8V Reference
• Slope Compensated Current Mode Control for
Excellent Line and Load Transient Response
• Integrated internal compensation
• Stable with Low ESR Ceramic Output Capacitors
• Over Current Protection with Hiccup-Mode
• Thermal Shutdown
• Inrush Current Limit and Soft Start
• Available in SOT23-6
• -40°C to +85°C Temperature Range

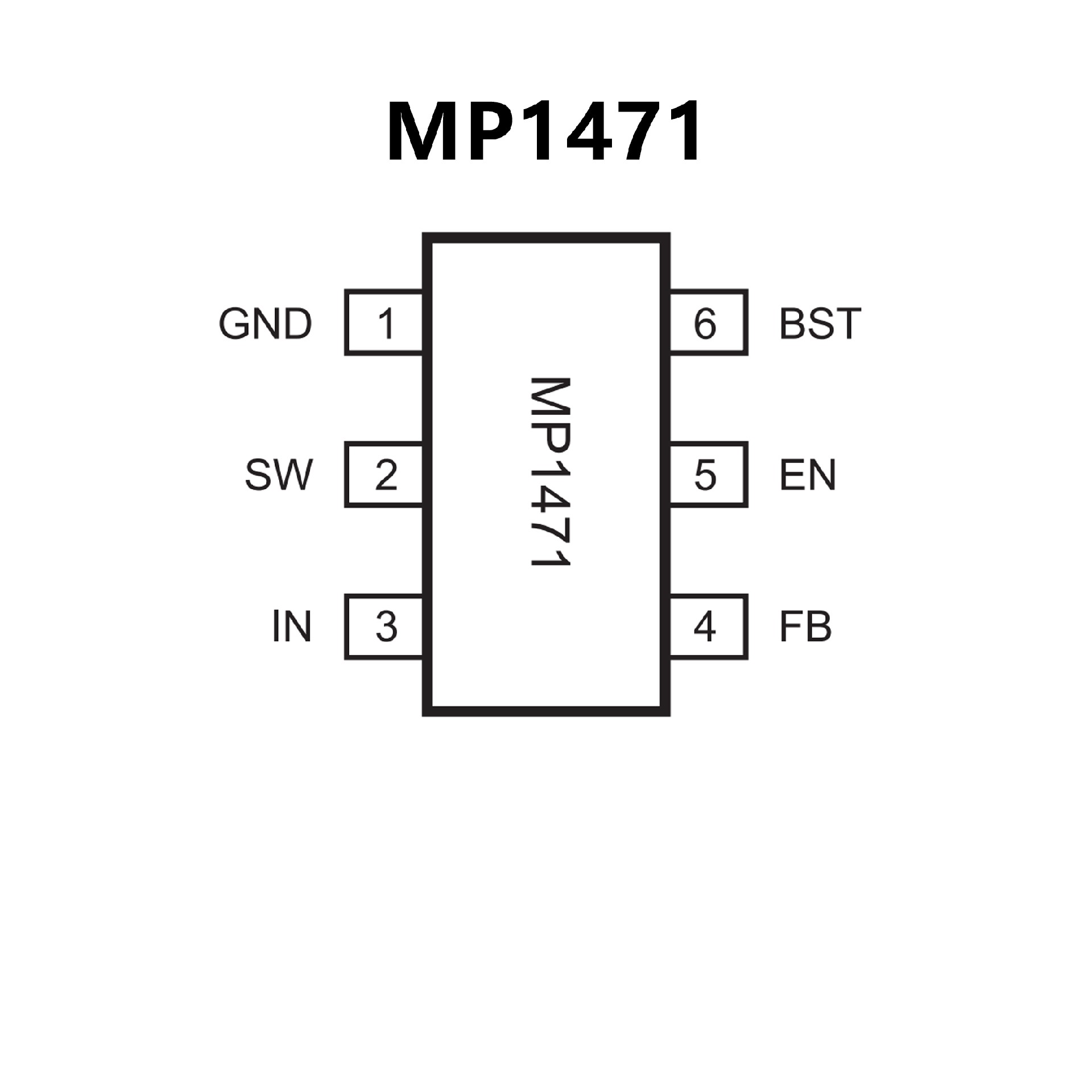

• Wide 4.7V-to-16V Operating Input Range
• 150mΩ/70mΩ Low-RDS(ON) Internal PowerMOSFETs
• Proprietary Switching-Loss–ReductionTechnology
• High-Efficiency Synchronous-ModeOperation
• Fixed 500kHz Switching Frequency
• Internal AAM Power-Save Mode for
HighEfficiency at Light Load
• Internal Soft-Start
• Over-Current Protection and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V
• Available in a 6-pin TSOT-23 package
