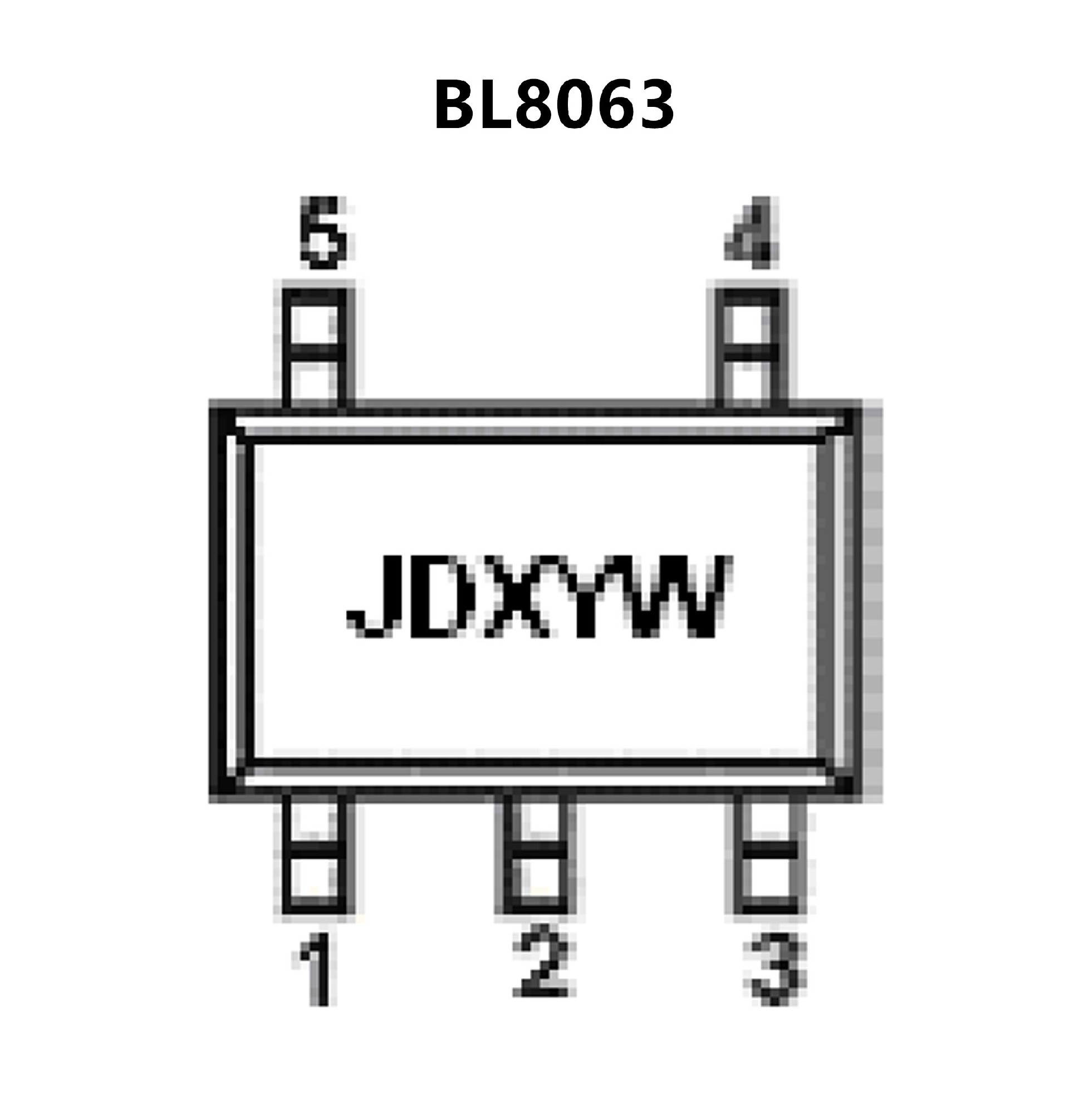

BL8063.pdf• Input voltage range: 2 – 6V
• Output voltage range: 1.0V~4.5V
(customizedon command every 0.1V step)
• Low power consumption: 35uA (Typ.)
• Low output noise (47uVRMS)
• Shutdown mode: 0.1uA
• Low dropout voltage: 300mV@300mA (Typ.)
• High ripple rejection:70dB@1KHz (Typ.)
• Low temperature coefficient: ±100ppm/℃
• Excellent line regulation: 0.05%/V
• Build-in chip enable circuit
• Highly accurate: ±2%
• Output current limit
• Fold-back output short circuit protection
• Low-Noise for RF Application
• Fast Response in Line/Load Transient
• Quick Start-Up (Typically 50μs)
• < 0.01μA Standby Current When Shutdown

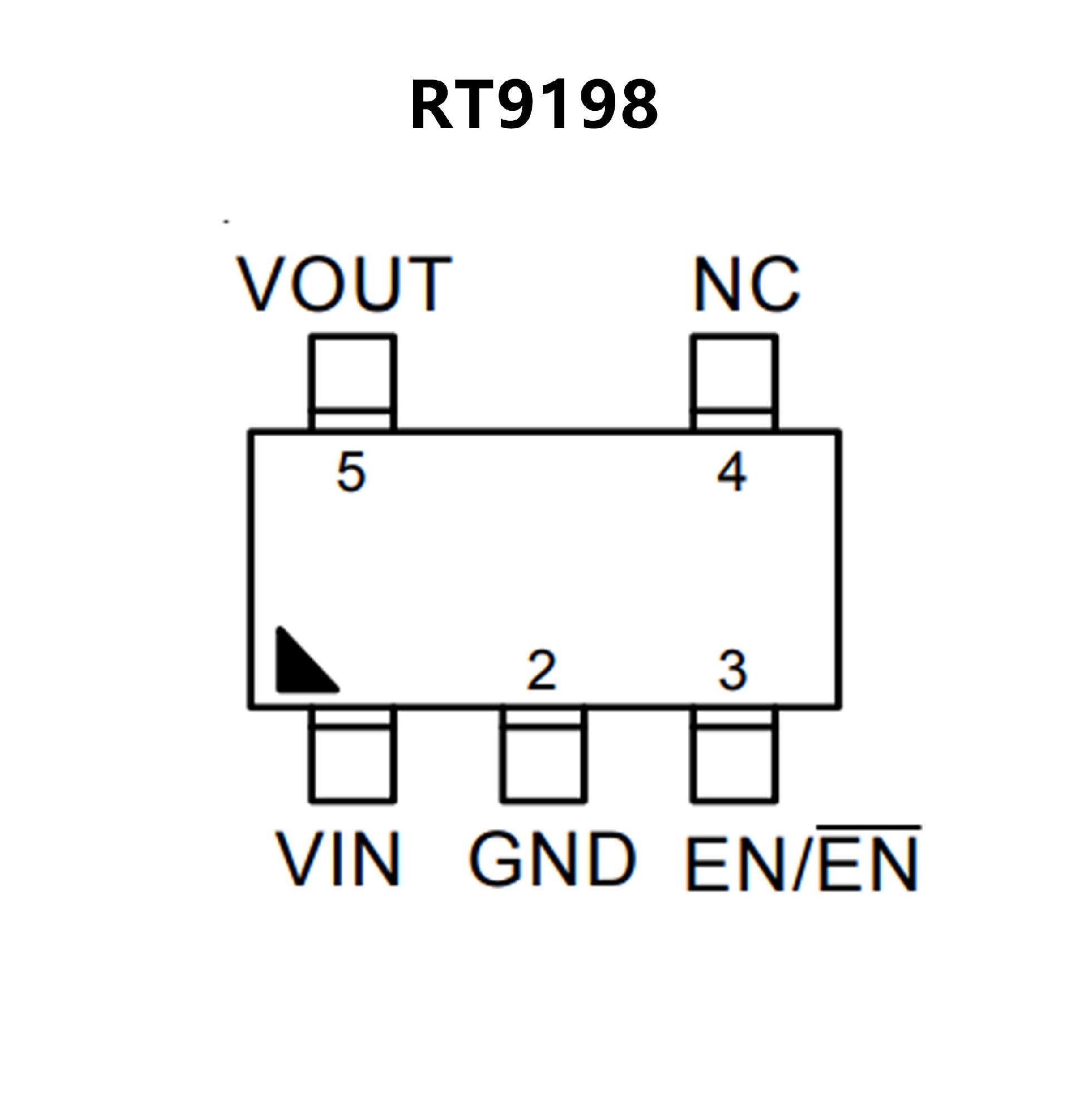

• Low Dropout : 220mV @ 300mA
• Wide Operating Voltage Ranges : 2.5V to 5.5V
• TTL-Logic-Controlled Shutdown Input
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1μF Output Capacitor Required for Stability
• High Power Supply Rejection Ratio
• Custom Voltage Available
• RoHS Compliant and 100% Lead (Pb)-Free
