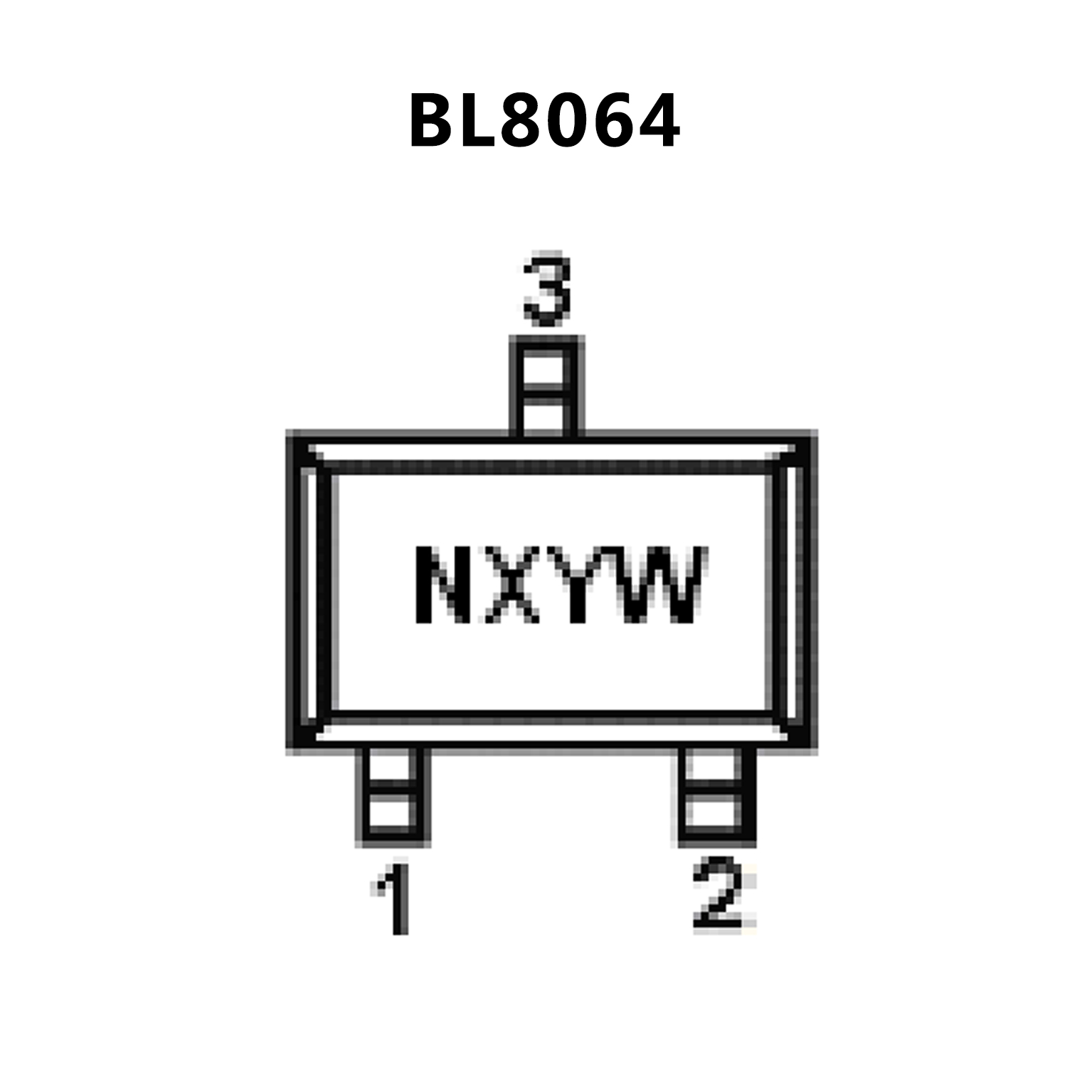

BL8064.pdf• Low Power Consumption:1.0µA（Typ.）
• Maximum Output Current:200mA
• Small Dropout Voltage
• 210mV@100mA (VOUT=2.8V)
• 430mV@200mA (VOUT=2.8V)
• Input Voltage Range:1.5V~6V
• Output Voltage Range:1.1V~5.5V
(customizedon command in 0.1V steps)
• Highly Accurate:±2% (±1% customized）
• Output Current Limit
• Maximum Output Current: 200mA (3.0V type)
• Dropout Voltage : 250mV @ 100mA (3.0V type)
• Maximum Operating Voltage : 6.0V
• Output Voltage Range: 1.2V ~ 5.0V (0.1V increments)
• Highly Accurate :±2%@VOUT≧1.5V
+30mV@VOUT<1.5V(+1% @VOUT>2.0V)
• Low Power Consumption : 1.0μA (TYP.)
• Low ESR Capacitor : Ceramic capacitor compatible
• Protection: Current Limit Circuit Built-in
• Operating Ambient Temperature : -40℃~ +85℃
• Packages: SOT-23SOT-89USP-6B
• Environmentally Friendly: EU RoHS Compliant, Pb Free
