500mA High PSRR, Low Dropout Voltage Linear Regulator,BL8565 Replace FS8853.
BL8565
BL8565.pdf
BL8565.pdfFEATURES
• Low Power Consumption: 20μA（Typ.）
• Low output noise (47uVRMS)
• Low dropout Voltage: 0.16V@300mA (Typ.)
• High Ripple Rejection: 73dB@100Hz (Typ.)
• Low Temperature Coefficient: ± 100ppm/°C
• Excellent Line regulation: 0.05%/V
• Build-in chip enable and discharge circuit
• Output Voltage Range: 1.5V~4.5V
(customized on command every 0.1V step)
• Highly Accurate: ±2% • Output Current Limit

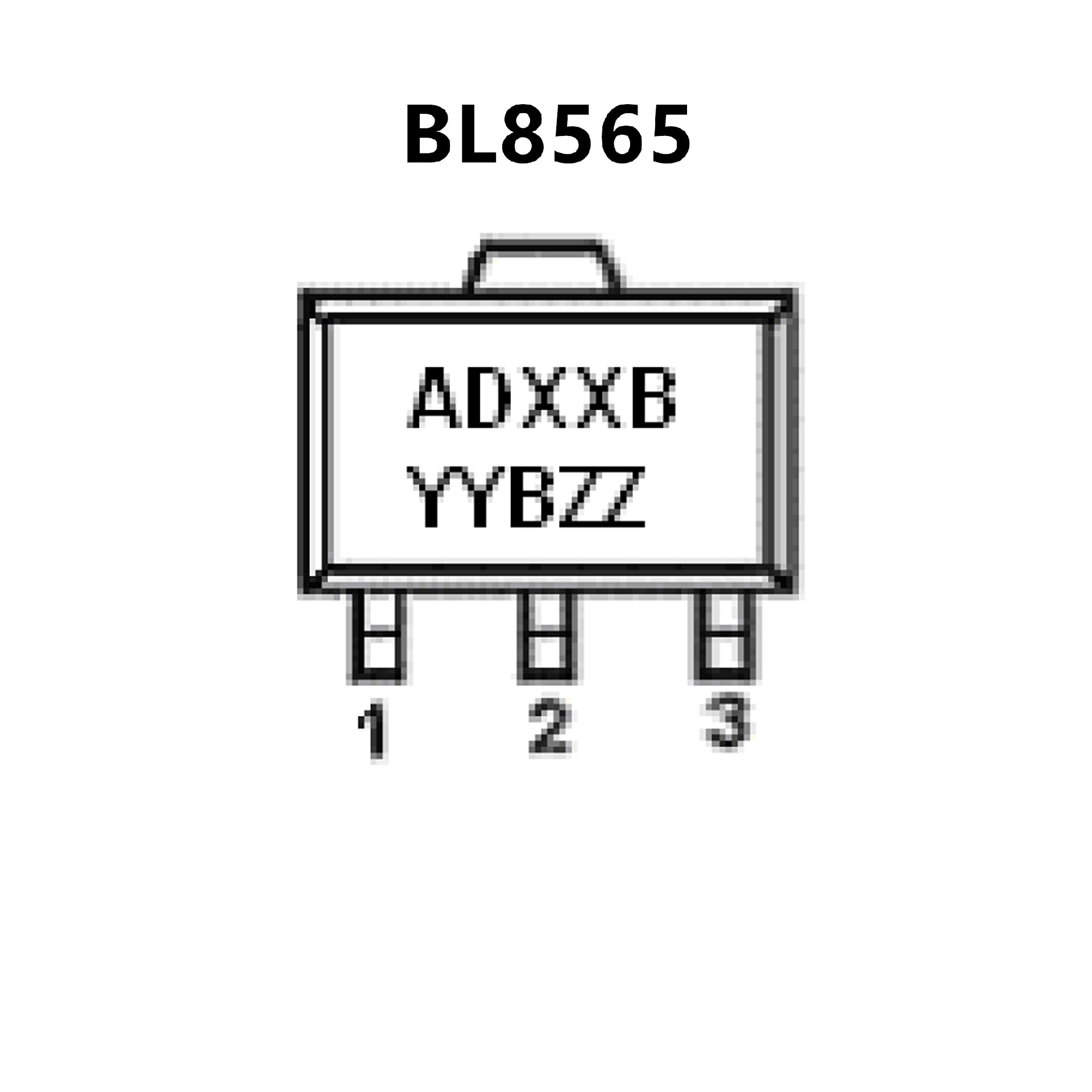

PIN CONFIGUTION
优势替代
FEATURES
• Low dropout voltage 400mV at 300mA (Typ.)
• Up to ±35mV output voltage accuracy (VIN≦7V)
• Preset at 1.8V, 3.3V
• Mask options from 1.5V to 5.0V
• Quiescent current 30μA at 5V input (Typ.)
• Small output capacitor
• Output current limit
• Thermal overload shutdown protection
• SOT-89 and SOT-23 Package

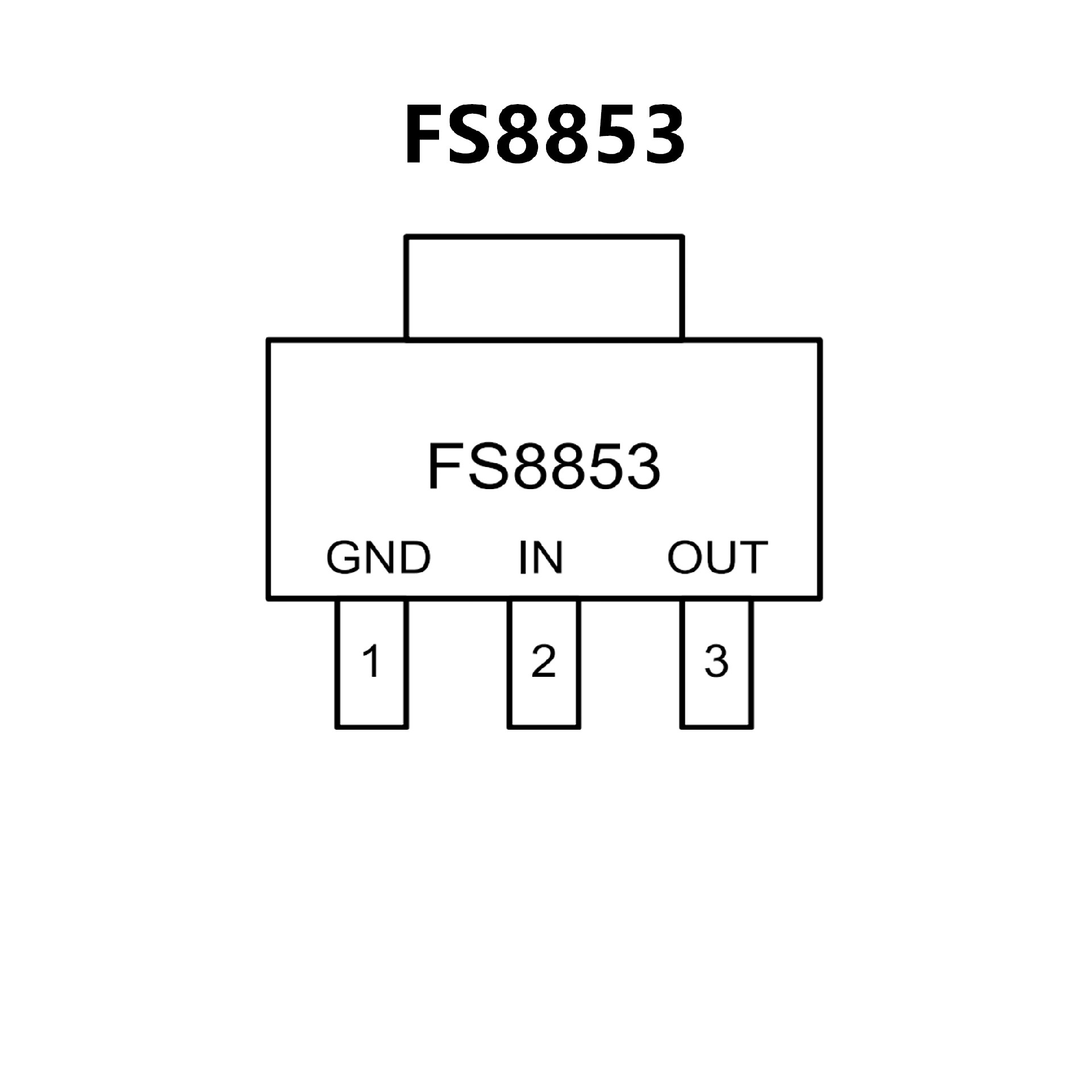

PIN CONFIGUTION
