500mA High PSRR, Low Dropout Voltage Linear Regulator,BL8565 Replace RT9162.
BL8565
BL8565.pdf
BL8565.pdfFEATURES
• Low Power Consumption: 20uA（Typ.）
• Low output noise (47uVRMS)
• Low dropout Voltage: 0.16V@300mA(Typ.)
• High Ripple Rejection: 73dB@100Hz(Typ.)
• Low Temperature Coefficient: ±100ppm/°C
• Excellent Line regulation: 0.05%/V
• Build-in chip enable and discharge circuit
• Output Voltage Range: 1.5V~4.5V
(customized on command every 0.1Vstep)
• Highly Accurate: ±2%
• Output Current Limit

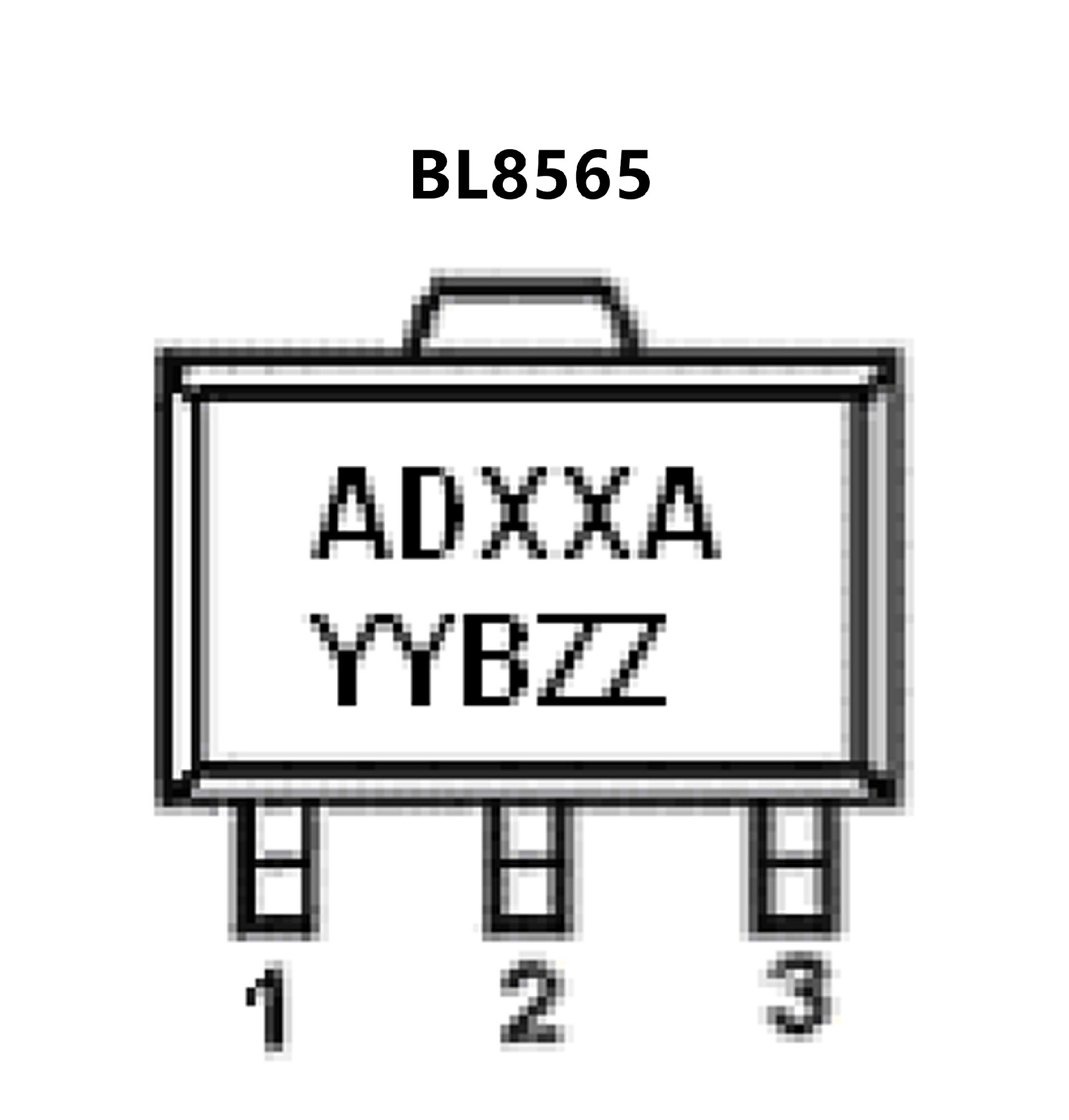

PIN CONFIGUTION
优势替代
FEATURES
• Low Dropout, Maximum 1.3V at 300mA
• Fast Transient Response
• ± 2% Total Output Regulation
• 0.4% Line Regulation
• 0.4% Load Regulation
• SOT-89 and TO-92 Packages
• RoHS Compliant and 100% Lead (Pb)-Free

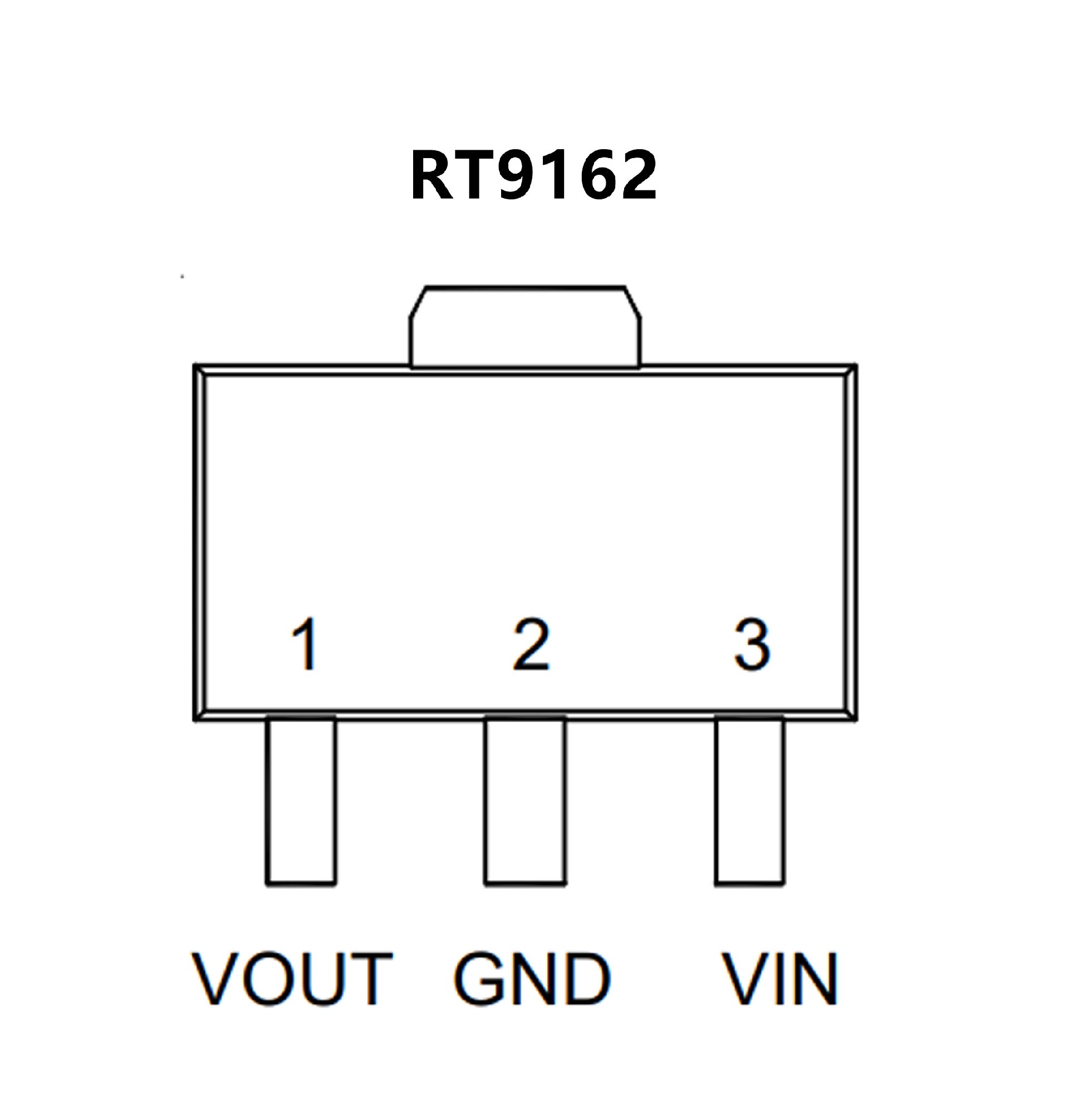

PIN CONFIGUTION
