BL8566.pdf• Two low dropout voltage regulators
• 300mA output current for each LDO
• 25uA operating supply current per LDO
• Low 47uVRMS output noise
• Standby Mode: 0.1μA
• Low 160mV dropout at 300mA load
• 73dB PSRR at 100Hz
• Excellent Line regulation: 0.05%/V
• Independent Shutdown controls
• 1.2V to 3.5V Factory-Preset Output
• Output Current Limit
• Highly Accurate: ±2% (±1% customized)
• Maximum Output Current : More than 150mA (300mA limit)
• Dropout Voltage : 100mV @100mA
• Operating Voltage Range : 1.5V ~ 6.0V
• Output Voltage Range : 0.8V~5.0V (0.05V increments)
• Highly Accurate : ±2% (VOUT>1.5V) : ±30mV (VOUT≦1.5V)
• Low Power Consumption : 25μA (TYP.)
• Standby Current : Less than 0.1μA (TYP.)
• High Ripple Rejection : 70dB @1kHz
• Operating Ambient Temperature : -40℃ ~ +85℃
• Low ESR Capacitor Compatible : Ceramic capacitor
• Low Output Noise

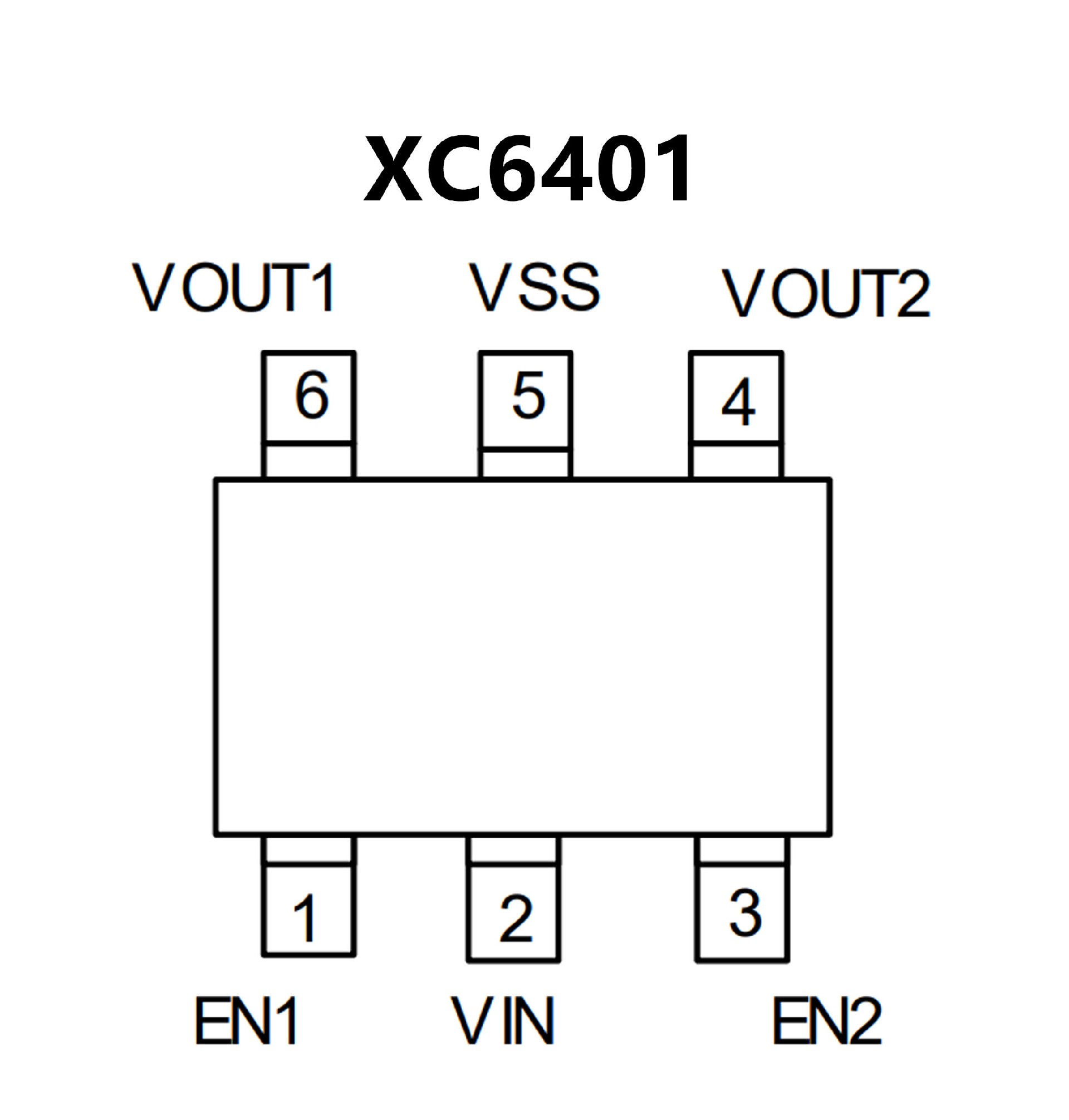

• Packages : SOT-26W, USP-6B, USP-6C
• Environmentally Friendly : EU RoHS Compliant, Pb Free
