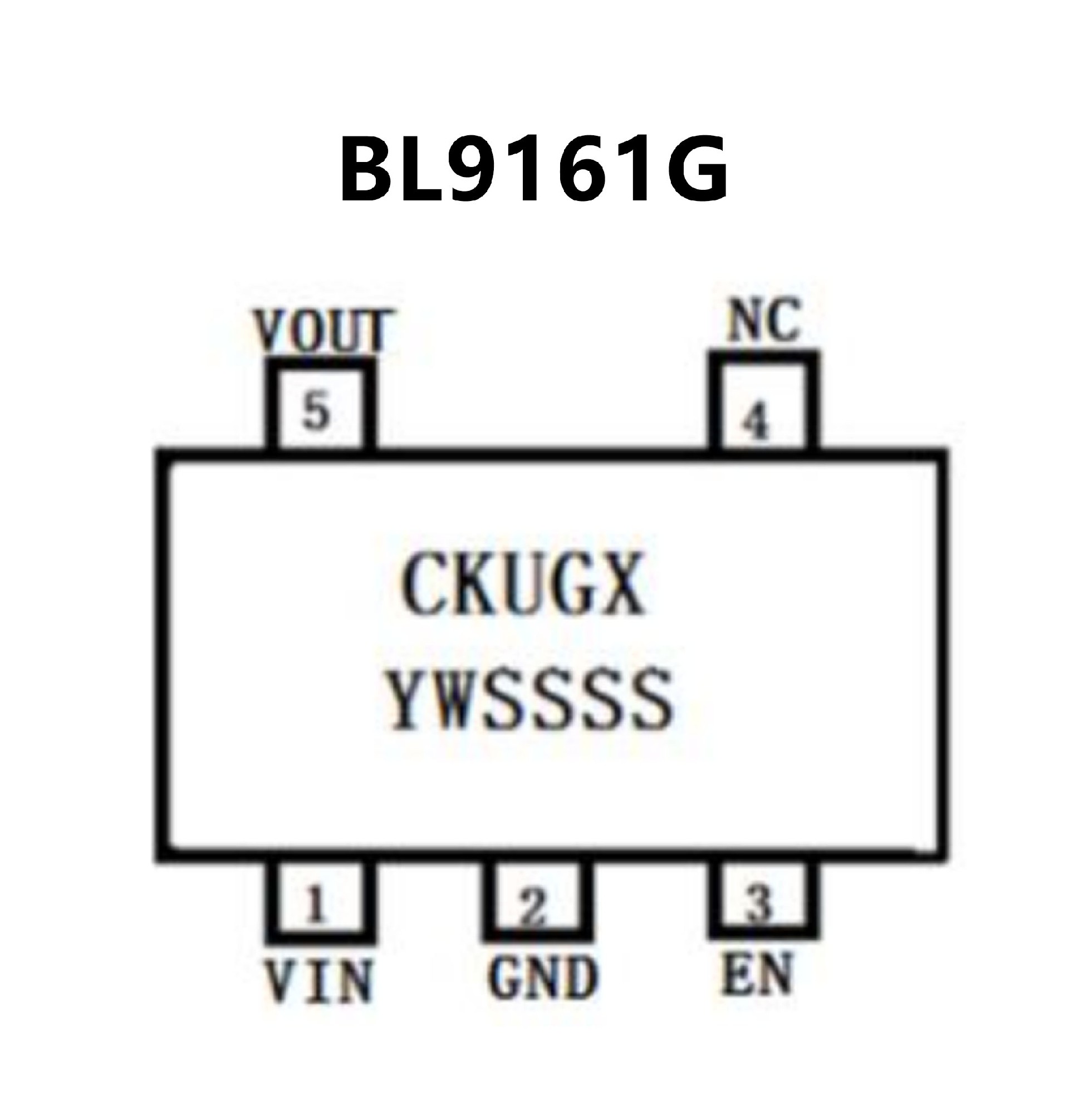

BL9161G.pdf• Ultra-low Noise
• Ultra-Fast Response in Line/LoadTransient
• 0.01μA Standby Current When Shutdown
• Low Dropout: 205mV@300mA
• Wide Operating Voltage Ranges: 2.2Vto 6V
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1μF Output Capacitor Required forStability
• High Power Supply Rejection Ratio
• Fast output discharge
• Available in SOT23-5 ，SOT23-3,SC70-5 and DFN1×1-4L Package
• Maximum Output Current : 150mA

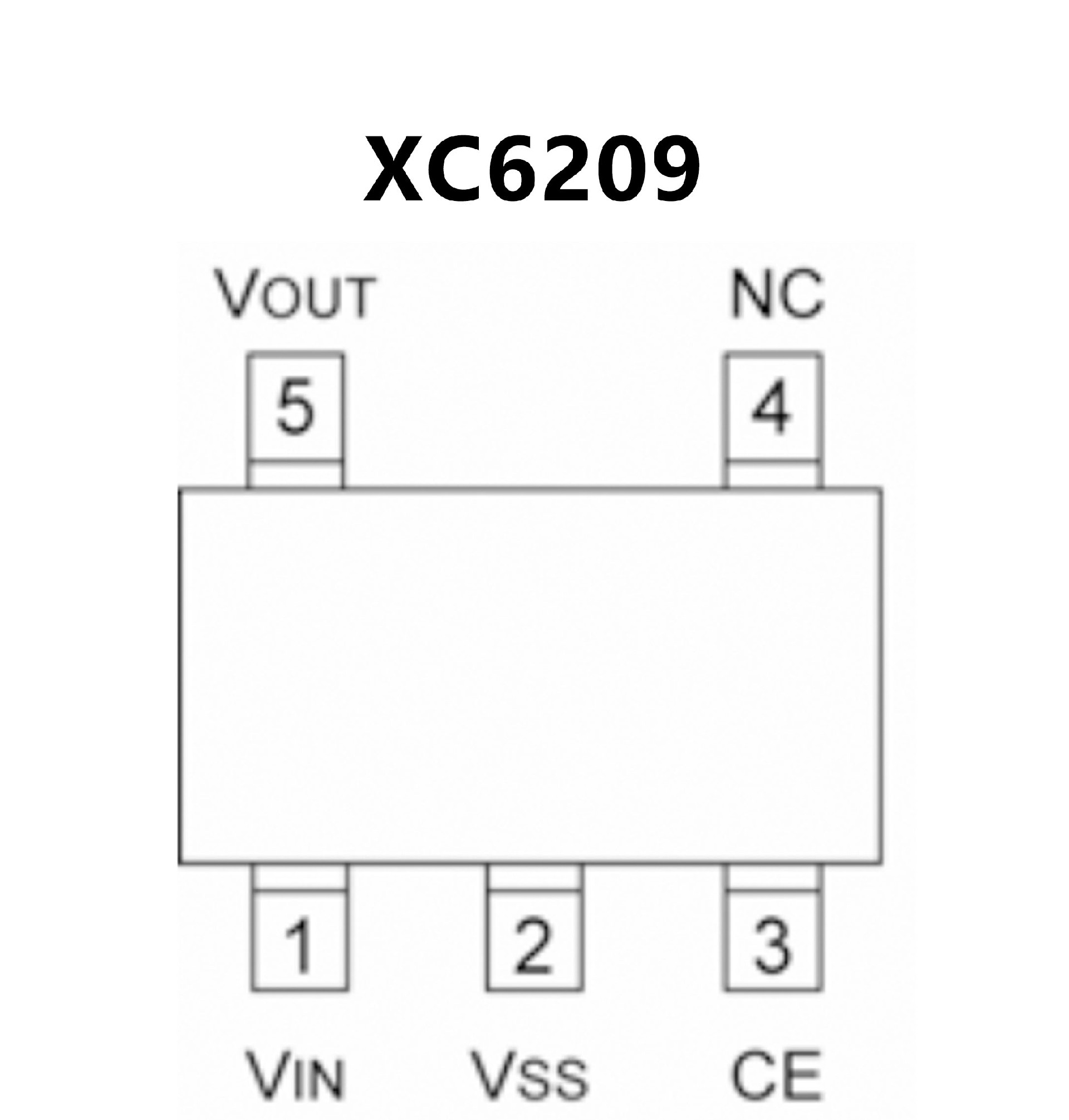

(300mA=XC6209 E to H types)
• Dropout Voltage : 60mV @ 30mA
: 200mV @ 100mA
• Maximum Operating Voltage : 2.0V ~ 10V
• Output Voltage Range: 0.9V ~ 6.0V(0.05V increments)
• Highly Accurate : ±2% (VOUT>1.5V)
±30mV (VOUT≦1.5V)
• Low Power Consumption: 25μA (TYP.)
• Standby Current : Less than 0.1μA (TYP.)
• High Ripple Rejection : 70dB (10kHz)
• Operating Ambient Temperature: -40℃~ +85℃
• Low ESR Capacitor: Ceramic capacitor
• Compatible
• Packages : SOT-25 USP-6B
• Environmentally FriendlySOT-89-5
: EU RoHS Compliant, Pb Free
