BL9195.pdf• Ultra-Fast Response in Line/Load
Transient
• Low Dropout:210mV@300mA
• Wide Operating Voltage Range:2V to 6V
• Wide Output Voltage Range:1.2V to 5V
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1F Output Capacitor Required forStability
• High Power Supply Rejection Ratio
• Custom Voltage Available

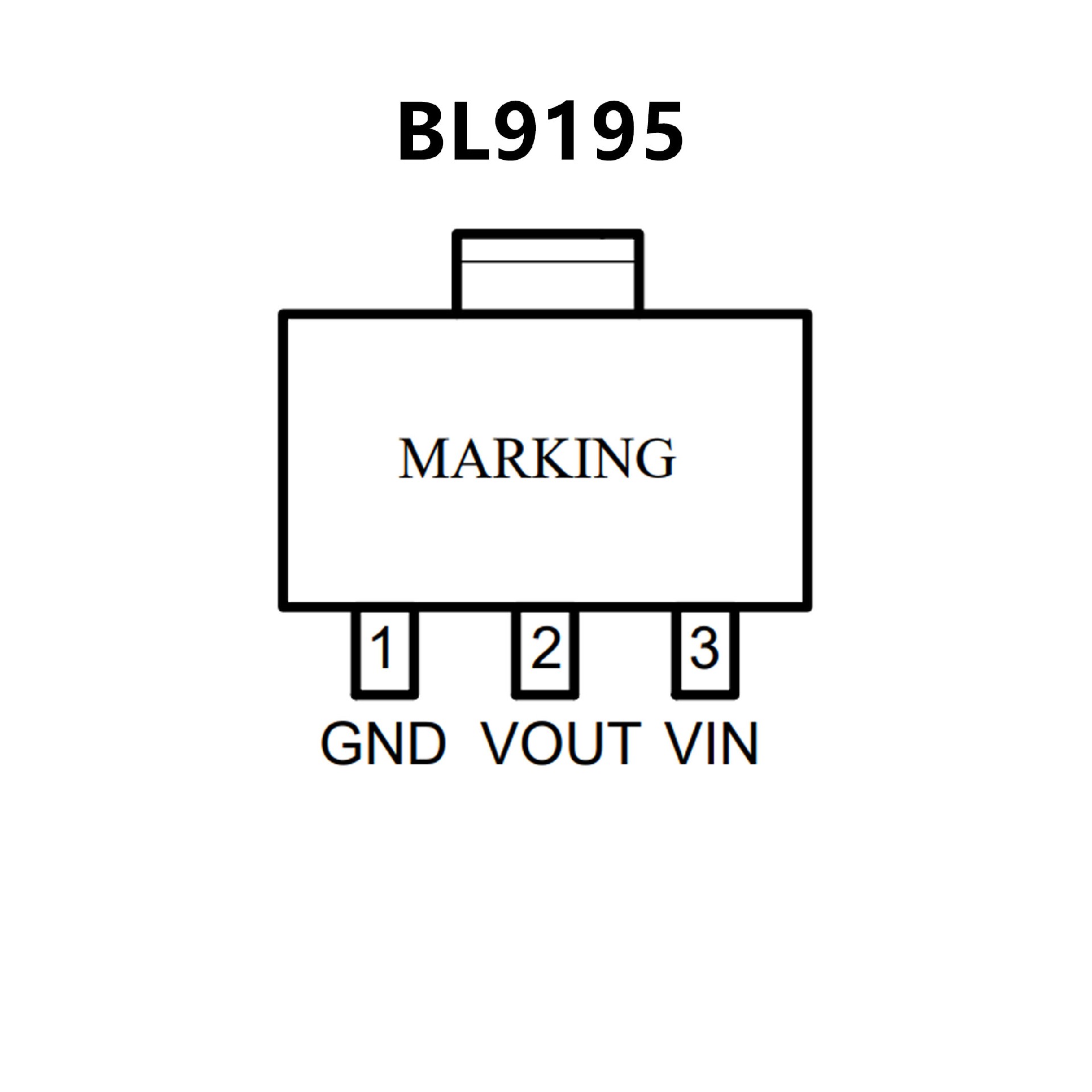

• Available in 3-Lead SOT23, SOT89 and
SOT223 Package
• Operating Voltages Range: +2.5V to +9.0V
• Output Voltages Range: +1.5V to +5.0V with 100mV
Increment
• Maximum Output Current: 300mA
• Low Dropout: 120mV@100mA (VOUT≥2.0V)
• ±2% Output Voltage Accuracy
• High Ripple Rejection: 70dB
• Output Current Limit Protection (600mA)
• Short Circuit Protection (300mA)
• Thermal Overload Shutdown Protection
• Low ESR Capacitor Compatible
• RoHS Compliant and 100% Lead (Pb)
Free and Green
(Halogen Free with Commercial Standard)
