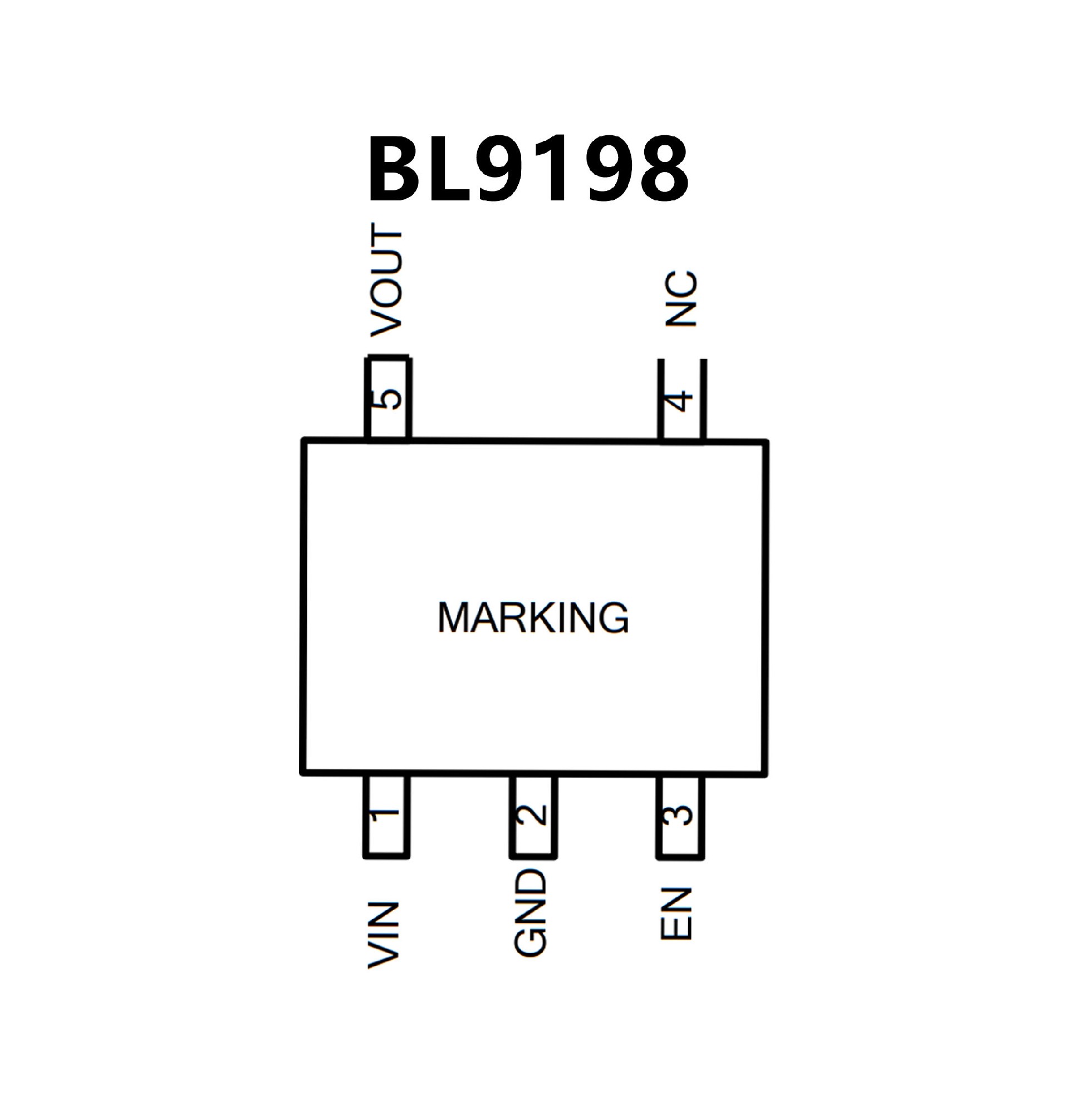

BL9198.pdf• Ultra-low Noise for RF Application
• Ultra-Fast Response in Line/Load Transient
• <0.01µA Standby Current When Shutdown.
• Low Dropout:210mV@300mA
• Wide Operating Voltage Ranges:2V to 6V
• TTL-logic-Controlled Shutdown Input
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1µF Output Capacitor Required for Stability
• High Power Supply Rejection Ratio
• Custom Voltage Available
• Fast output discharge
• Available in 5-Lead SOT-23 and SC-70 Package

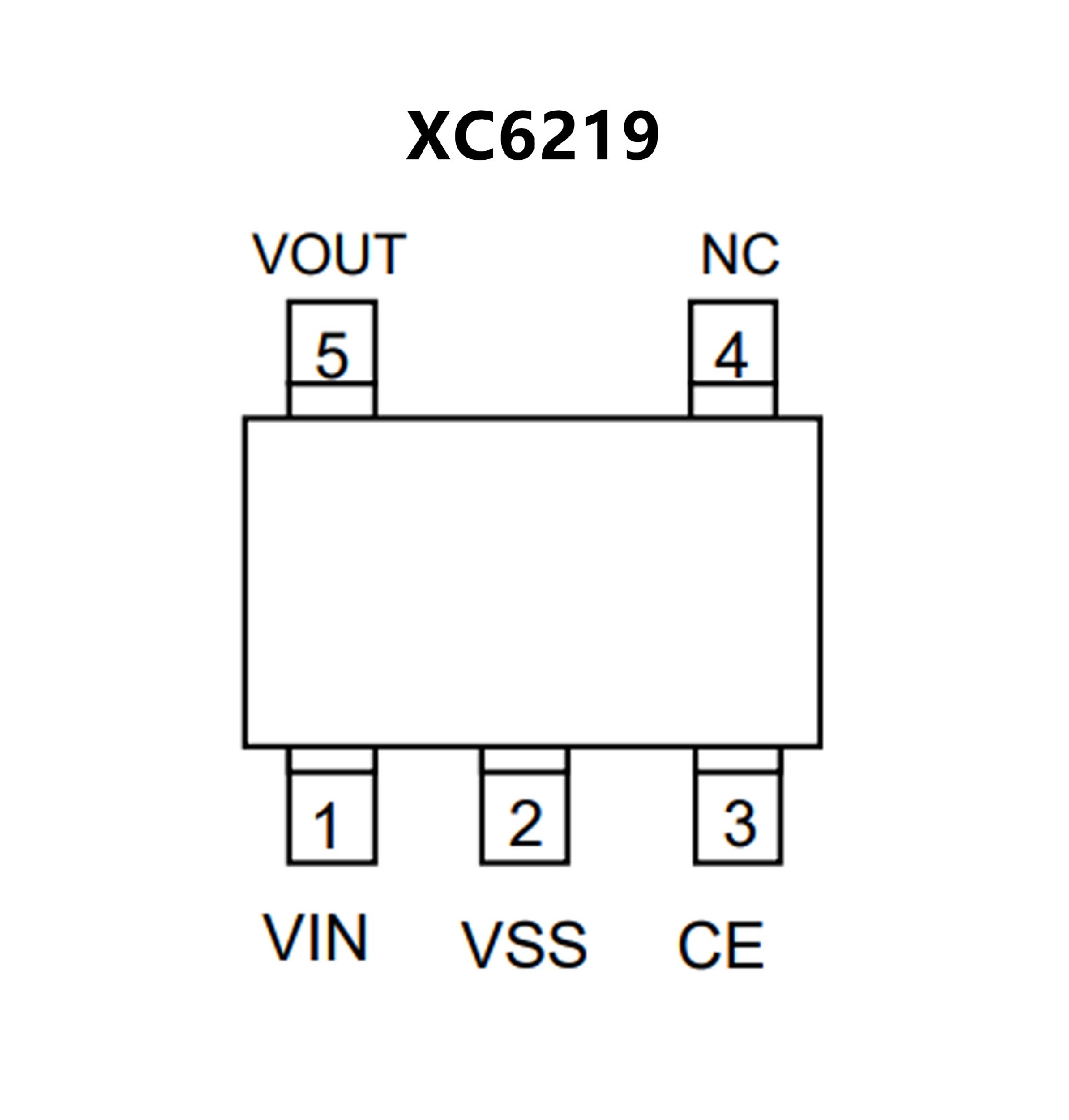

• Maximum Output Current:
150mA (VOUT<1.75V, A~D type)
240mA (VOUT>1.8V, A~D type) 3
00mA (VOUT>1.3V, E~H type)
• Dropout Voltage : 200mV @ 100mA
• Operating Voltage Range : 2.0V ~ 6.0V
• Output Voltage Range : 0.9V ~ 5.0V (0.05V steps)
• Highly Accuracy: +2% (VOUT>1.5V) +30mV
(VOUT≦1.5V) +1% (VOUT≧3.0V)
• Low Power Consumption: 25μA (TYP.)
• Standby Current : Less than 0.1μA (TYP.)
• High Ripple Rejection : 65dB @10kHz
• Operating Ambient Temperature: -40℃ ~ 85℃
• Low ESR Capacitor : Ceramic capacitor compatible
• Ultra Small Packages: SOT-25 SOT-89-5 USP-6B
• Environmentally Friendly: EU RoHS Compliant, Pb Free
