BL9315.pdf• High Efficiency: Up to 95%
• Capable of Delivering 3.0A
• 1.5MHz Switching Frequency
• No External Schottky Diode Needed
• Low dropout 100% Duty operation
• Internal Compensation and Soft-Start
• Current Mode control
• 0.6V Reference for Low Output voltages
• Logic Control Shutdown (IQ<1µA)
• Over Voltage Protection
• Short Circuit Protection
• Thermal shutdown and UVLO
• Power good indicator

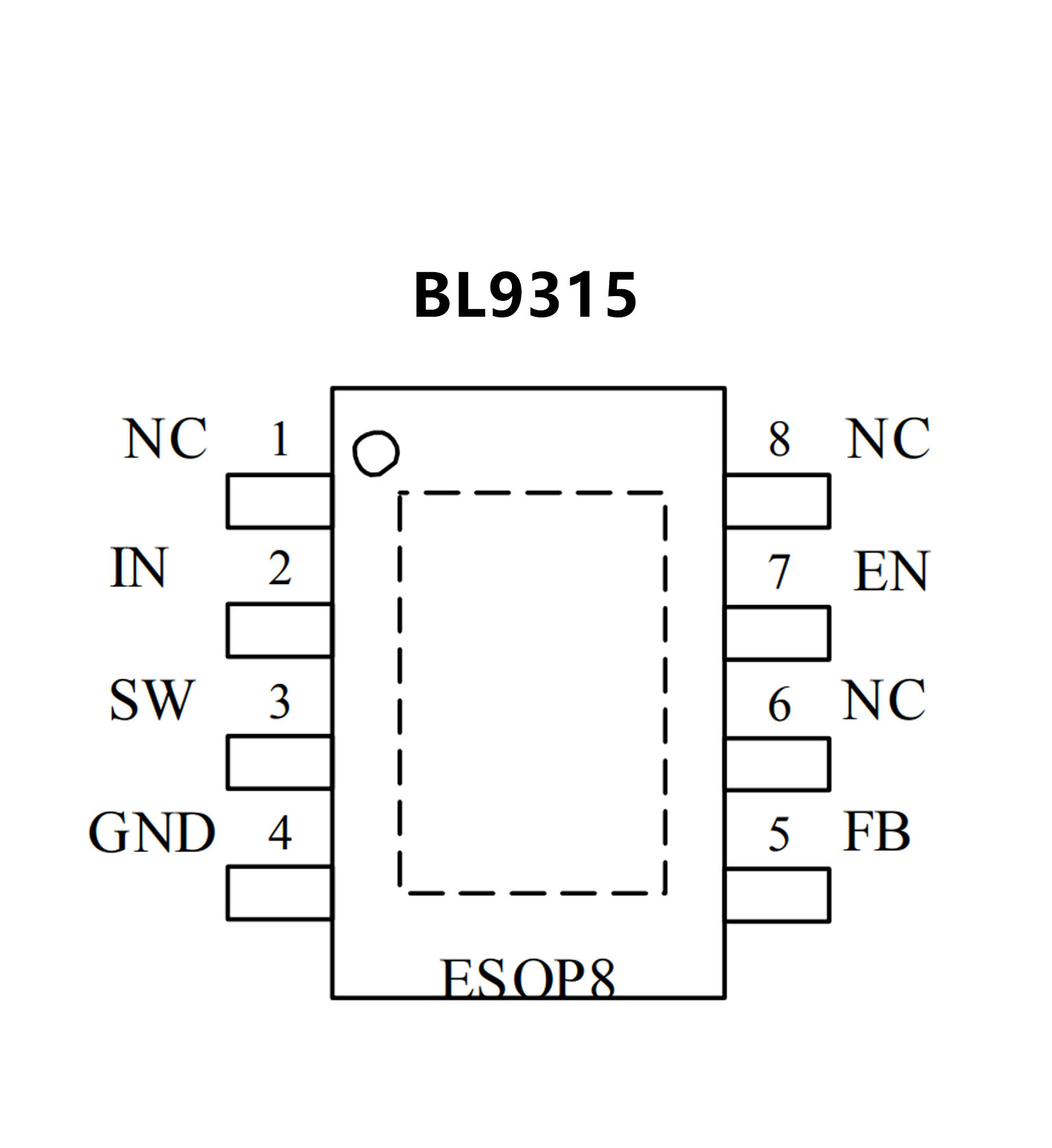

• Available in ESOP8 package
• Output Current: Up to 3A
• Output Voltage: 0.6V to VIN
• Input Voltage: 2.7V to 5.5V
• Efficiency Up to 95%
• 42µA (Typ) No Load Quiescent Current
• Shutdown Current: <1µA
• 100% Duty Cycle Operation
• 1.5MHz Switching Frequency
• Internal Soft Start
• No External Compensation Required
• Current Limit Protection
• Thermal Shutdown

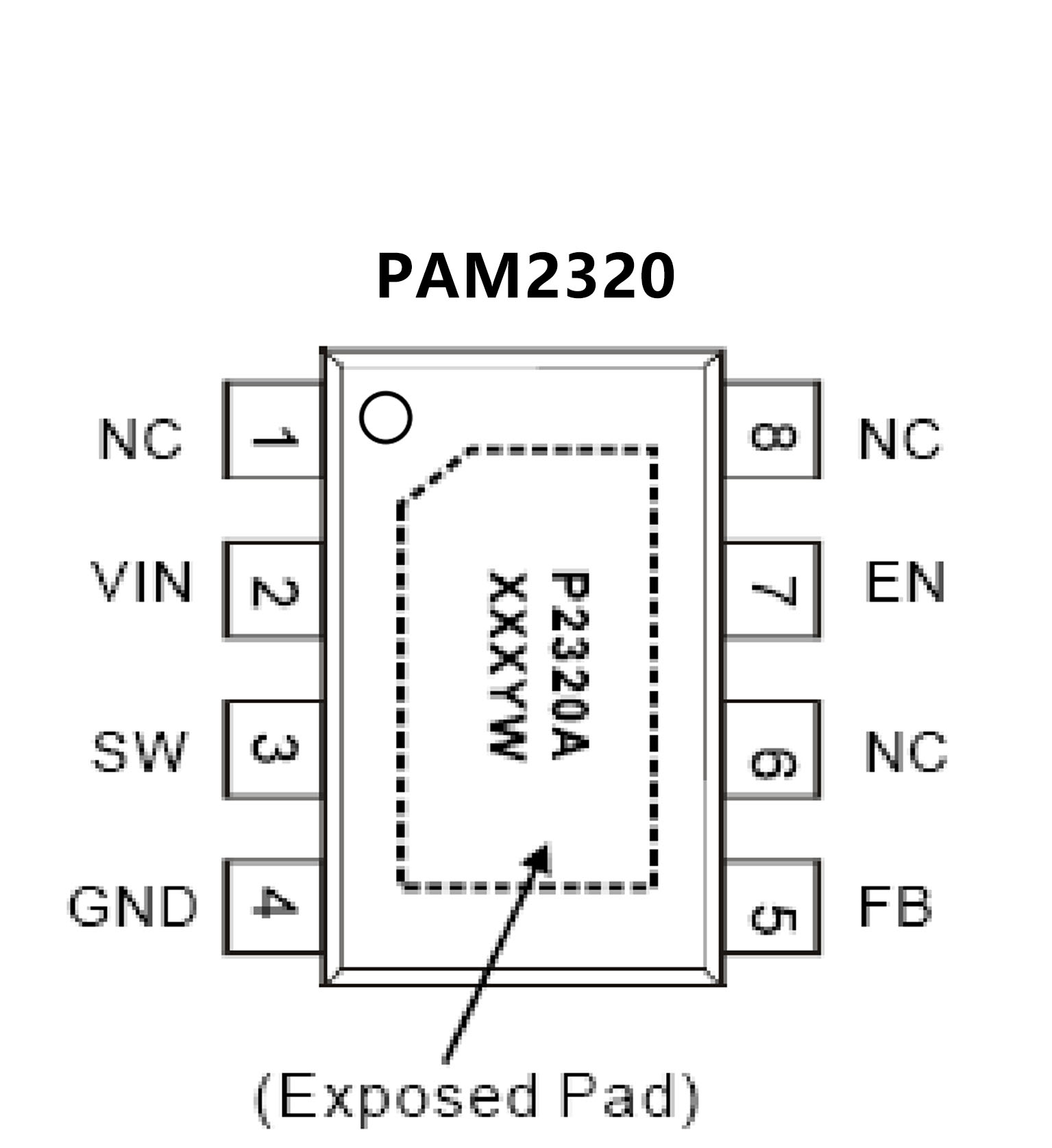

• PSOP-8 Package
