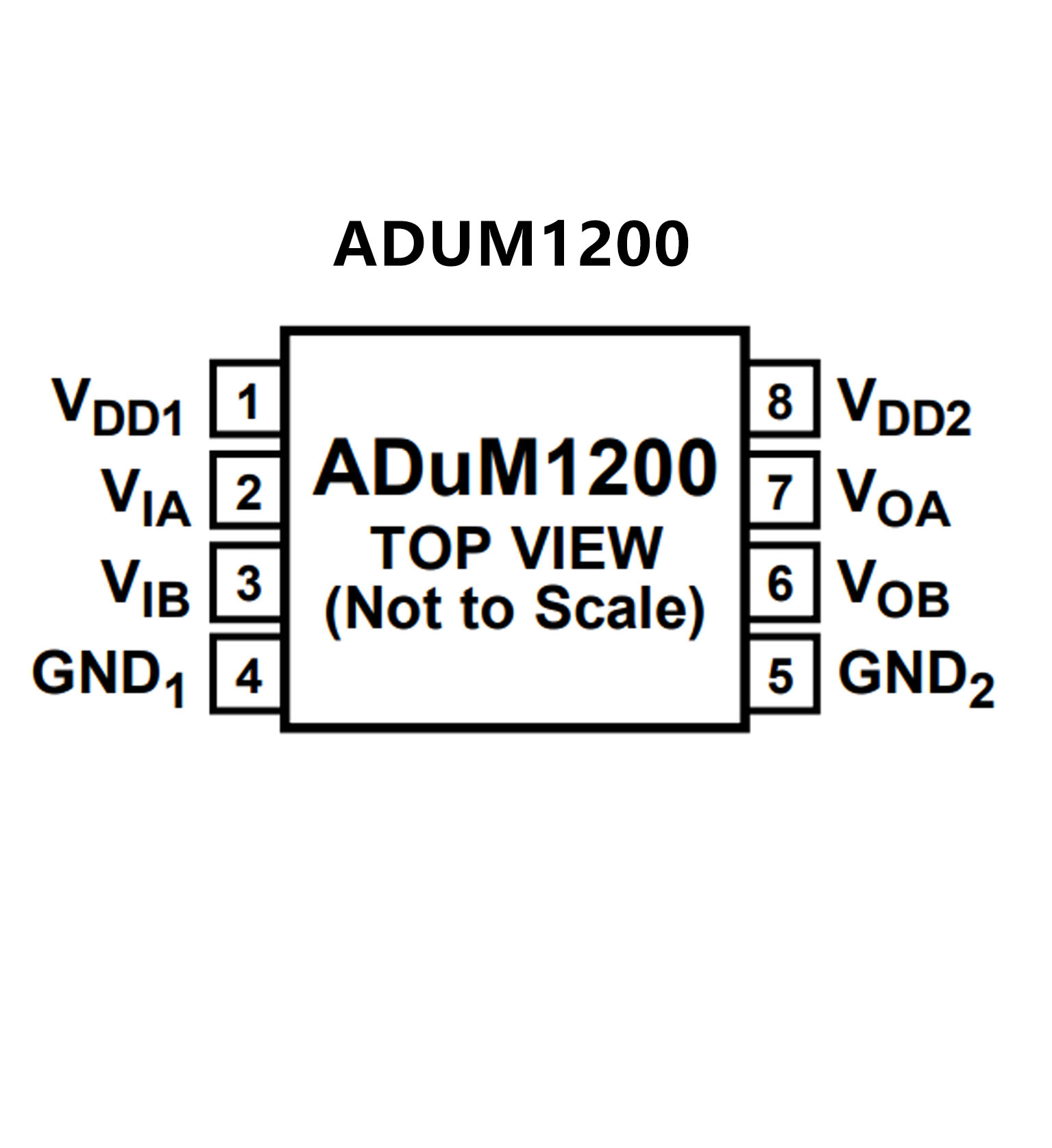

• Narrow body, RoHS-compliant, SOIC 8-lead package

• Low power operation

• 5 V operation

• 1.1 mA per channel maximum at 0 Mbps to 2 Mbps

• 3.7 mA per channel maximum at 10 Mbps

• 8.2 mA per channel maximum at 25 Mbps

• 3 V operation

• 0.8 mA per channel maximum at 0 Mbps to 2 Mbps

• 2.2 mA per channel maximum at 10 Mbps

• 4.8 mA per channel maximum at 25 Mbps

• Bidirectional communication

• 3 V/5 V level translation

• High temperature operation: 125°C

• High data rate: dc to 25 Mbps (NRZ)

• Precise timing characteristics

• 3 ns maximum pulse width distortion

• 3 ns maximum channel-to-channel matching

• High common-mode transient immunity: >25 kV/μs

• Safety and regulatory approvals

• UL recognition

• 2500 V rms for 1 minute per UL 1577

• CSA Component Acceptance Notice 5A

• VDE Certificate of Conformity

• DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12

• V_IORM = 560 V peak

• Qualified for automotive applications
