2.5W/CH Stereo Filterless Class-D Audio Amplifier with 64-Step DC Volume Control, EUA2073 P2P PAM8003.
EUA2073
EUA2073.pdf
EUA2073.pdfFEATURES
• Wide Supply Voltage: 2.7V to 5.5V
• Unique Modulation Scheme Reduces EMI Emission
• 2.5W/ch into an 4Ω Load From 5V Supply
• 64-Step DC Volume Control
• Thermal and Short-Circuit Protection
• Integrated Click and Pop Suppression
• Available in SOP-16 Packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

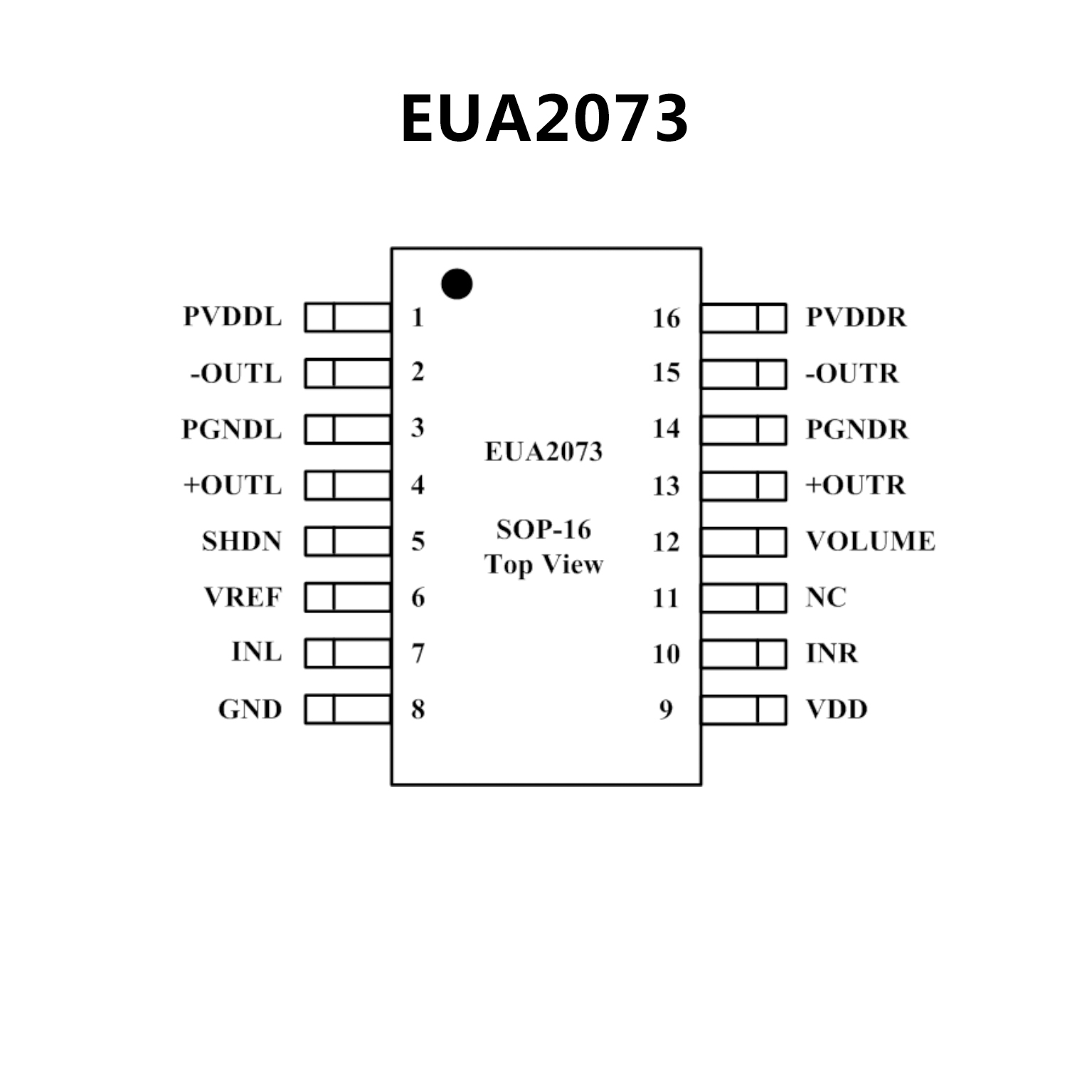

PIN CONFIGUTION
优势替代
FEATURES
• 2.5W Output at 10% THD with a 5Ω Load and 5V Power Supply
• Filterless, Low Quiescent Current and Low EMI
• Low THD+N
• 64-Step DC Volume Control
• Superior Low Noise
• Short Circuit Protection
• Thermal Shutdown
• Few External Components to Save the Space and Cost
• RoHS Pass and Green Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)

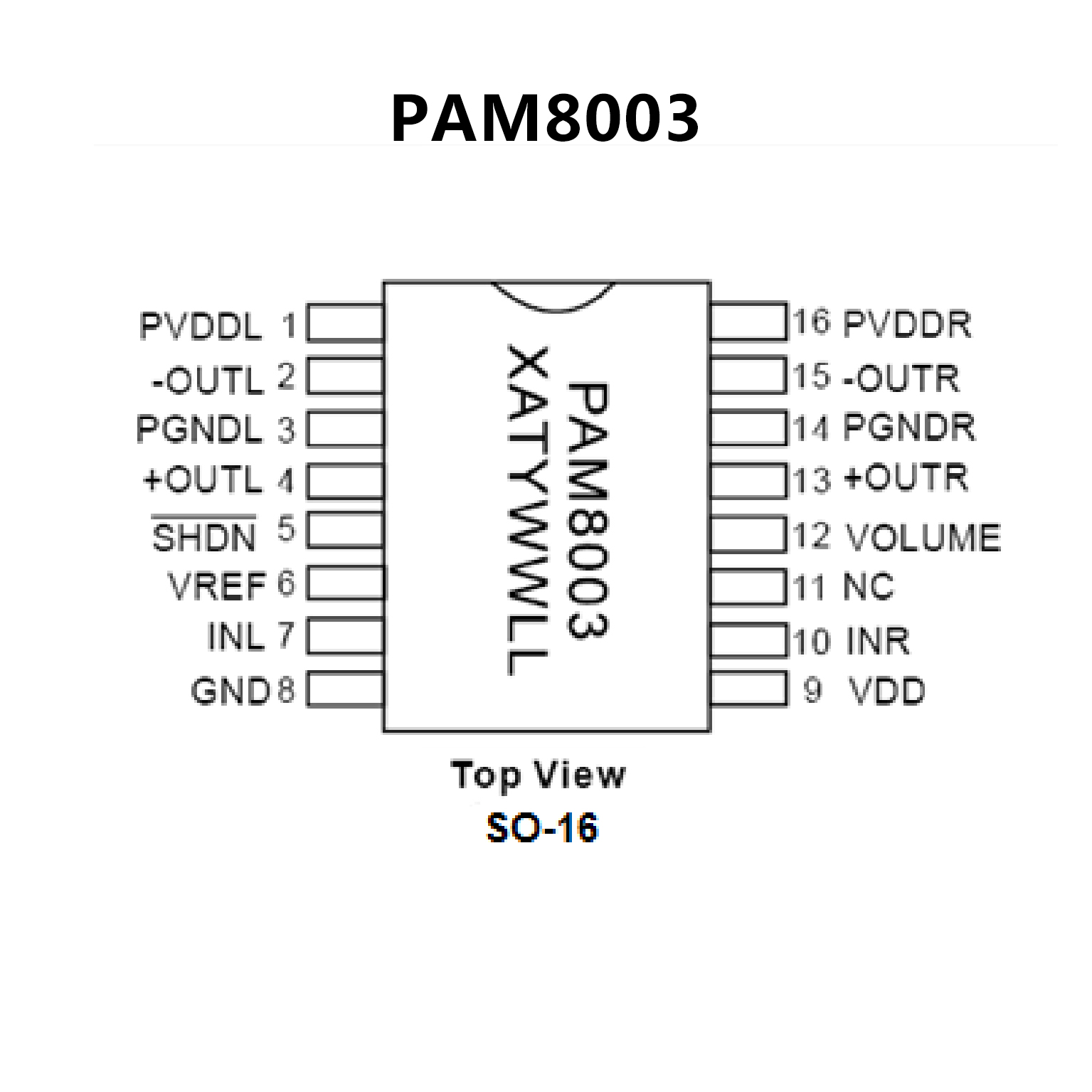

PIN CONFIGUTION
