10-W Inductor Free Stereo Audio Amplifier with Low EMI,EUA2380 Replace TPA3136.
FEATURES

• Wide Supply Voltage: 4.5V to 14.5V

• Enhanced Modulation Scheme Reduces EMI

  Emission

• 10-W/ch into an 6-Ω Load From a 12-V Supply

• 10-W/ch into an 8-Ω Load From a 13-V Supply

• Differential Inputs or Single-Ended input

• Speaker Protection Circuitry

• 26-dB Fixed Gain

• Power Limit Function

• Thermal and Short-Circuit Protection

• 28-pin TSSOP Package with Thermal Pad

• RoHS compliant and 100% lead(Pb)-free

  Halogen-Free

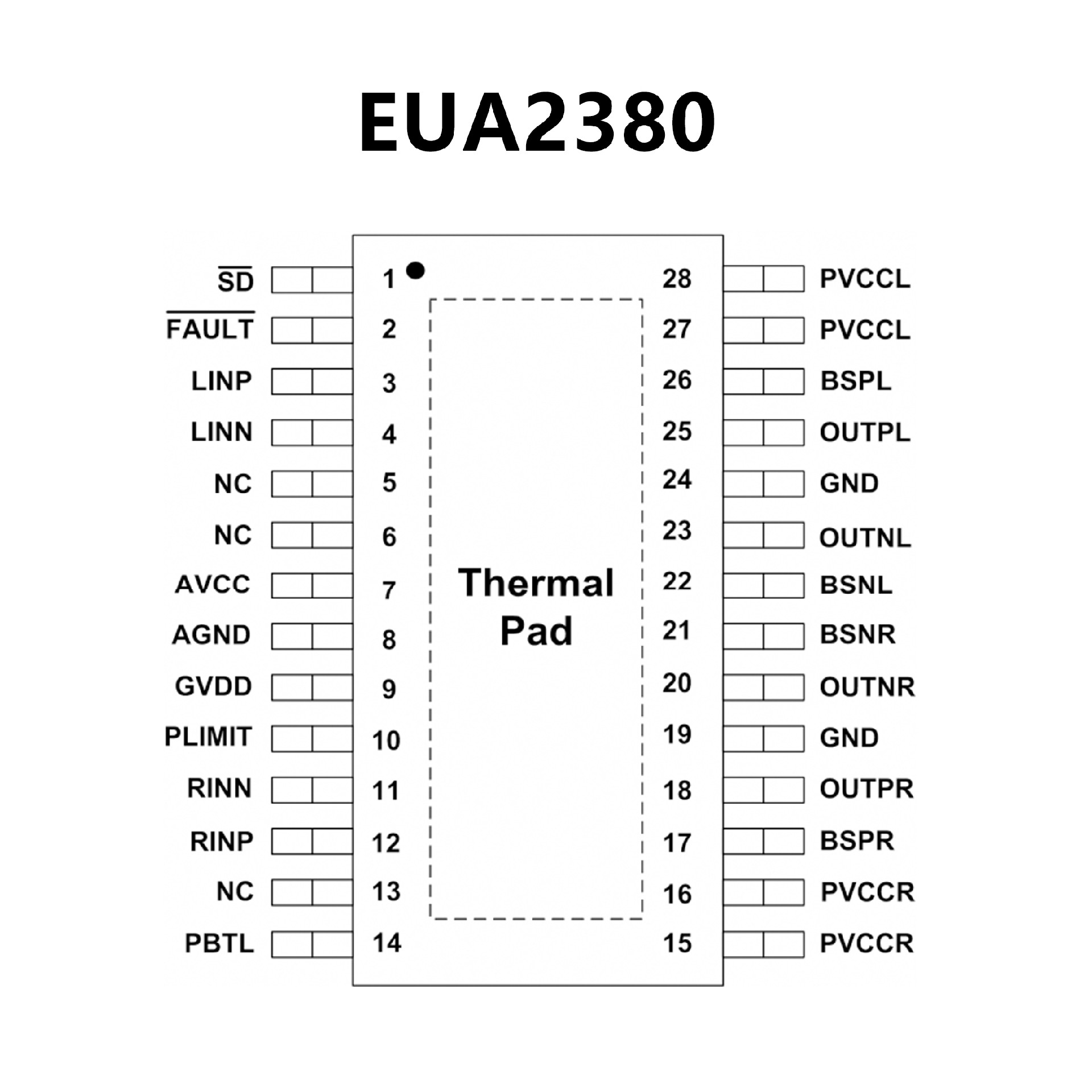

PIN CONFIGUTION
优势替代
TPA3136 TPA3136.pdf

No.11773

FEATURES

1• 2 × 10 W/ch into 6-Ω loads at 10% THD+N from a

12-V supply

• 2 × 10 W/ch into 8-Ω loads at 10% THD+N from a

13-V supply

• Up to 90% Efficient class-D operation (8 Ω)

eliminates need for heat sinks

• <0.05% THD+N at 1 W/4 Ω/1 kHz

• Wide supply voltage range allows operation from

4.5 V (8 V for TPA3136AD2) to 14.4 V

• Inductor-free operation

• Enhanced EMI performance with spread spectrum

• SpeakerGuard™ speaker protection includes

power limiter and DC protection

• Robust pin-to-pin, pin-to-ground, and pin-to-power

short circuit protection and thermal protection

• 26-dB Fixed gain

• Single-ended or differential analog inputs

• Click and pop free startup

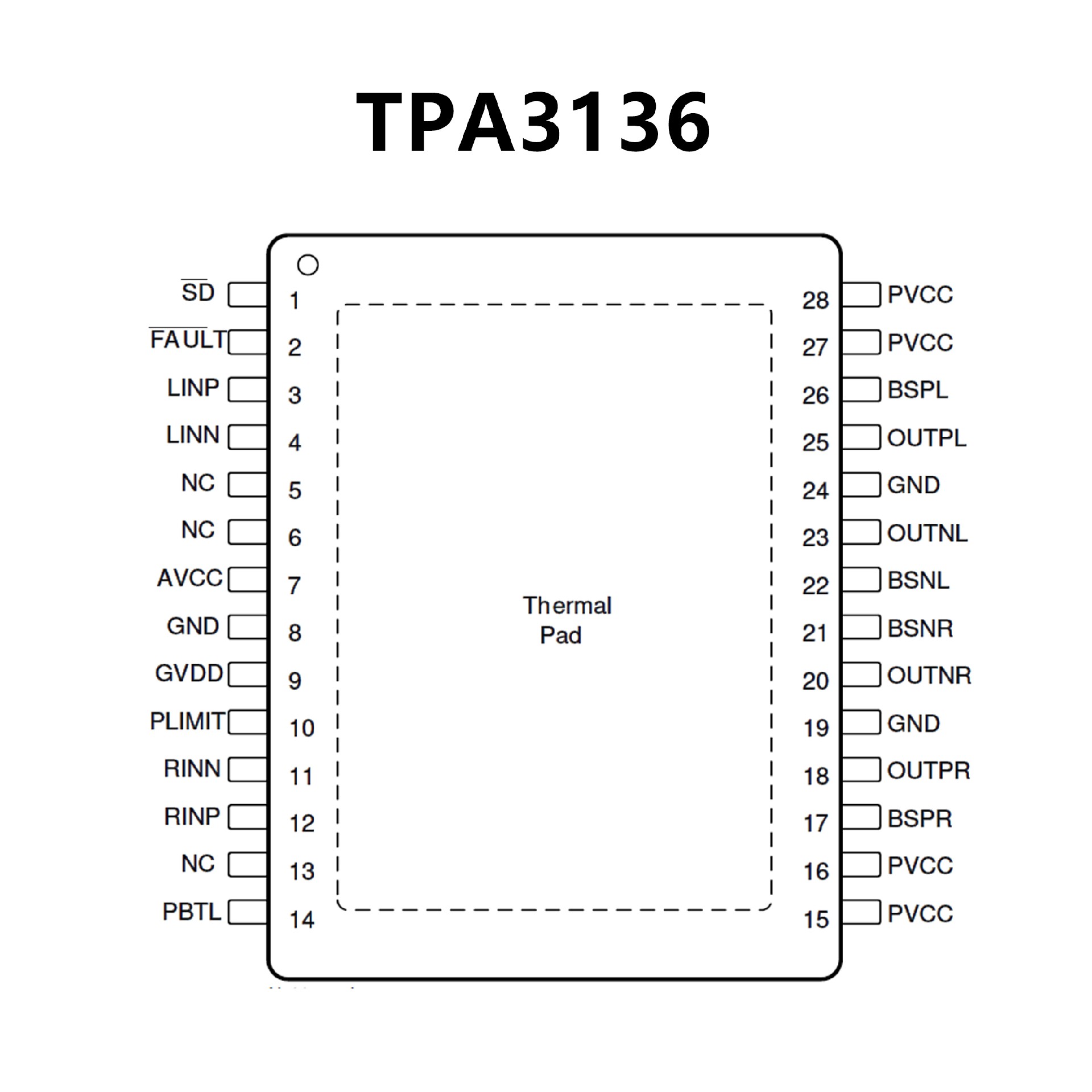

PIN CONFIGUTION
