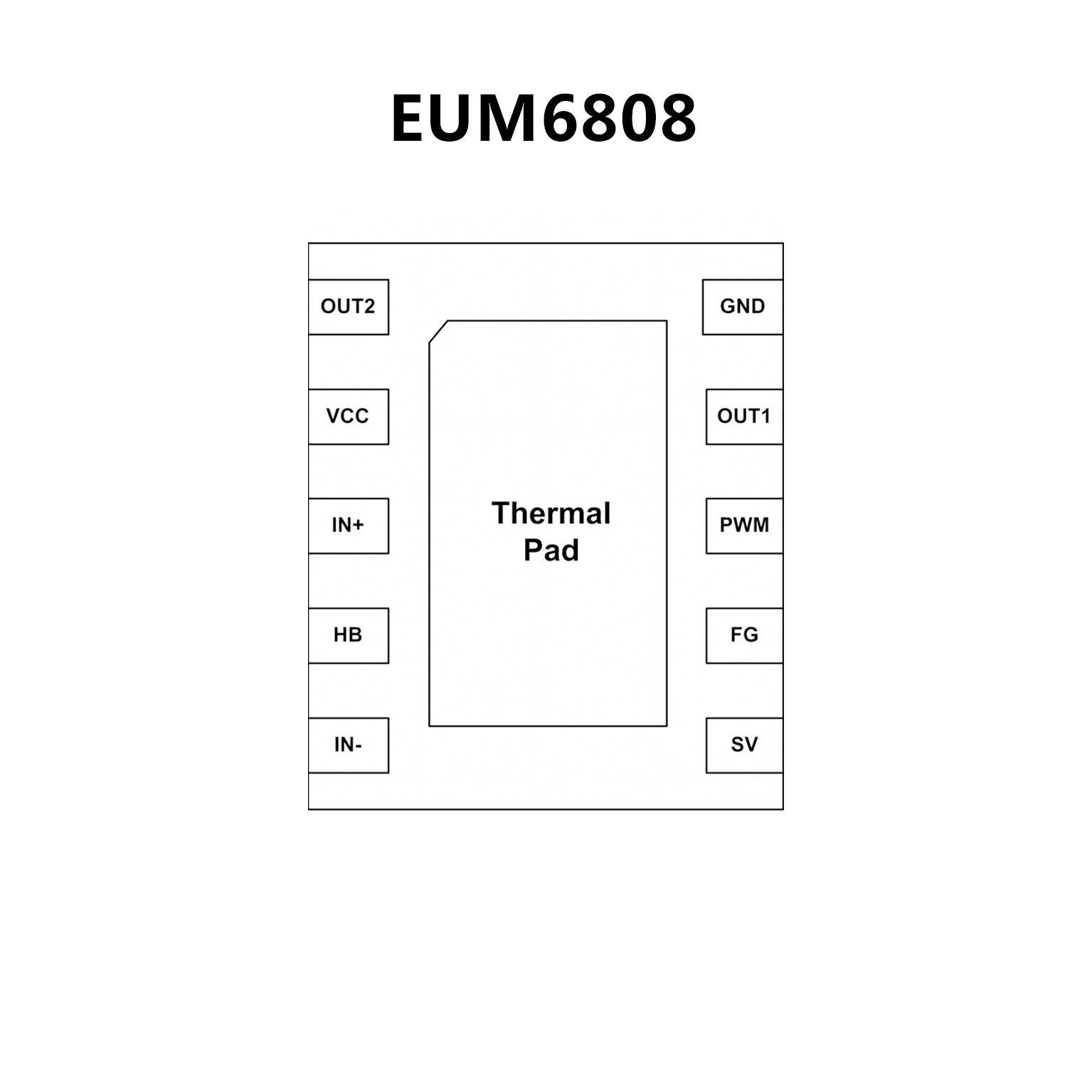

EUM6808.pdf• Single-Phase Full-Wave Driver System
• Three Speed Control Mode
PWM Control Mode
VCC Control Mode with Slope Adjustable
Normal VCC Control Mode
• Soft Switched Drive for Silent Application
• Lock Detection and Automatic Restart
• Shutdown Mode and Quick Restart
Low Standby Current (PWM = L)
• FG Output
• Hall Bias Output
• Thermal Shutdown Protection
• Available in UDFN-10 and MSOP-10 Package
• RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

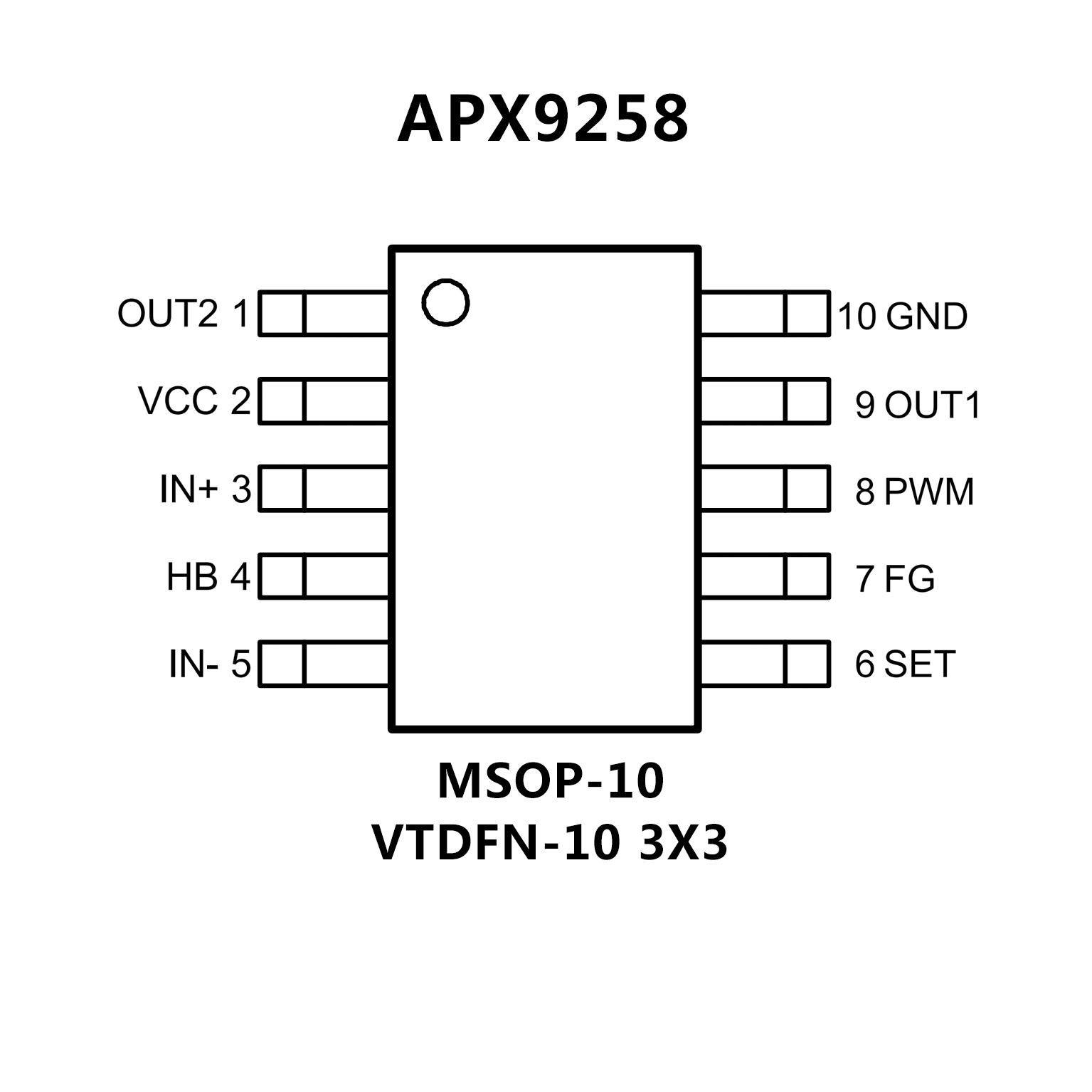

• Single Phase Full Wave Fan Driver
• Silent Driver
• Three Speed Control Methods
• Low Supply Current
• Built-In Lock Protection and Auto Restart Function
• Low Standby Current (PWM=0%), Supply Current
Less than 200μA (Type C/D Only)
• Adjustable Fan Speed Slope (Type B Only)
• Enhance Low Duty Start UP Power (Type D Only)
• FGOutput
• Include Hall Bias Circuit
• Built-In Thermal Protection Circuit
• Lead Free and Green Devices Available (RoHS Compliant)
