EUM6862.pdf• Built in 24V Full-wave Motor Driver for Fan Motor
• Built in Kickback Voltage Protection, No Zener
Diode Need
• External Programmable Soft Start and Soft
Restart Function
• Wide Input Range 3V~28V
• PWM Fan Speed Control
• Programmable Minimum Fan Speed
• Built in Soft Switching Function
• Built in Hall Bias
• Lock Protection and Auto Restart
• Fan Rotation Speed Feedback FG Output
(EUM6862/B)
• Fan Rotation Detection RD Output
(EUM6862/A)
• Thermal Shutdown Protection

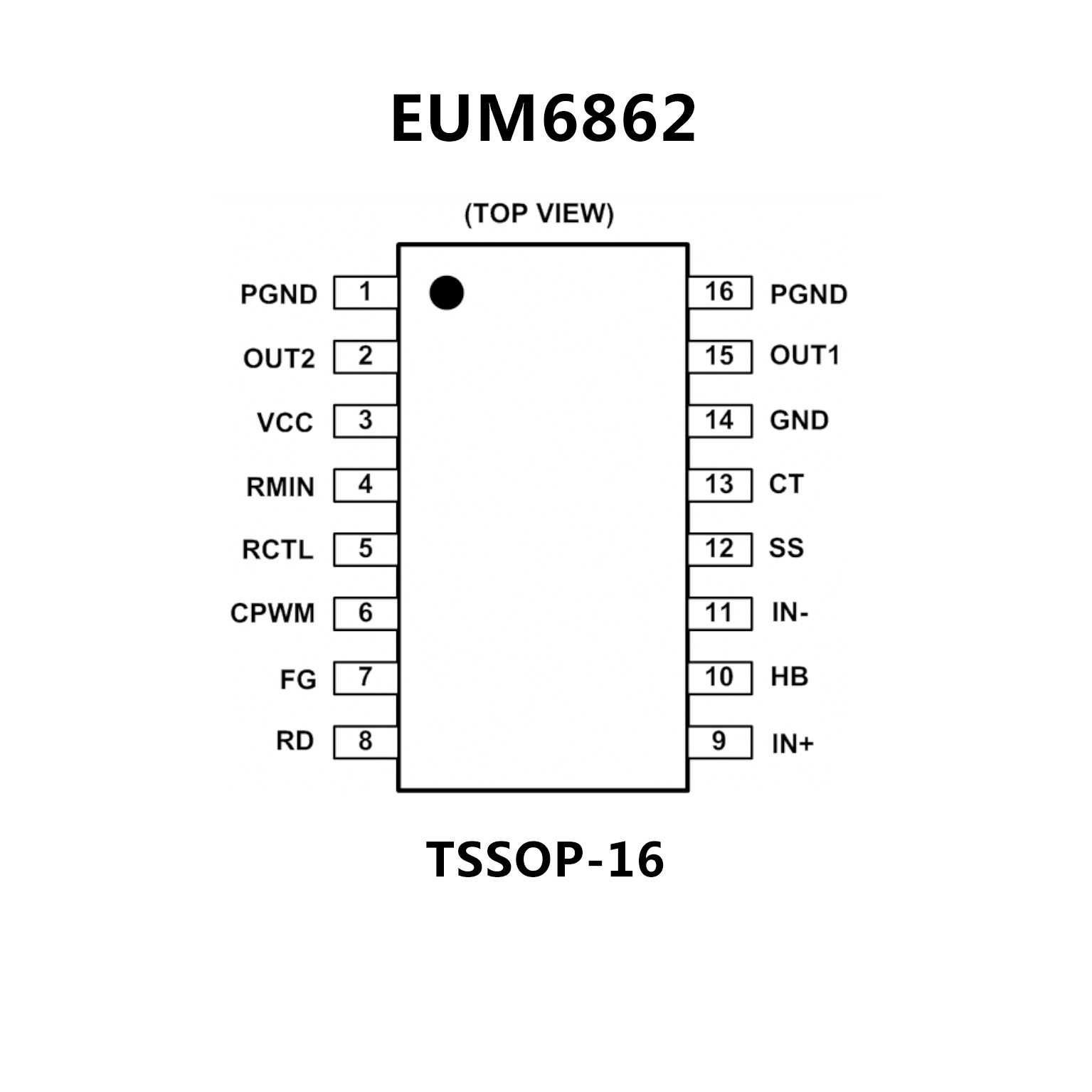

• Available in TSSOP-16 and TDFN-14 Packages
• RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free
• Single Phase Full Wave Fan Driver
• Low Supply Current
• Built-In Variable Speed Function
• Include Hall Bias Circuit
• Built-In Lock Protection and Auto Restart Func-tion
• FG Output and RD Output Signal available
• Built-In Current Limit Circuit
• Built-In Thermal Protection Circuit
• TSSOP-16 Package
• Lead Free and Green Devices Available
(RoHS Compliant)
