• 3μA shutdown current

• 12 strings in parallel and up to 18 LEDs per

  string

• External PWM or DC Voltage Dimming

  Control

• Output voltage up to 65V

• Wide Input voltage range 4.5V to 28V

• Better than 1.5% LED Current Regulation

  Accuracy Between Strings

• Boost Switching frequency can be programmed

  by external resistor

• Multiple Fault Protections

  -Current Limit protection

  -Output Short circuit detection

  -Over-temperature protection

  -Output Over-voltage protection

• LED current turn off in shutdown mode

• Integrated UVLO/ Over Thermal protection

• Minimal 0.5μs LED On-Time regulation

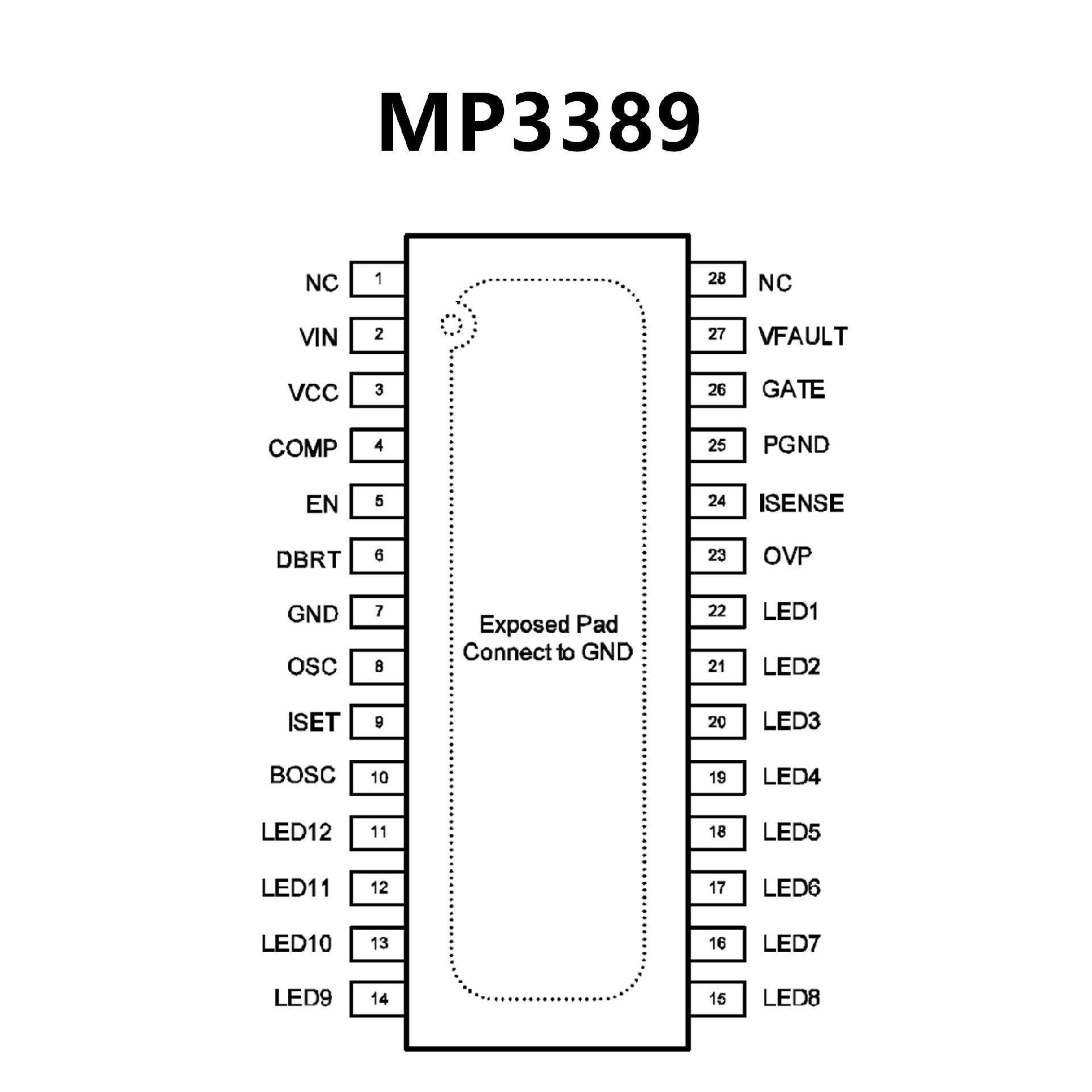

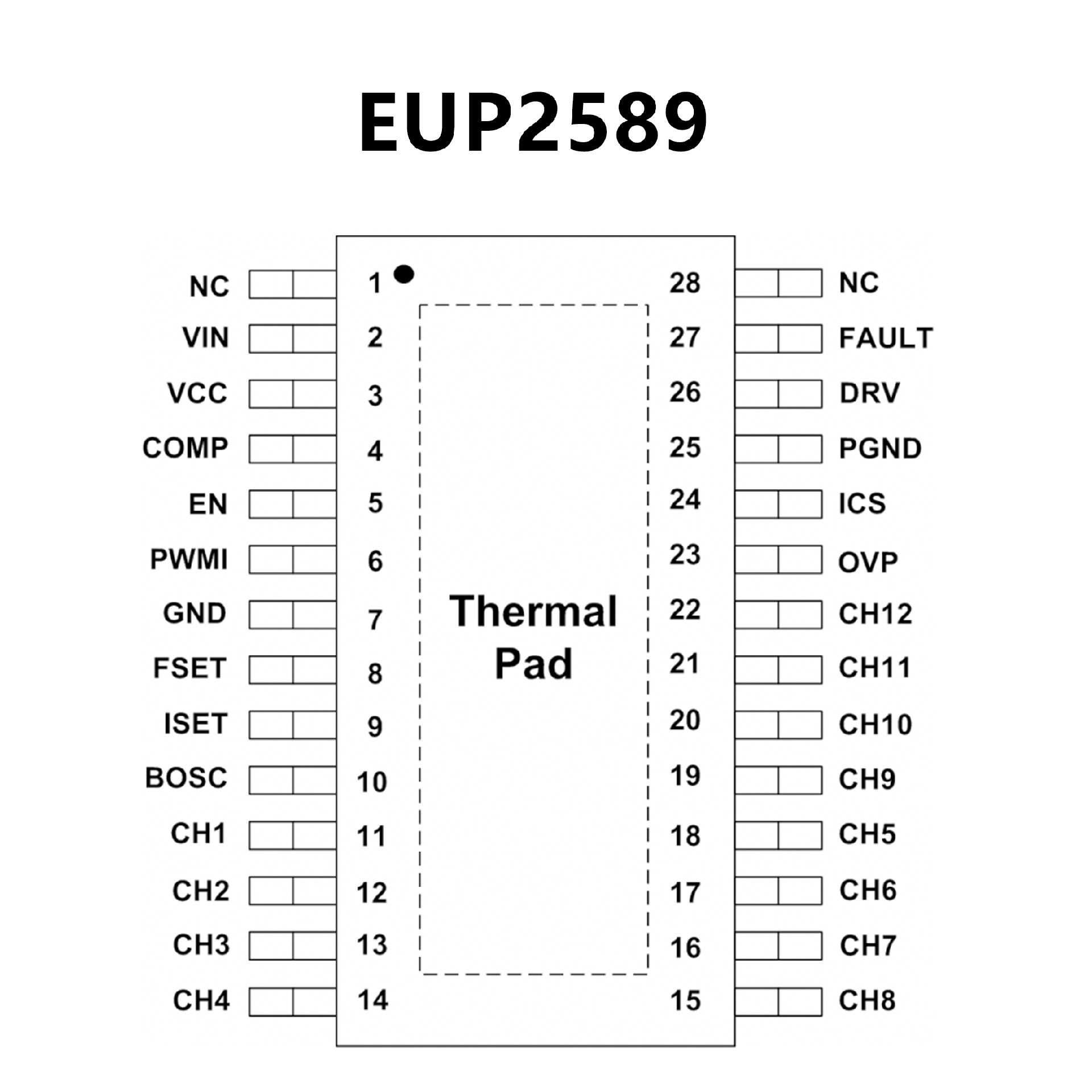

• Thermal Enhanced 28pin TSSOP28 Package

• RoHS Compliant and 100% Lead (Pb)-Free

  Halogen-Free
