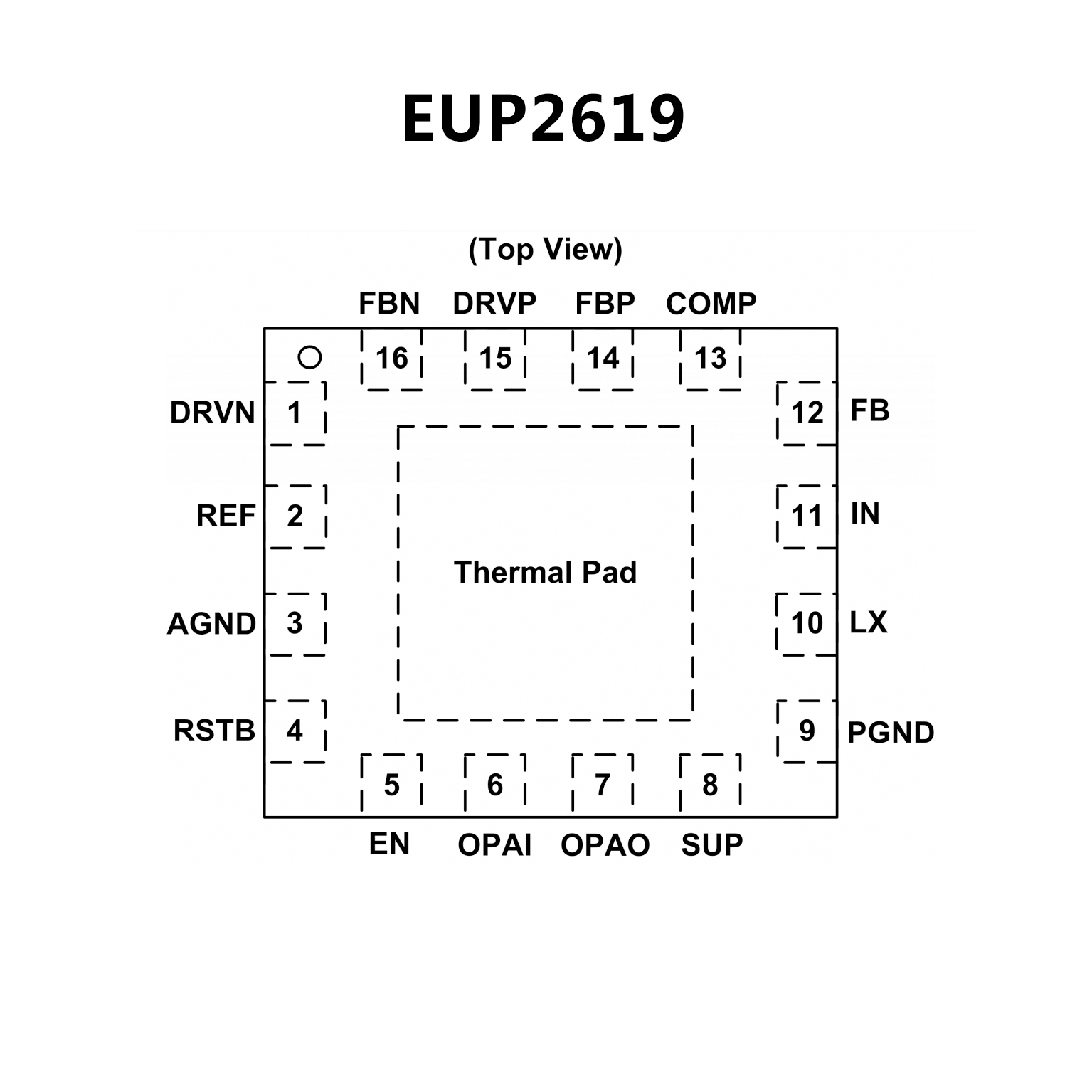

EUP2619.pdf• 2.5V to 5.5V Input Supply Range
• 1.2MHz Current-Mode Step-Up Converter
- Built-In 20V/2.8A, 0.16Ω N-Channel MOSFET
- High Efficiency Up to 90%
- ±1% Accurate Output Voltage
- Fast Transient Response to Pulse Load
- Over-Current Protection
- Output Under-Voltage Protection
• 600kHz Negative Charge Pump Driver for VGL
• 600kHz Positive Charge Pump Driver for VGH
• High Speed High Current 18V VCOM Buffer
- ±500mA Output Short-Circuit Current
- 45V/µs Slew Rate
- 20MHz, -3dB Bandwidth
- Rail-to-Rail Input and Output
• Power-On Sequence Control
• Thermal-Overload Protection
• 3mm×3mm TQFN-16 Package
• RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

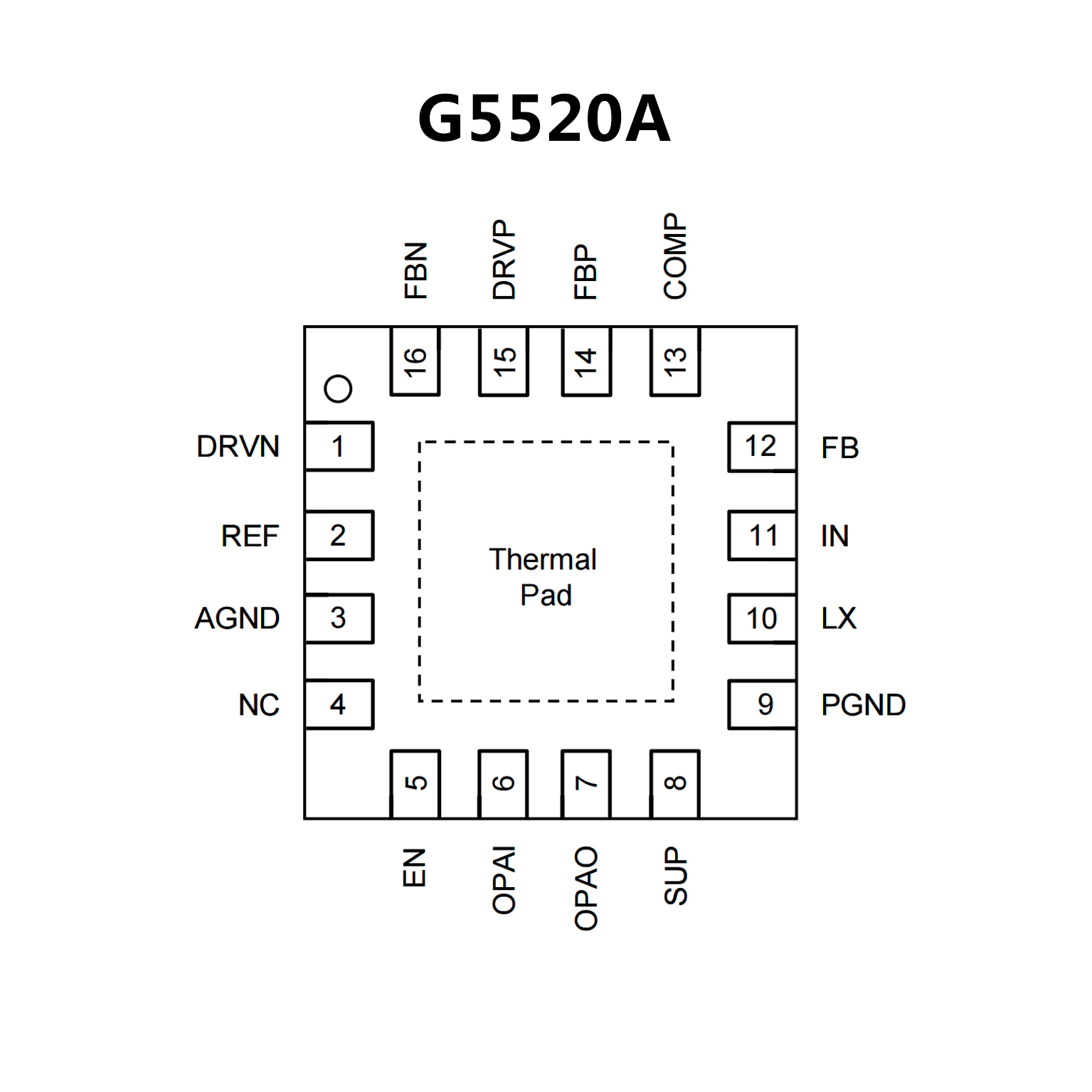

• 2.5V to 5.5V Input Supply Range
• Active-High Enable Control
• 1.2MHz Current-Mode Boost Regulator
- Fast Transient Response to Pulse Load
- ±1% Accurate Output Voltage
- Built-In 20V/1.8A, 0.7Ω N-Channel MOSFET
- High Efficiency up to 90%
- Over-Current Protection
- Output Under-Voltage Protection
• High-Performance Operational Amplifier
- ±150mA Output Short-Circuit Current
- 12V/μs Slew Rate
- 12MHz, -3dB Bandwidth
- Rail-to-Rail Input and Output
• 600kHz Negative Charge Pump Driver for VGL
• 600kHz Positive Charge Pump Driver for VGH
• Power-On Sequence Control
• Thermal-Overload Protection
• TQFN3X3-16 Package
