LED Backlight Controller with PWM to Analog Dimming Mode,EUP2950B Replace OB3353A.
EUP2950B
EUP2950B.pdf
EUP2950B.pdfFEATURES
• 9V to 30V Input Voltage Range
• Current Mode PWM controller with Good Dynamic
• Internal Soft-Start
• PWM to Analog Dimming Mode
• Over Voltage Protection
• Over Current Protection
• Under Voltage Lockout
• Thermal Shutdown Protection
• LED cathode short to GND Protection
• LED Open Protection
• SOP-8 Package
• RoHS Compliant and 100% Lead (Pb)-Free

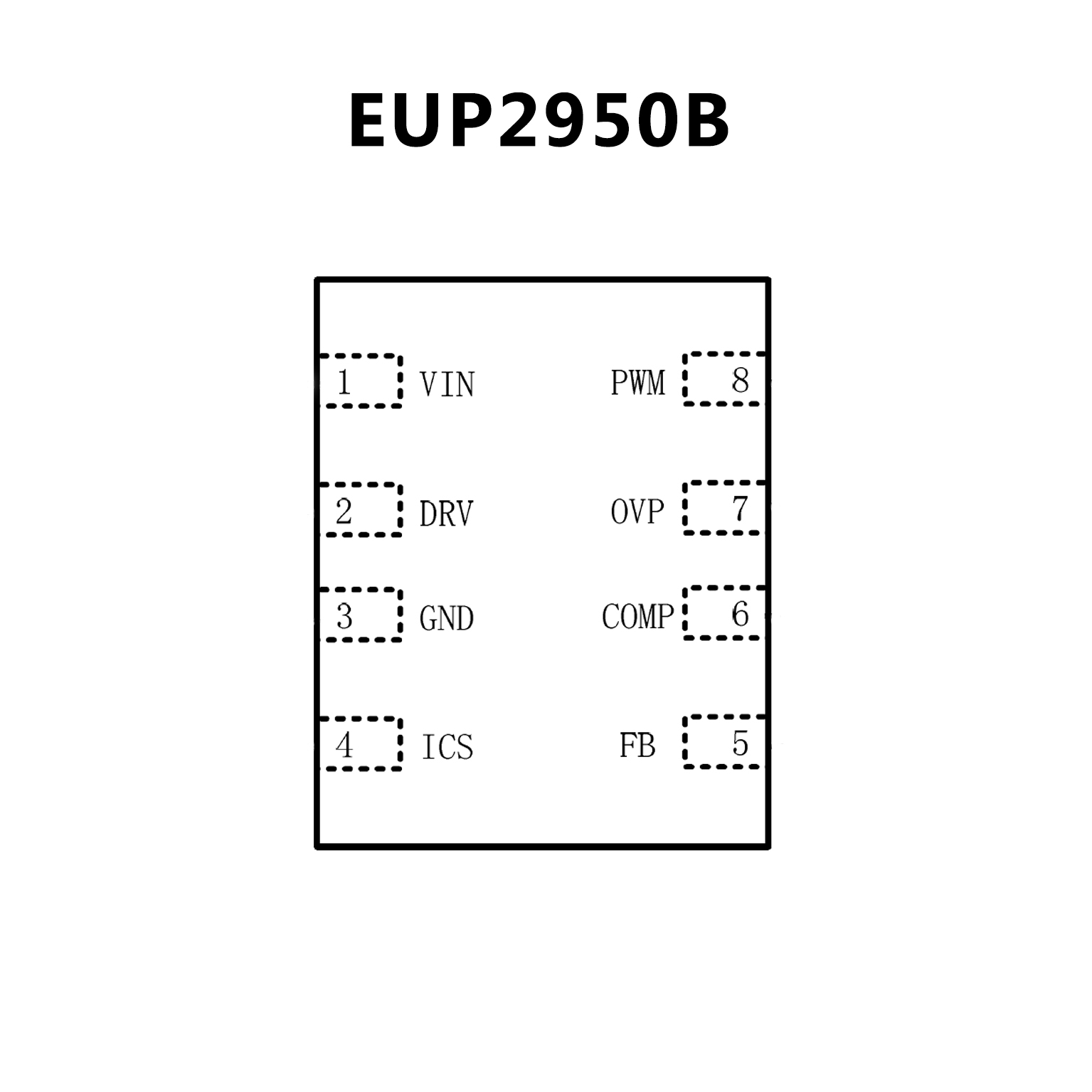

PIN CONFIGUTION
优势替代
FEATURES
• Current Mode PWM Controller With Good
Dynamic Response
• 9V to 30V Input Voltage Range
• PWM to analog Dimming Mode
• Over Voltage Protection
• Over Current Protection
• Under Voltage Lockout (UVLO)
• Thermal Shutdown
• Diode & Inductor Short Protection
• LED cathode short to GND Protection

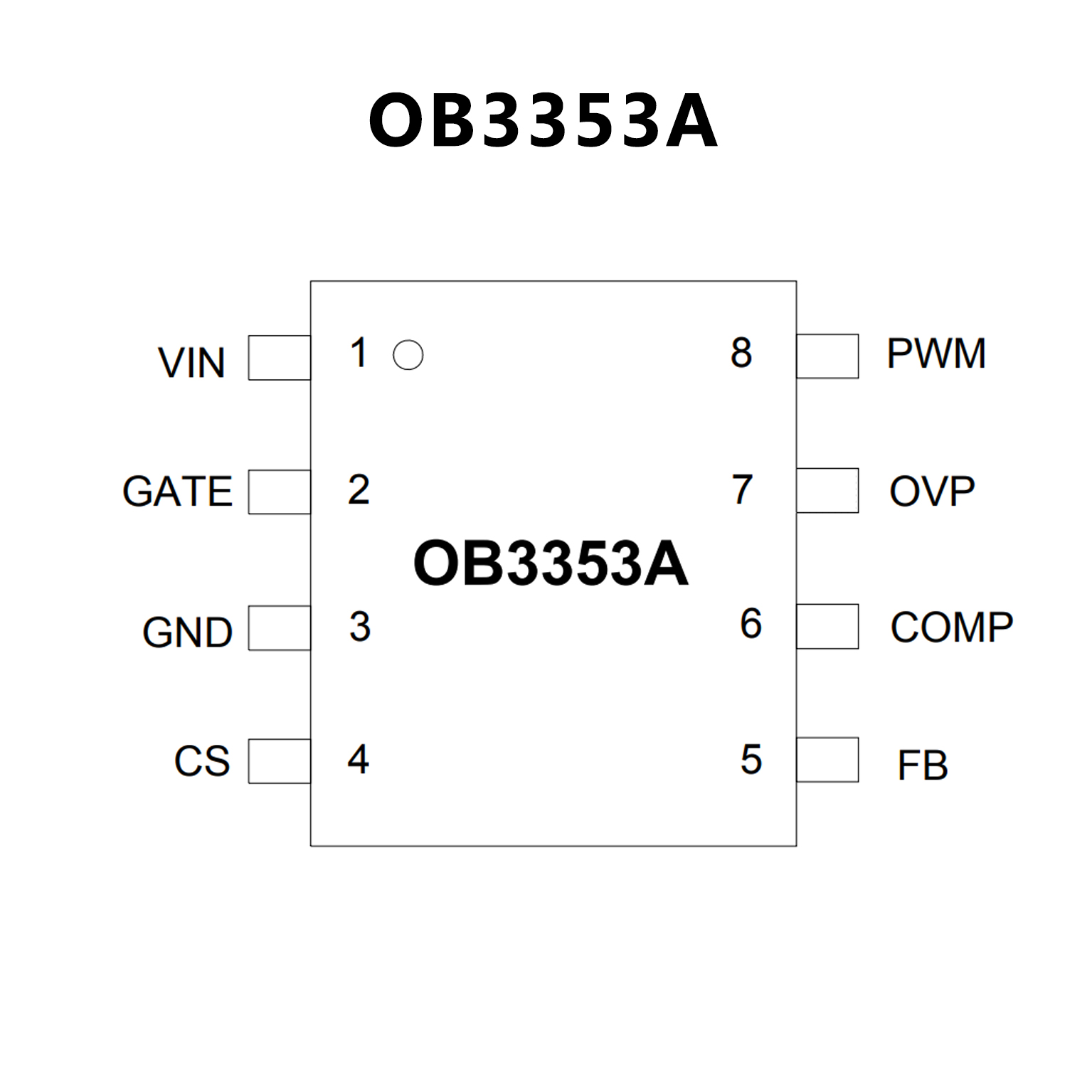

PIN CONFIGUTION
