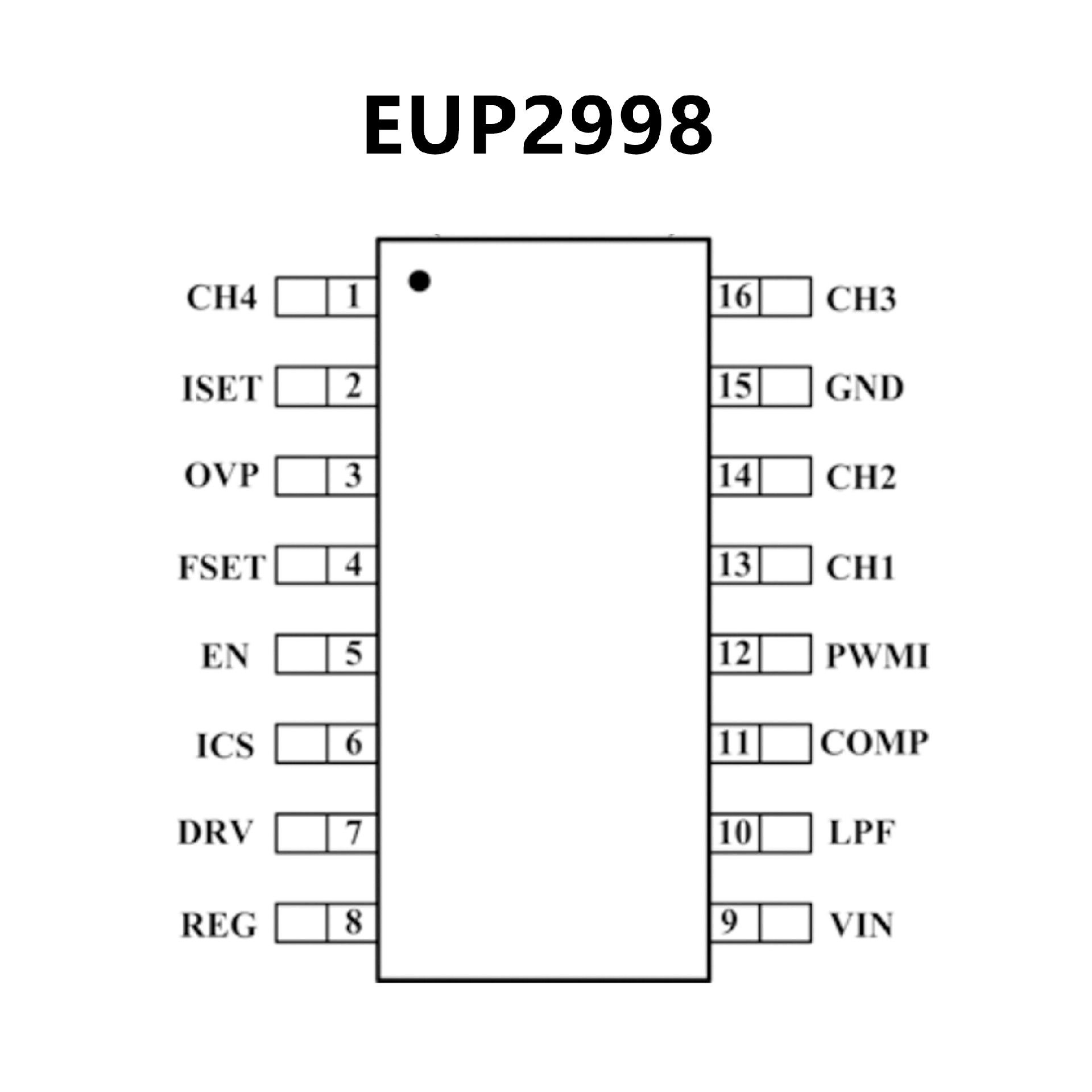

EUP2998.pdf• 8.5V gate driver
• 4 strings in parallel and up to 25 LEDs per
string
• Up to 240mA drive capability for each string
• Supports both Analog and Direct PWM Dimming
• Built in convert for converting external PWM
signal to analog dimming signal
• Output voltage up to 90V
• Boost Switching frequency can be programmed
by external resistor
• Wide Input voltage range 8V to 35V
• Better than 1.5% LED Current Regulation
Accuracy Between Strings
• Multiple Fault Protections
-Current Limit protection
-Output Short circuit detection
-Over-temperature protection
-Output Over-voltage protection
• LED current turn off in shutdown mode
• Support multiple-IC parallel operation
• Thermal Enhanced TSSOP-16L and SOP-16
Packages
• RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

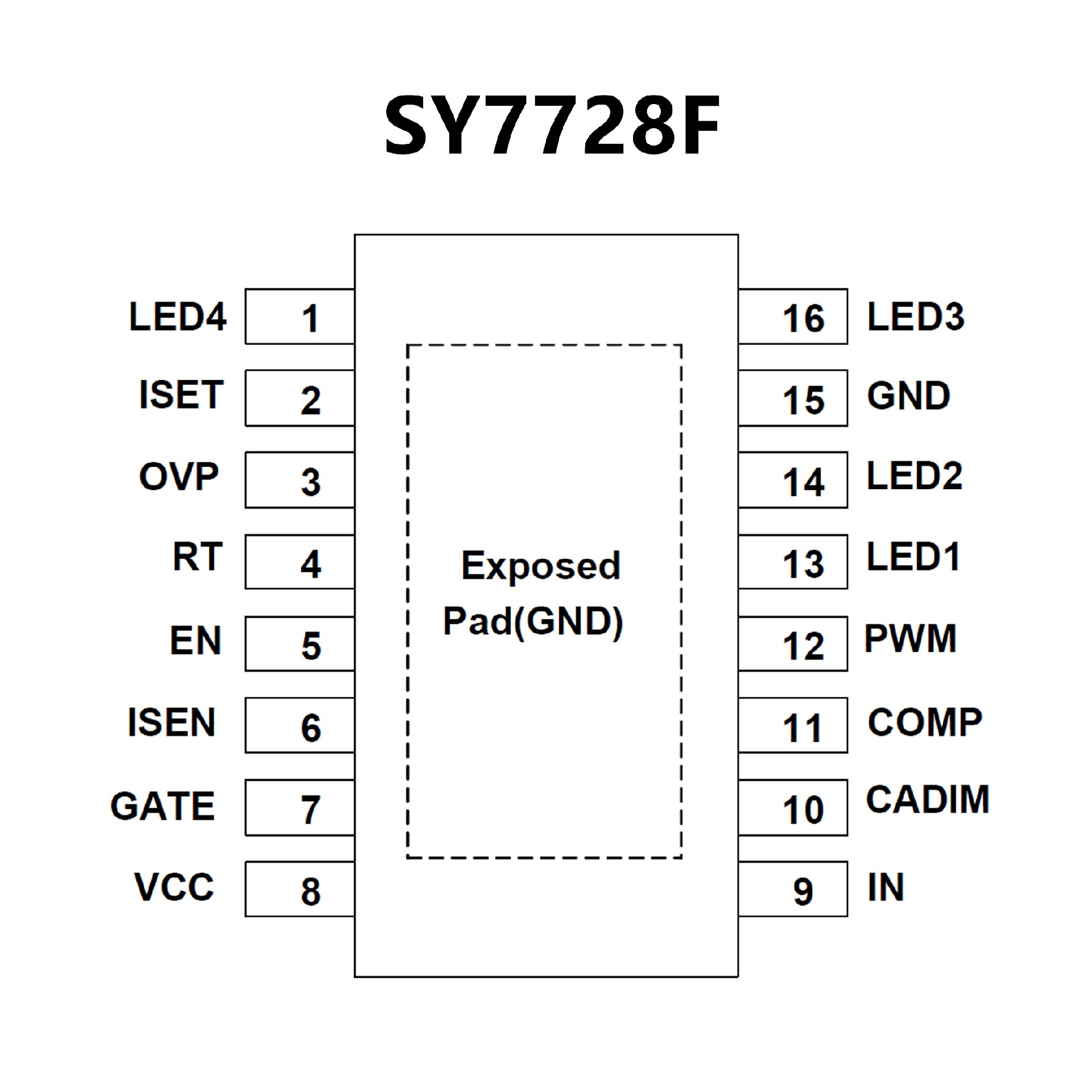

• 4.5-30V Wide Input Voltage Range
• Programmable 5mA~240mA LED Current per
String
• LED Current with +/-3% Accuracy at 100mA per
String
• PWM and Analog Mode Dimming: Dimming
Frequency: 100Hz~50 kHz
• +/-1% Current Matching Among Strings at 100mA
per String
• Programmable Switching Frequency,100kHz-1MHz
• Internal Soft-start
• Open and Short LED Protection
• Programmable over-voltage Protection
• RoHS Compliant and Halogen Free
• Compact Package: SOP16E&SOP16
