• High Efficiency up to 95%

• Low RDSON for internal switches:

  High-side: 100mΩ

  Low-side: 60mΩ

• 2.7V to 5.5V Input Voltage Range

• 3A Available Load Current

• 30µA Typical Quiescent Current

• 1MHz Constant Switching Frequency

• Adjustable Output Voltage as Low as 0.6V

• 100% Duty Cycle Low Dropout Operation

• Short Circuit and Thermal Protection

• Excellent Line and Load Transient Response

• Soft Start Function

• Power Good

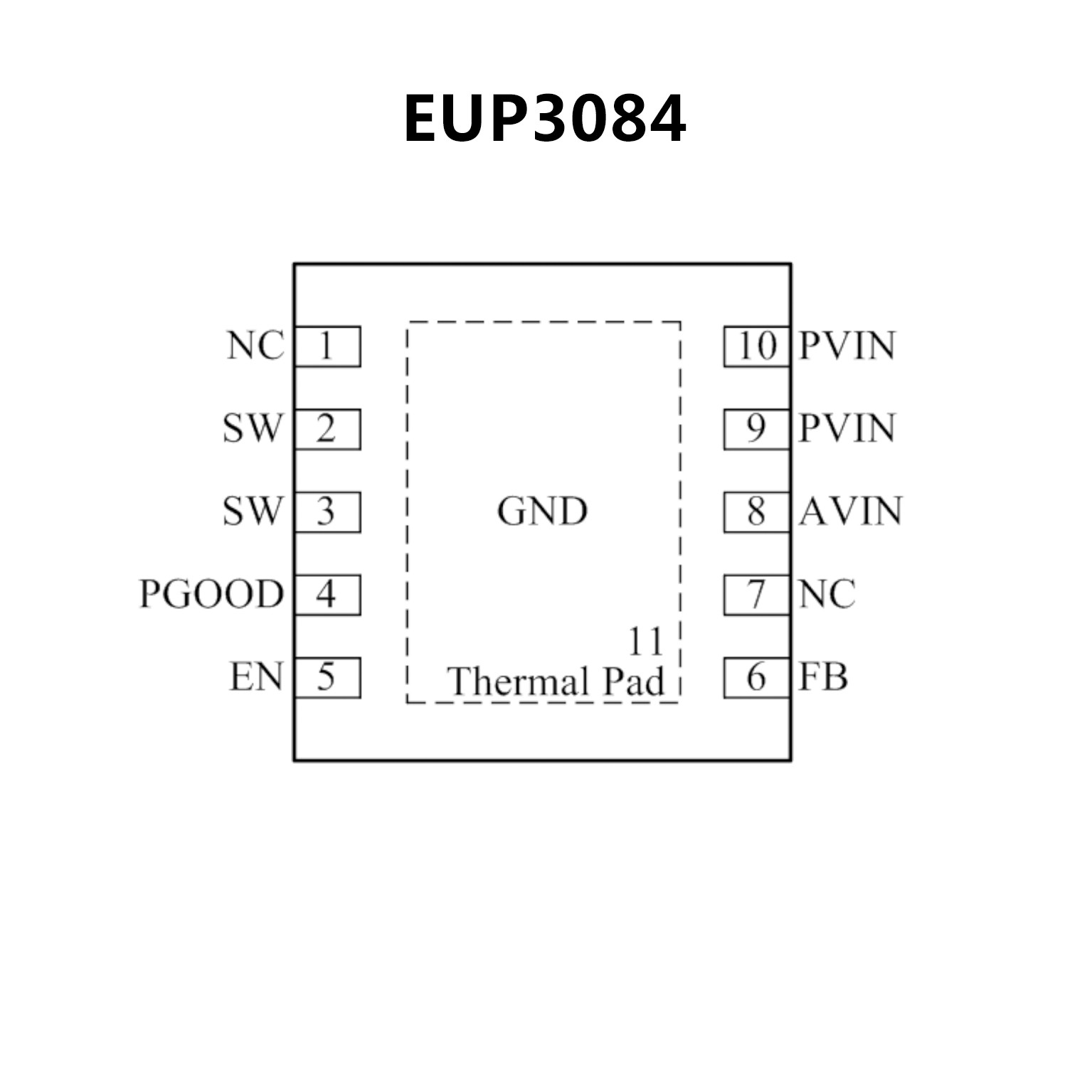

• Available in TDFN-10L(3×3) Package

• RoHS Compliant and Halogen-Free
