3A, 1MHz, Synchronous Step-Down Converter, EUP3226 Replace RT8068A.
EUP3226
EUP3226.pdf
EUP3226.pdfFEATURES
• 2.7V to 5.5V Input Voltage Range
• High Efficiency up to 96%
• 3A Available Load Current
• 69/45mΩ Integrated PFET/NFET Switches
• 1MHz Switching Frequency
• 100% Duty Cycle Low Dropout Operation
• Short Circuit and Thermal Protection
• Integrated UVLO and Power Good
• Excellent Line and Load Transient Response
• Available in 10-Pin 3mm× 3mm TDFN Package
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

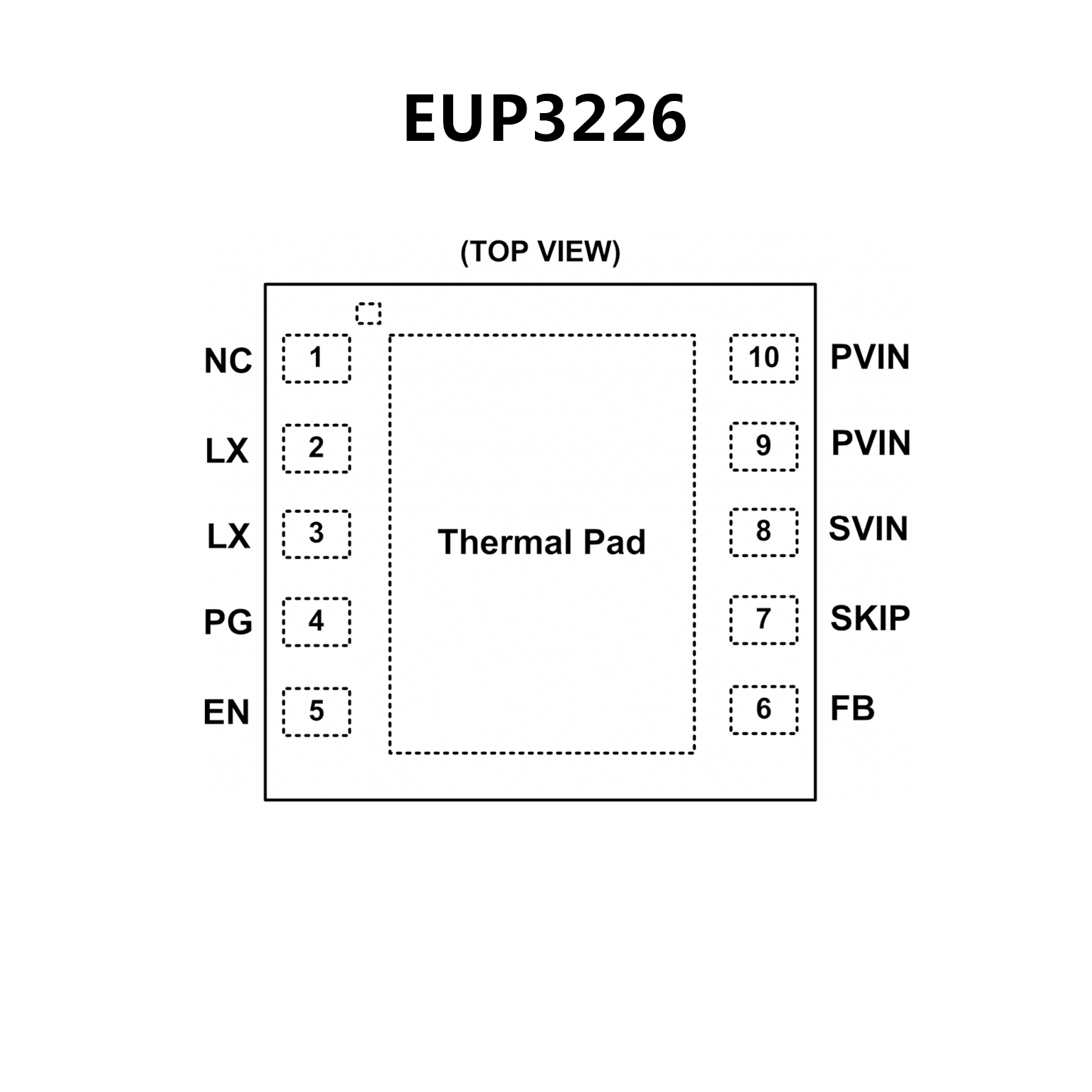

PIN CONFIGUTION
优势替代
FEATURES
• High Efficiency : Up to 95%
• Low RDS(ON) Internal Switches : 69mΩ/49mΩ at VIN= 5V
• Fixed Frequency : 1MHz
• No Schottky Diode Required
• Internal Compensation
• 0.6V Reference Allows Low Output Voltage
• Low Dropout Operation : 100% Duty Cycle
• OCP, UVP, OVP, OTP
• RoHS Compliant and Halogen Free

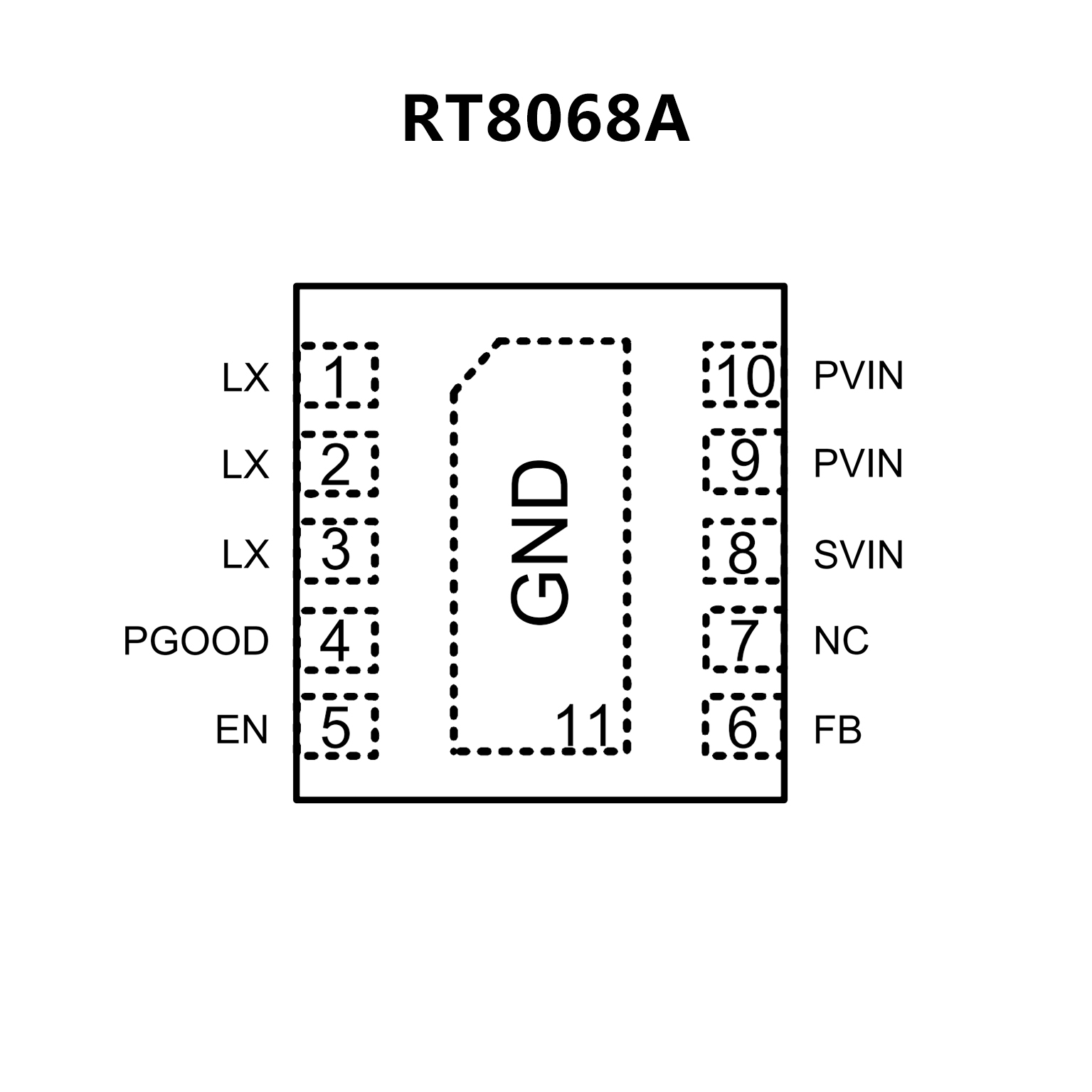

PIN CONFIGUTION
