USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace FP6861.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
• 70mΩ(typ.) Power MOSFET
• Operating Range : 2.7V to 5.5V
• Under Voltage Lockout
• 17µA Quiescent Current
• 1µA Maximum Shutdown Shutdown Current
• No Reverse Current when Power Off
• Fault Blanking Open-Drain Over-Current Flag
Output OCB
• Output Shutdown Pull-low Resistor
• Available with 3 Versions of Current Limits with
Foldback.
• Enable Active-High or Active-Low
• Available in SOT23-5 and MSOP-8 Packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

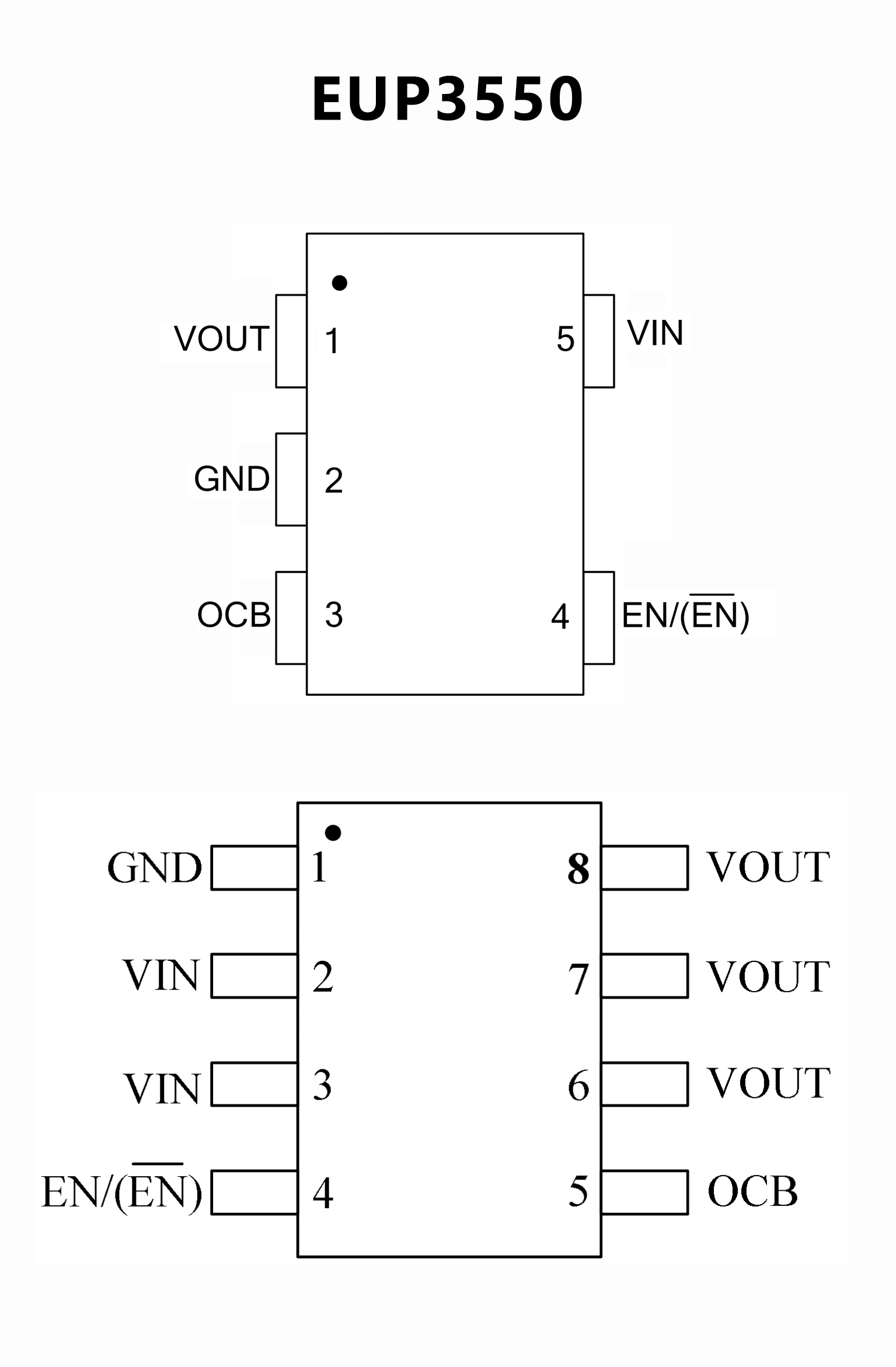

PIN CONFIGUTION
优势替代
FEATURES
• Compliant to USB Specifications
• Built-In Low RDS(ON) N-Channel MOSFET
• Output can be Forced Higher than Input (Off-State)
• Wide Input Voltage Ranges: 2.7V to 5.5V
• Open-Drain Fault Flag Output
• Hot Plug-In Application (Soft-Start)
• 2.2V Typical Under-Voltage Lockout (UVLO)
• Current Limit Protection
• Thermal Shutdown Protection

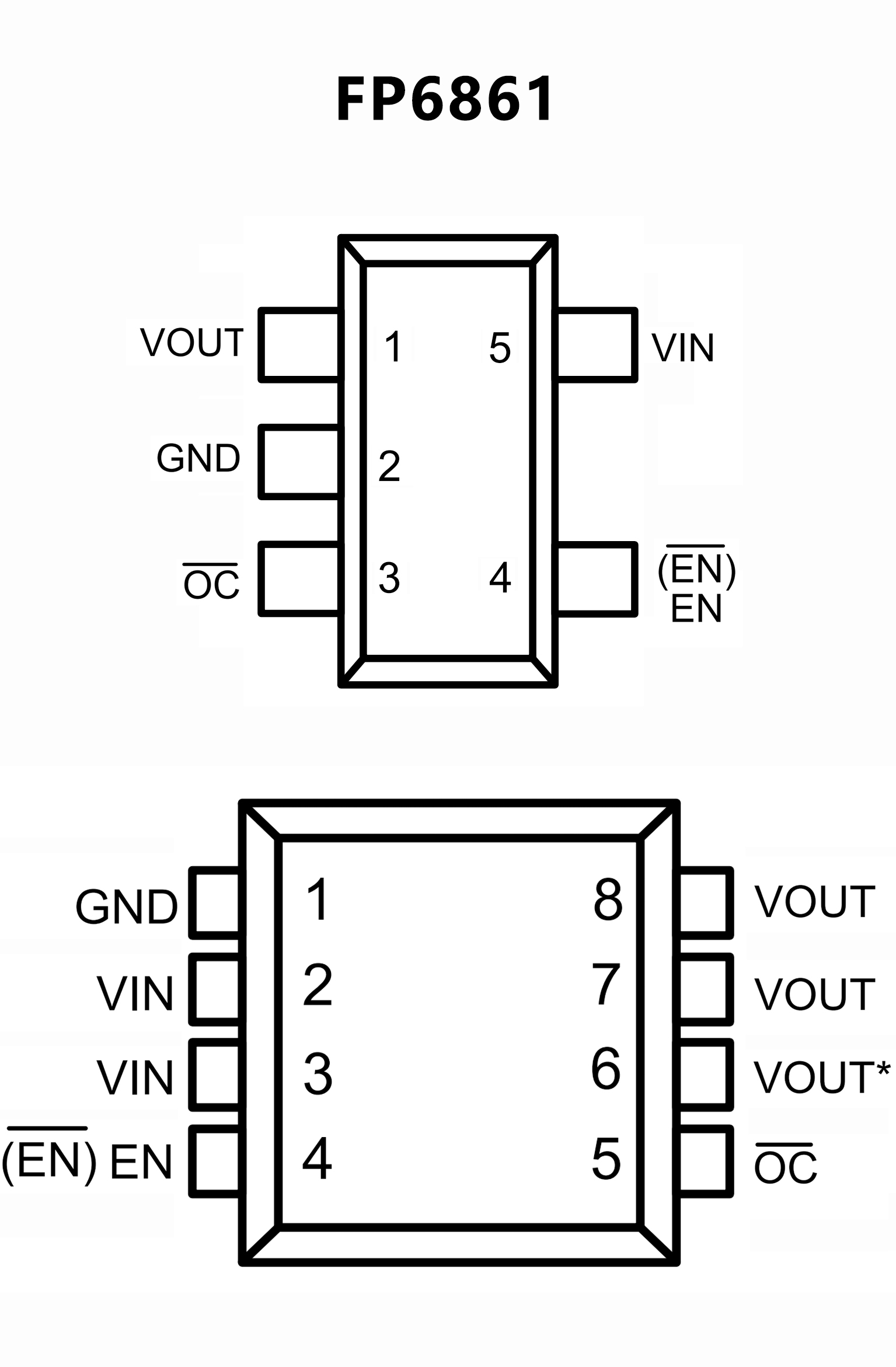

PIN CONFIGUTION
