EUP7998.pdf• VLDOIN Input Voltage Range: 1.1V to 3.5V
• VIN Input Voltage Range: 2.375V to 5.5V
• Typically 3×10μF MLCCs stable for DDR
• Fast Load-Transient Response
• ±10mA Buffered Reference (REFOUT)
• Meet DDR, DDR2 JEDEC Specifications.
Supports DDR3 and Low-Power DDR3/DDR4
VTT Applications
• Power-Good Window Comparator
• With Soft Start, UVLO and OCP
• Thermal Shutdown

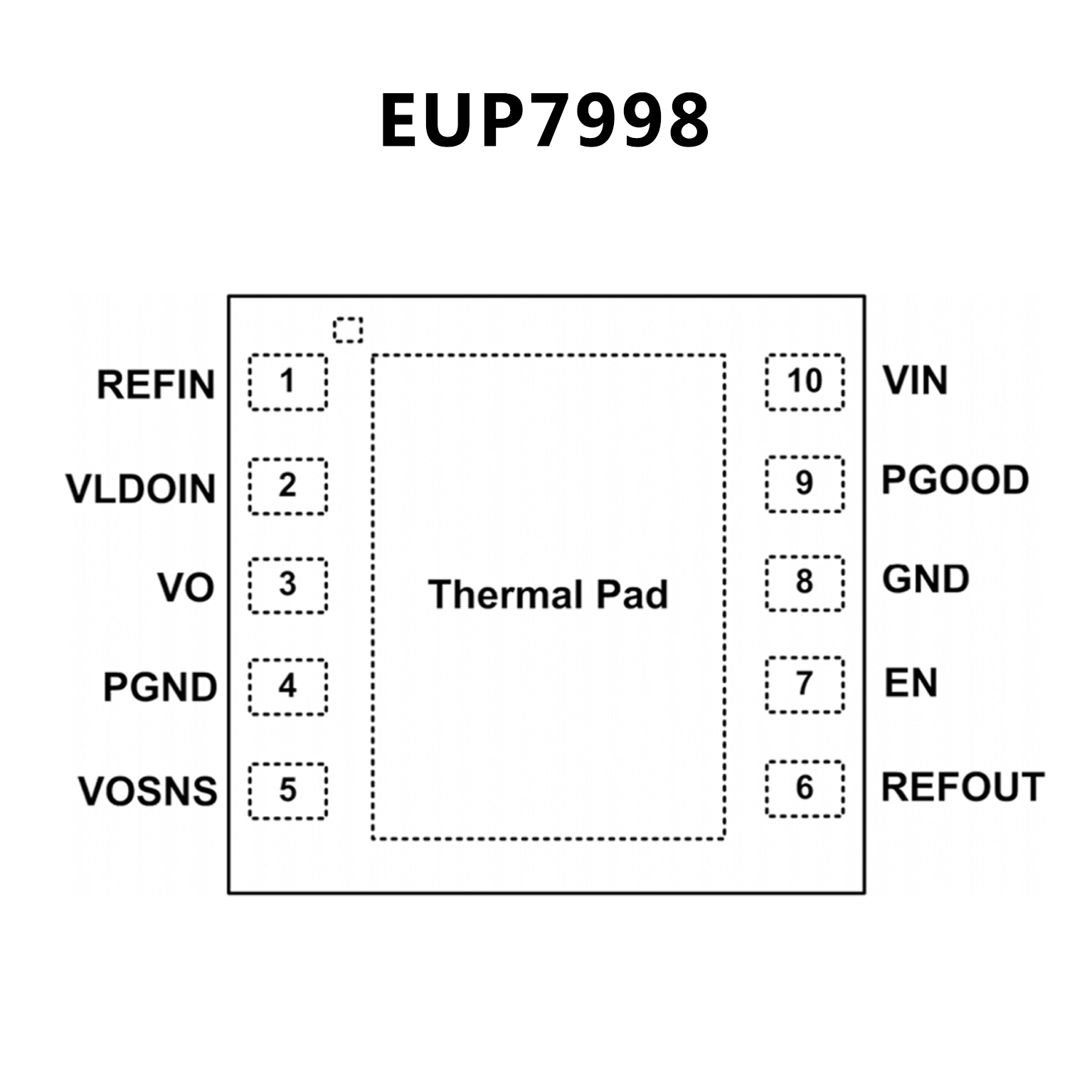

• Available in 10-Pin 3mm×3mm TDFN and
SOP-8 (EP) packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
• Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
• VLDOIN Voltage Range: 1.1 V to 3.5 V
• Sink and Source Termination Regulator Includes
Droop Compensation
• Requires Minimum Output Capacitance of 20-μF
(Typically 3 × 10-μF MLCCs) for Memory
Termination Applications (DDR)
• PGOOD to Monitor Output Regulation
• EN Input
• REFIN Input Allows for Flexible Input Tracking
Either Directly or Through Resistor Divider
• Remote Sensing (VOSNS)
• ±10-mA Buffered Reference (REFOUT)
• Built-in Soft Start, UVLO, and OCL
• Thermal Shutdown
• Supports DDR, DDR2, DDR3, DDR3L, Low-
Power DDR3, and DDR4 VTT Applications

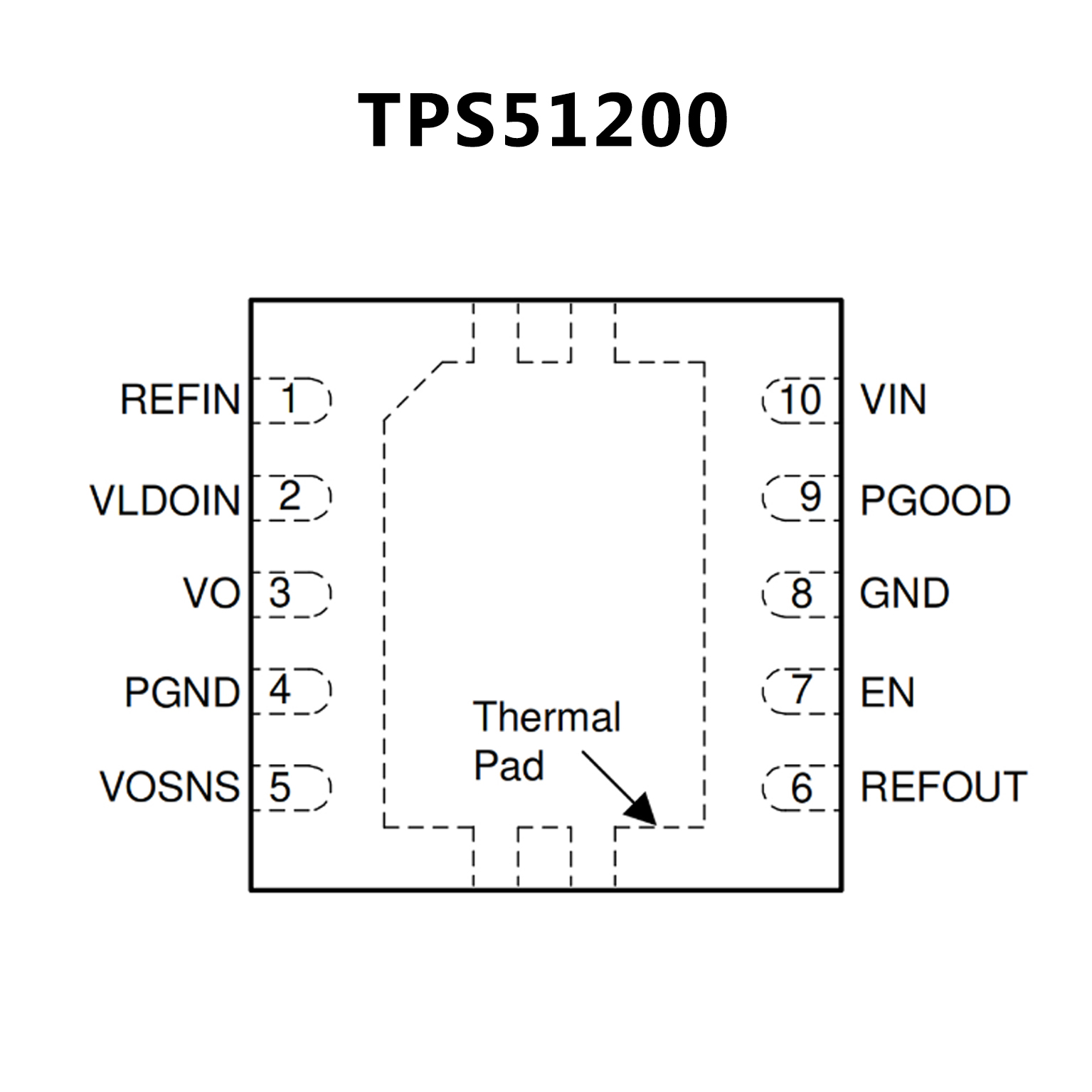

• 10-Pin VSON Package With Thermal Pad
