Gate resistor installed Dual N-channel MOS FET, GS95A0CS-R Replace FC4B22070L.
GS95A0CS-R
GS95A0CS-R.pdf
GS95A0CS-R.pdfFEATURES
• Input Voltage up to 24V
• MOSFET Turn on Resistor RSS(ON)
=18mohm(Max)@Vgs=4.5V
• Drain to Drain MOSFET Module
• With ESD Protection
• Continuous Current=9A
• Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

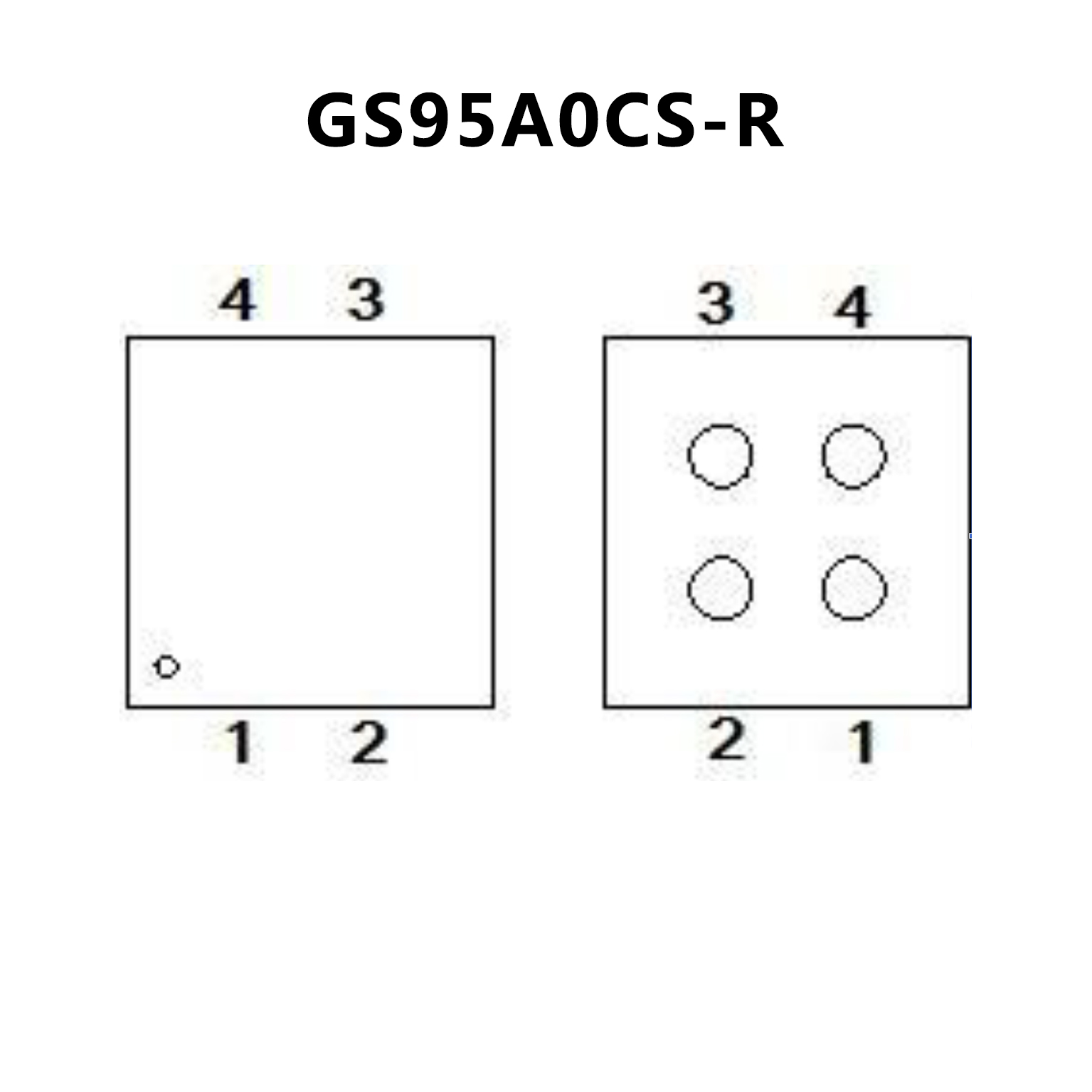

PIN CONFIGUTION
优势替代
FEATURES
• Low source-source ON resistance:Rss(on) typ. = 17.5 m Ω（VGS = 4.5 V)
• CSP package:smallest & thinnest size
• RoHS compliant (EU RoHS / MSL:Level 1 compliant)

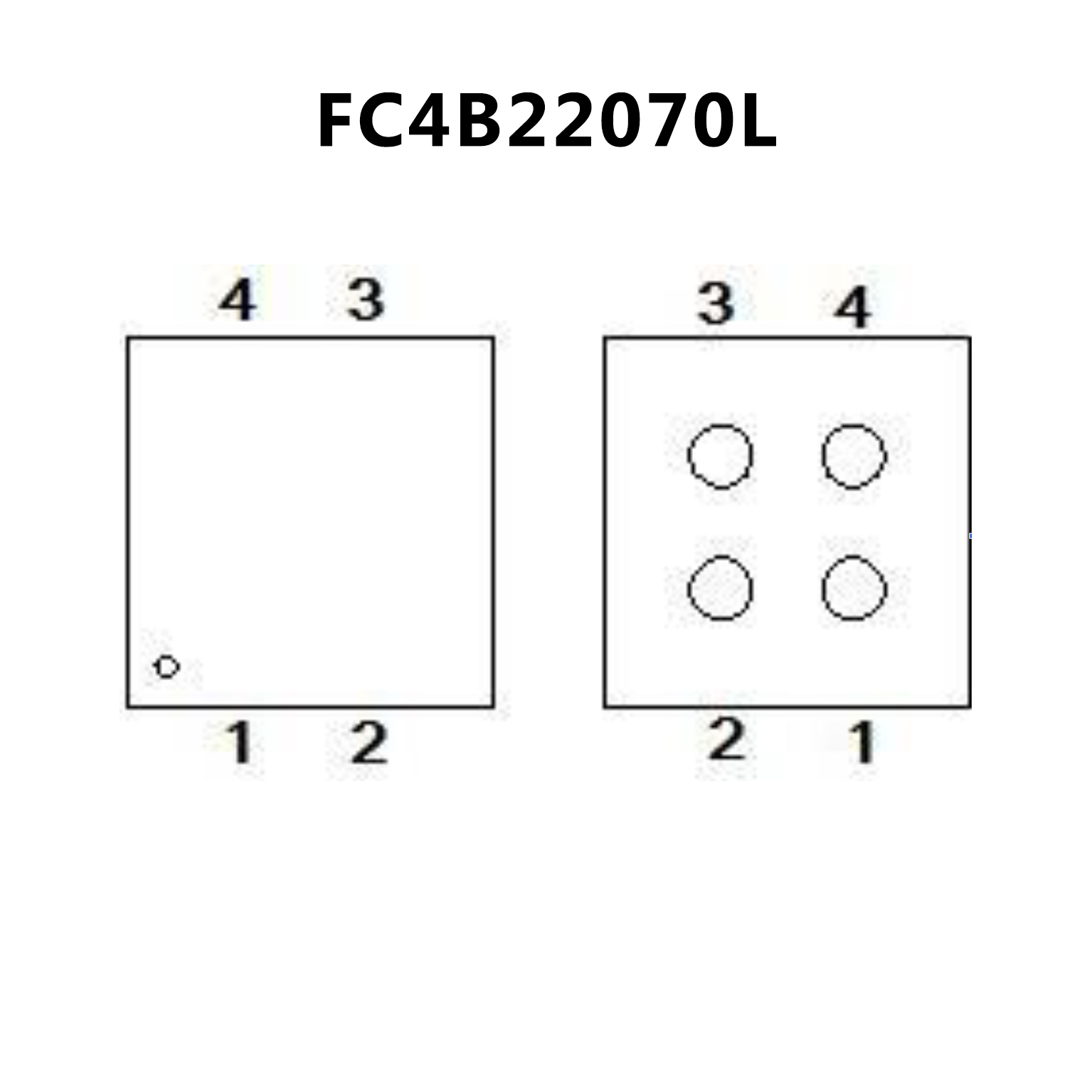

PIN CONFIGUTION
